Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine
Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine
Specifications
Brand Name :
Sayok
Model Number :
SN-320P
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
EXW US$6800- 9800/set
Payment Terms :
T/T,
Supply Ability :
100 set /month
Delivery Time :
15 working days
Packaging Details :
Exported wooden case
Attitude :
New
Applicable industries :
Powders of medicine, food, chemical or comestic industry
Bag types :
premade pouches, zipper bag, flat bag, hanging bags etc
Bag requirements :
9mm or thicker, zipper bag need pre-opened
Feeding way :
Vertical Screw Powder Dispenser / Feeder
Controller :
PLC Controller
Filling Range :
1-500g
After Warranty Service :
1 year for mail electric parts
Description

Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine
1. It equiped with perfect powder vertical screw feeder, which can realize the filling at the place where the screw head extends into the bag opening, effectively prevent the dust issue, and then improve the packing efficiency.
2. Applications: suitable for all kinds of measurement powder packing of medicine, food, chemical and comestics industry, etc.
3. It adopts of touching screen operation, PLC control. Drive stepper motor to control the bag length. Stable performance and easy to adjust & accurate detection. Use intelligent temperature controller and PID control to ensure temperature tolerance within 1 degree.
4. Suitable for many bag sizes from 9*13cm to 18*26cm, flat bag, zipper bag, hanging bag, doypack etc and special shape pouches. Big compatible pouch types and size ranges.

Features:

  • Bag Storage Area: This is where the pre-made bags are stored in bulk. It is usually a hopper or a compartment that can hold a large number of bags in a stack or array.
  • Bag Feeding Mechanism: The core part of the machine. The tipping bucket is a key component. It is designed to hold a single bag at a time. When the machine operates, the bucket tips to release the bag onto a conveyor belt or into a holding area for further processing. The bucket is typically equipped with a suction cup or a gripper to ensure the bag is securely held and accurately positioned.
  • Control Panel: This is the interface for operators to set and monitor the machine’s operation. It includes buttons, switches, and a display screen. Operators can adjust parameters such as the speed of the tipping action, the frequency of bag release, and the position of the bag on the conveyor. The control panel also shows error messages and status indicators to help with troubleshooting and maintenance.

Specifications:

Model

SN-320P

Air Pressure

0.6-0.8MPa/0.83m³/min

Bag Storage Capacity

450 bags

Min. Bag size

60*90 mm (W*H)

Max. Bag size

180*260 mm (W*H)

Bag Thickness

10 Mil or over

Packing speed

10-30 bags/min

Machine size

980*650*1000 mm (L*W*H)

Packed Dimension

Host - 1100*800*1650mm/150kg

Bucket Chain Conveyor 1800*400*350/60kg

Machine weight

140kg

Power voltage

AC 220V,50/60HZ,860W

Bag type

Premade Pouch, flat bag or zipper bag

Machine Details:

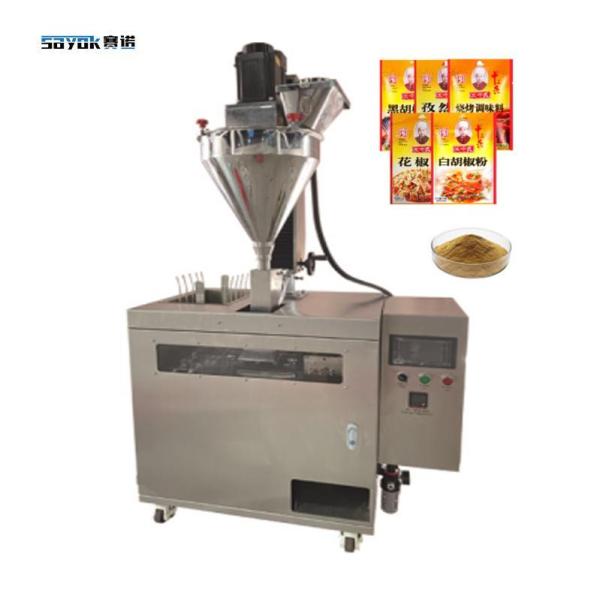

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

 Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine

2.Compact Design

all deails are refined treatment according to products to make sure smoothly operating, feeding, opening, filling, sealing etc.

 Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine

3. Multi-functional customized mechanical devices enjoy quality service, the feeding hopper is customized according to the products to make sure no jamming issue.

Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine

4. Big Bag Storage Cabin

Can store 400+ bags, save time to change bags.

 Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine

5. Packaging

we adopt wooden case as package type. It's suitable for long-distance transport.

 Seasoning Powder Automatic Filling Sealing Premade Pouch Bagging Machine
