OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
Specifications
Brand Name :
Sayok
Model Number :
SN-190
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
EXW US$6900 -15000/set
Payment Terms :
T/T
Supply Ability :
50 set /month
Delivery Time :
15-30 working days
Packaging Details :
Exported wooden case
Function :
FILLING, Wrapping, Sealing
After-sales Service Provided :
Provided
Condition :
New
Key Selling Points :
Easy to Operate
Bag shape :
Square Bag
Application :
Medical
After-sales service :
Video technical support
OEM/ODM :
YES
Description

Custom Single, Dual -Way, Three Roads High-Speed Condom Packaging Machine

Supply Condom Latex Condom Packing Equipment Line Four Side Sealing Packaging Machine

The condom packing machine automatically puts the condom in the designated position on the material mould, pulls out a certain length according to the length of the bag and stops. Then the mould closes the long heat-sealing edge, puts the condom into the packaging bag, closes the short heat-sealing edge of the mould, and cuts by knife at the same time. This cycle starts again and then proceeds to the next action.

Features

1.Imported transmission clutch parts using international brands, stable work, less noise, and high work efficiency.

2.Product packaging sealing embossing: Can be customized by the customer’s requirement.

3.Material size:30*70mm,55*55mm,58*58mm, or any size within the scope.

4.This condom packing machine is suited for different material BO film, packaging composite membrane (double layers, three layers or aluminum film).

Specifications:

Model

SN-190
Suitable Material Suitable Material
Packing Speed

40-100 bags/min
Packing Size

L*W 65-330mm*30-110mm
Power Supply 220 50/60Hz
Power 2.5KW
Machine size 4000x720x1600mm
Feeder 4100*820*1700mm
Machine Weght Approx 600kg

Air consumption

≥30m3/h (self-provided), pressure: 0.6-0.8Mpa
Degree of automation Automatic
Processing customization Customized processing is available
Material Type Solid
Applicable objects Condom, latex finger cot or other small latex products.

Machine Details:

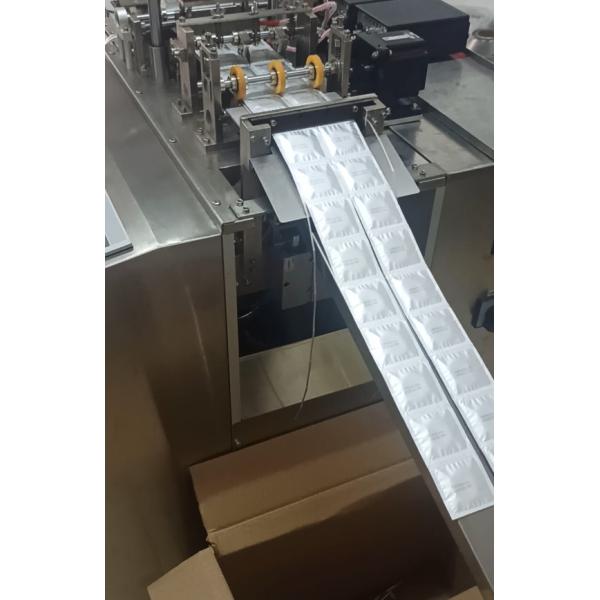

1. Packaging machine appearance

It can realize the one-step process of material release, packaging and sealing and cutting

 OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

2.With the function of benchmarking packaging

The packaging is more beautiful, and the brand level is improved (applicable to the benchmarking function models);

 OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

3. Conveyor device

operating platform cassette positioning conveyor belt device

 OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

4.Fully automatic sealing and cutting

The sealing and cutting shrinkage is completed in a single pass, realizing unmanned automatic operation.

 OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine

5. Self-locking gimbal

Move at any time as required, press to self-lock and lock at any time

 OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
6.Applications of Automatic Condom Packing Machine

OEM Automatic Latex Condom Packing Equipment Four Side Sealing Packaging Machine
