Specifications
Supply Ability :
1000 Units
Payment Terms :
L/C,T/T,Western Union
Warranty :
1 year warranty
Place of Origin :
China
Packaging Details :
Plastic, wooden cases
Weight :
300KG
Model Number :
PL-240YJF
Power :
2KW
Delivery Time :
10-20 days
Bag size :
L40-160mm; W20-100mm
MOQ :
1
Price :
5200-7200$USD
Product name :
Automatic round corner powder packing machine
Certification :
CE, SGS, TUV
After-sale Service :
life-time technical support, online support, spare parts suppliment
Dimension :
L800*W960*H2050 mm
Measuring range :
1-50g
Brand Name :
Penglai
Packing speed :
25-60bags/min
Voltage :
220V, 50Hz
Description
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner
Round Corner Sachet Powder Packing Machine
This advanced packaging machine is specifically designed for powder products with poor fluidity across various industries including food, daily chemical, pesticide, and pharmaceutical sectors. Ideal for packaging: freeze-dried powder, protein powder, gastrodia elata powder, kudzu root powder, dendrobium powder, panax notoginseng powder, whole grains powder, meal replacement powder, milk shake powder, Ganoderma lucidum powder, bear bile powder, milk powder, coffee powder, rice powder, soybean milk powder, food additives, solid beverage powder, and other powdered materials.
Technical Specifications
Model / 型号 PL-240YJF
Measuring Range / 计量范围 1-50g
Bag Size / 制袋尺寸 Back Center Seal: Length: 40-160mm; Width: 20-100mm
Side Seal: Length: 40-160mm; Width: 20-100mm

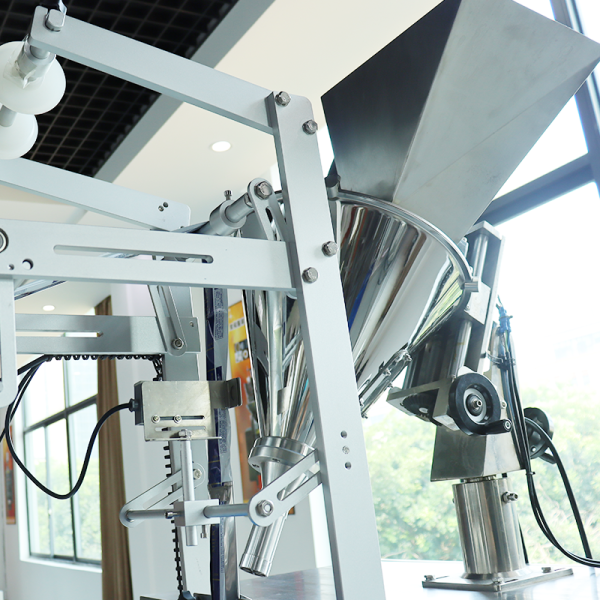

Dosing Method / 计量方式 Screw Feeder
Voltage / Power 220V 50-60Hz / 2KW
Control System / 控制系统 PLC Control System
Speed / 包装速度 25-60 bags/minute
Bag Type / 封装形式 Back Seal / Side Seal
Dimensions / 外形尺寸 L800 × W960 × H2050 mm
Weight / 重量 300KG
Packaging Material / 包材要求 Compatible with composite packaging films such as BOPP/PE/PET and any heat sealing laminated film
Key Features & Advantages
  • Complete automated packaging process including filling, metering, bag making, sealing, cutting, hot pressing, and batch numbering

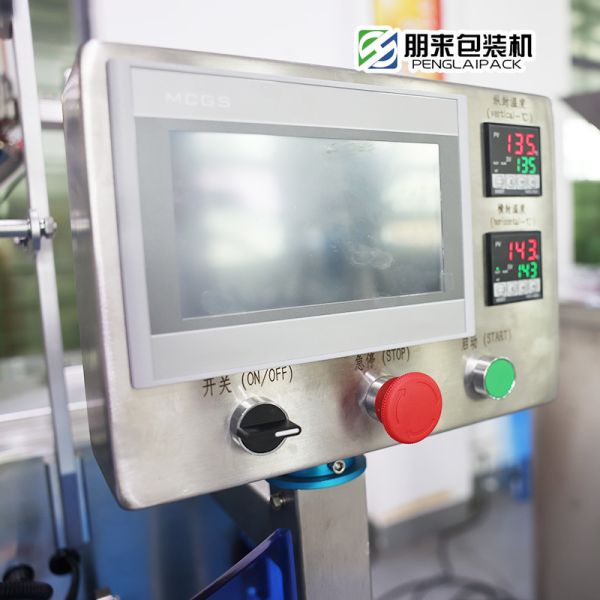

  • Intelligent control system with Chinese and English LED display for precise parameter setting and system operation control

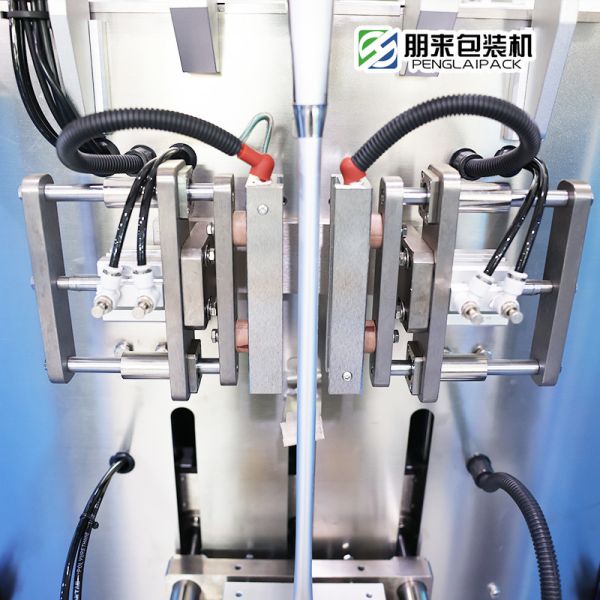

  • Advanced heat sealing technology with separately adjustable upper and lower heating elements for uniform bag edge sealing

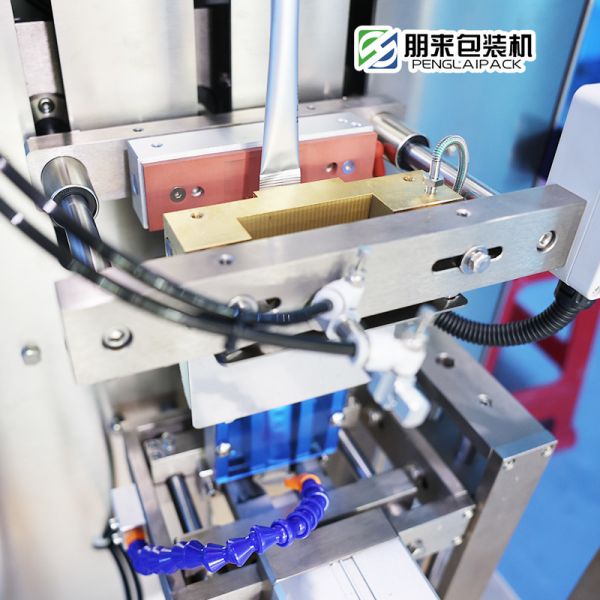

  • Versatile cutting capabilities including in-line, pattern-shaped, rounded corner, and joint cutting with stable, reliable operation

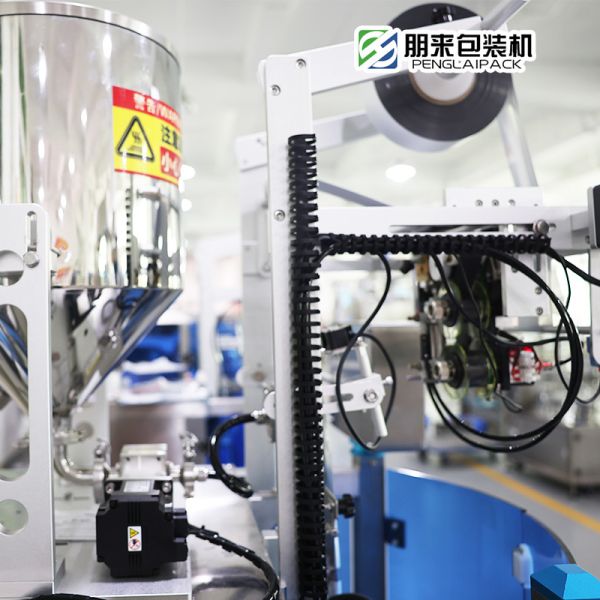

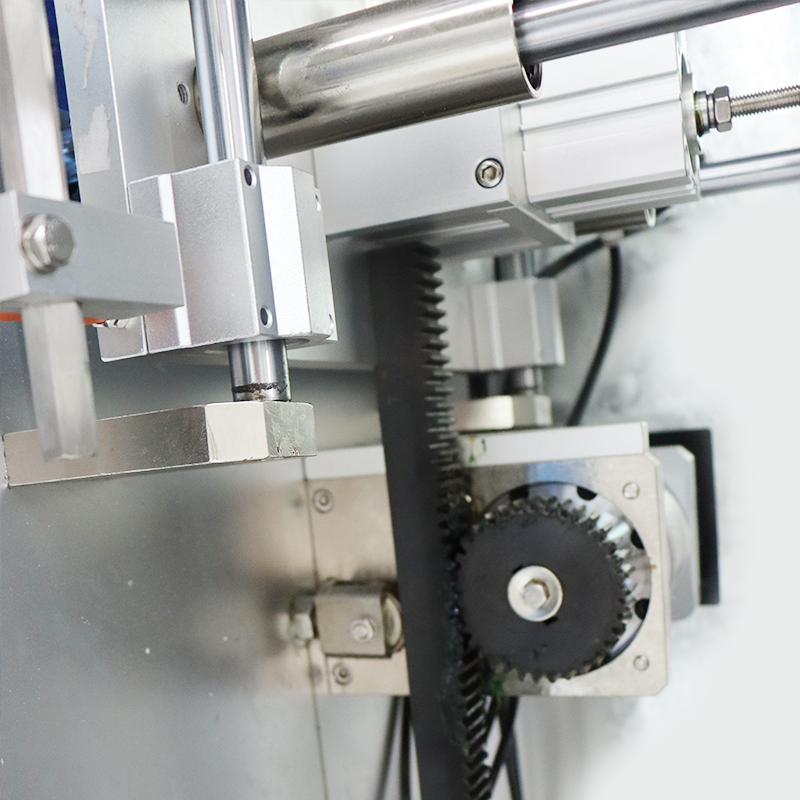

  • High-speed servo motor and driver system for accurate and fast film pulling with beautiful bag formation

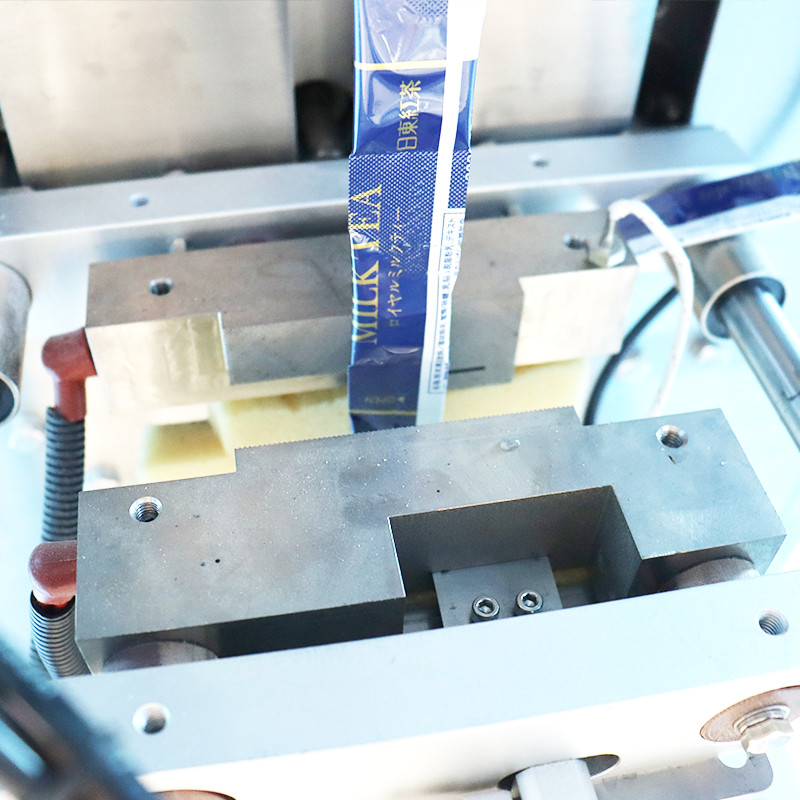

  • Customizable bag shapes through specialized punching knives and horizontal sealing molds
  • Flexible loading capacity with rounded corner design and adjustable bag length settings for different grammages
  • Premium 304 stainless steel chassis construction for durability and hygiene
  • High compatibility with different specifications achievable through mold changes
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
High Speed Servo Film Pulling Powder Packing Machine with Rounded Corner Factory Direct For Sale 25-60 bag/min
Frequently Asked Questions
Can your machine meet our specific packaging requirements?
We carefully evaluate your packaging materials, volume requirements, bag dimensions, speed specifications, and precision needs to provide customized solutions. Every machine is tailored to ensure optimal performance for your specific application.
Are you a manufacturer or trading company?
We are the original manufacturer with over 10 years of experience in research, development, and production of various packaging equipment. Our expertise ensures high-quality, reliable machinery.
What payment methods do you accept?
We offer multiple secure payment options including bank transfer (T/T), trade assurance services, Western Union, and cash payments for your convenience and security.
How can we verify machine quality before delivery?
We provide comprehensive quality verification through detailed photos and videos of your machine prior to shipment. You may also arrange for independent quality inspection through contacts in Guangzhou.
How is payment security ensured?
Our verified business credentials and trade assurance services guarantee both your financial security and machine quality. We ensure on-time delivery and complete transaction protection.
Why choose our company?
With over a decade of specialized experience in packaging machinery, we provide superior after-sales service and risk-free transactions. Our commitment to quality and customer satisfaction makes us the ideal partner for your packaging needs.
