Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Servo Driven Pillow Packaging Machine 50-100 Bags/Min
Specifications
Brand Name :
PL
Model Number :
PL250/350/450/650/850
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD4500-6500/unit
Payment Terms :
T/T,Western Union
Supply Ability :
500 units in a month
Delivery Time :
15-30 work days
Packaging Details :
wooden case
Product Name :
Pillow Packaging Machine
Material :
Carbon Steel + Stainless Steel
Usage :
Usage
Function :
Forming, Filling, Sealing, Cutting
Bag Size :
L:60-280mm, W:20-100mm
Speed :
50-100 bags/min
Advantage :
3 Servo Motors, Stable Performance
Customizable :
Custom Design Available
Description

Automatic Biscuit & Daily Product Bagging Equipment


Product Overview

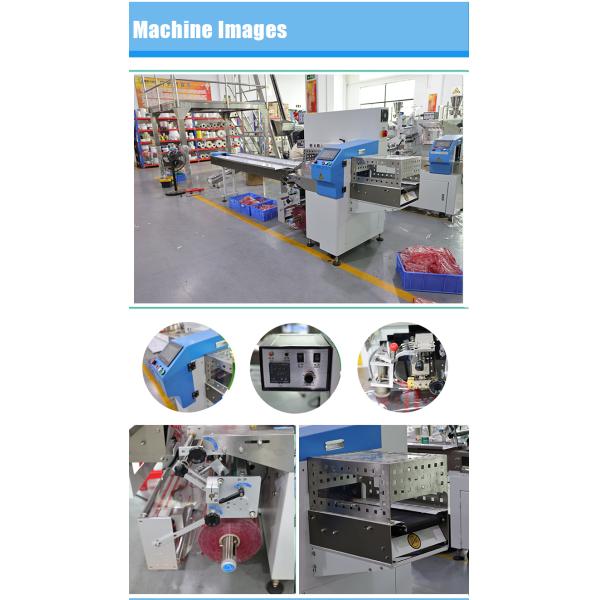

The PL series pillow packaging machine is a high-efficiency automatic packaging solution designed for food, daily necessities, stationery, and hardware industries. Equipped with a 3-servo drive system, it ensures stable performance and a packaging speed of up to 100 bags per minute. The machine supports adjustable bag sizes and is compatible with composite film materials. It integrates forming, filling, sealing, and cutting in one process. With a user-friendly touchscreen interface, it’s ideal for small to medium-sized enterprises aiming to upgrade to automated packaging systems.

Servo Driven Pillow Packaging Machine 50-100 Bags/Min

Servo Driven Pillow Packaging Machine 50-100 Bags/Min

Key attributes


packaging material
Plastic, Paper, OPP/CPP/PE
packaging type
CANS, Stand-up Pouch, Bags, Film, Pouch, case, Sachet/Pillow bag/Back bag
application
Food, Beverage, Commodity, Chemical, Machinery & Hardware
driven type
Pneumatic
Filling Material
Powder, Granule, Solid
warranty
1 Year
Voltage
220V50/60Hz
function
FILLING, Wrapping, Labeling, Sealing
automatic grade
Automatic
video outgoing-inspection
Provided
machinery test report
Provided
key selling points
Easy to Operate, High-accuracy, Long Service Life, Competitive Price, High Productivity, Multifunctional
core components
motor, Pressure vessel, PLC, Gear, Bearing, Engine, Gearbox
After-sales Service Provided
Online support, Video technical support
Weight (KG)
200
place of origin
Guangdong, China
brand name
Penglai pack
dimension(l*w*h)
(L)4020*(W)745*(H)1450mm
Function
Filling Sealing Packing
Advantage
Easy Control +Save cost
Bag type
Back Seal Bag
Machine type
Customized
Suitable for
Round granules
Film material
OPP CPP PET PE
Product Keywords
Sachet Bag Sugar Packing Machine
Usage
Food Snack
Speed
30-45bags/min
Machine material
SS201/SS304/SS316

Packaging and delivery


Selling Units
Single item
Single package size
350X120X150 cm
Single gross weight
200.000 kg

Servo Driven Pillow Packaging Machine 50-100 Bags/Min

Main Features:


A. Servo motor control;Accurate bag length setting

B. 7inch touch screen, easy operation and multiple language for choice.

C. PID Temperature control, making the seal at low temperature to raise the packing speed and reduce film burning;suitable for various packing films such as aluminium film, paper film, PE film, and composite film.

D. High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.

E. 10 kinds of product packing data memories for easy data setting and record

F.No product No pack


Working Process:

Horizontal flow packing is full automatic packing machine which included product feeding---film forming---product wrapping---bag sealing---bag packing
