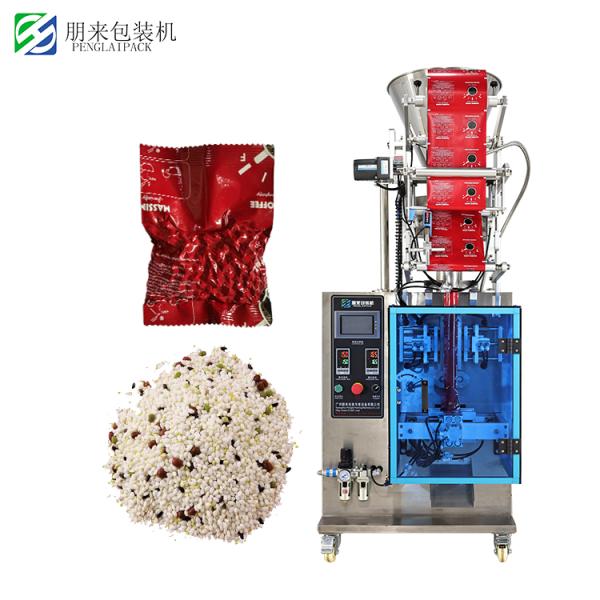

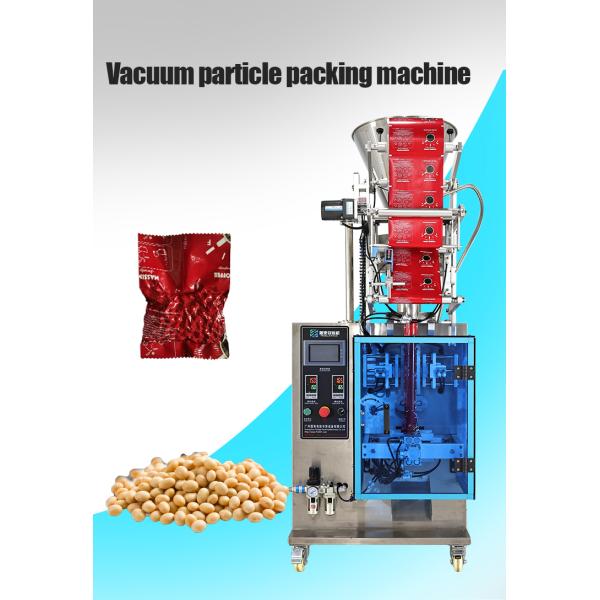

Automatic Back Side Seal Sachet Packer With Servo Dosing 80-150 Bags/Min

Product Overview

PL-220GSYB is Penglai’s 20-year know-how condensed into a “small-footprint, big-output” fully-electric high-speed sachet packer. At 900 × 700 × 1720 mm and only 300 kg it slips into a 6 m² room and runs on 220 V household power—no compressor needed. 80-150 bags/min, 1-30 g servo measuring-cup dosing, back- or side-seal selectable from the screen, and compatible with any heat-sealable laminated film. Coffee, sugar, seasonings, probiotics or TCM granules—change-over in 3 minutes. Ideal for small batches, SKU-rich portfolios and e-commerce fulfilment centres.

Product Parameters

The PL-220GSYB is a fully-electric high-speed granule packaging machine created for start-ups and e-commerce fulfilment centres that need pharmaceutical-grade accuracy but have limited floor space. Measuring only 900 × 700 × 1720 mm, the unit slips through a standard door and runs on 220 V household power—no compressor, no extra wiring.

A servo-driven rotary measuring cup doses 1-30 g with ±0.1 g repeatability, while triple stepper motors pull film and seal at 80-150 bags/min. Change-over between back seal and side seal is done on the 10-inch colour touchscreen; no mechanical parts need to be swapped, so your operators finish SKU switching in under 3 minutes and are ready for the next batch.

Technology Highlights – Focus on “Electric & Quiet”
Unlike pneumatic machines, every motion on the PL-220GSYB is driven by stepper or servo motors, reducing noise below 65 dB and cutting energy consumption by 1.5 kW per shift.

Application & Usage – Focus on “Multi-Industry”
The machine is ideal for free-flowing granules such as instant coffee, white sugar, desiccant beads, seasoning cubes, probiotics, seed beads or chemical salts. All product-contact parts are made from SUS 304 stainless steel with optional 316 L for corrosive or pharma products.
