Specifications
Brand Name :
Penglai Pack
Model Number :
PL-420G
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000-20000 USD
Payment Terms :
,T/T,Western Union
Supply Ability :
50 SET/MONTH
Delivery Time :
25-30 days
Packaging Details :
wooden case
Voltage :
220V/380V,Customized
Automatic grade :
Automatic
Driven type :
Pneumatic
Dimension(l*w*h) :
L1400*W1000*H1800mm
Application :
Food,Chemical,Medical,Commodity,Beverage
Type :
Multi-Function Packaging Machine,Filling Machine,sauce honey sachet ketchup liquid packing machine
Function :
Sealing,Filling,Wrapping,Slitting,Labeling
Power :
3KW,
Warranty :
1 Year
Weight :
800 KG
Packing speed :
10-40 bags/min ( up to packing volume and bag size)
Material :
Product touching parts using 304 Stainless Steel
Description
Automatic Liquid Sauce Packing Machine - Large Volume 1-5kg Paste Oil Vacuum Bag Packaging
Product Specifications
Product Name:
Liquid Vacuum Bag packing machine
Filling method:
piston pump/Rotary Pump
Bag shap:
pillow bag 3 side sealed( upper+bottom+side)
Bag size:
L100-300mm W80-200mm
Capacity:
100-1000ml/bag
Speed:
15-40 bags/min
Control style:
PLC control+ English screen
Material:
stainless steel
Voltage:
380v/50HZ
Power:
1.3Kw
Weight:
500KG
Dimension:
1100*1500*1900mm
Product Description
This automatic packaging machine is designed for large-volume packaging of various non-flowing pastes and liquids with fluidity, ranging from 1-5kg per package.
Applications
Widely used in food, chemical, daily chemical and other industries for products including:
  • Jam and preserves
  • Beverages and drinks
  • Glutinous rice glue
  • Mayonnaise and sauces
  • Lotus seed paste
  • Beauty wax and cosmetics
  • Coconut water and coconut fruit
  • Tomato sauce and ketchup
Key Features
  • Automatically completes measuring, bag making, filling, sealing, vacuuming, cutting, and printing production dates

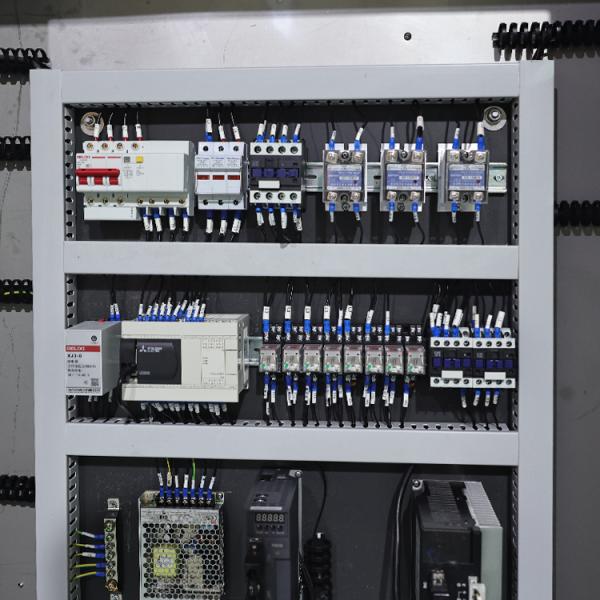

  • Mitsubishi PLC system for stable operation with adjustable parameters during operation

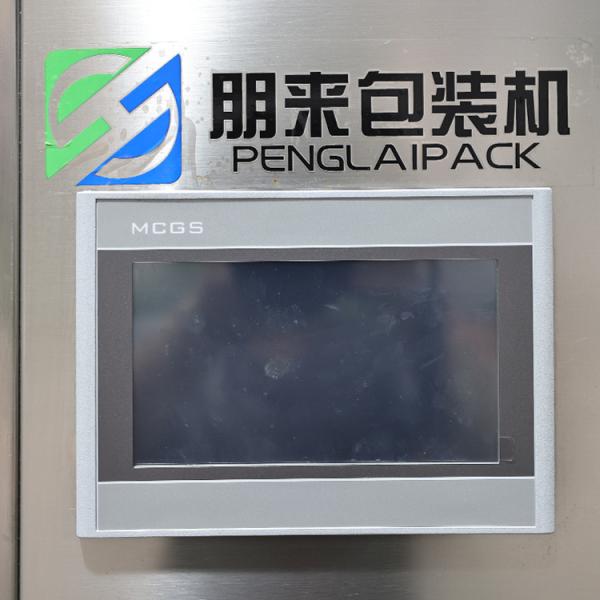

  • Chinese/English touch screen interface for intuitive operation
  • Stores ten sets of parameters for precise material changes
  • Servo motor film pulling for accurate positioning
  • Taiwan AirTAC pneumatic components
  • PID temperature control system (±1°C accuracy)
  • Multiple packaging styles (oblique angle, flat angle, etc.)
  • Clean working environment with low noise operation
