Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V
Specifications
Dose range :
Magnetic pump/Rotor pump /piston pumg
Measuring range :
1-30g
Brand Name :
Penglai
Model Number :
PL220
Certification :
CE certifications
Place of Origin :
China
MOQ :
1Set
Price :
5980usd
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100set/month
Delivery Time :
15working days
Packaging Details :
wooden case
Control system :
PLC control
Description
Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V

Products parameter

model
PL-220GSYB
measuring range
1-30g
bag size
(back seal)L20-145mm,W20-100mm;(side seal)L20-145mm,W30-100mm
dose range
magnetic pump,rotor pump,piston pump
voltage
220V,50-60Hz,2KW
control system
PLC control
speed
80-120bag/min
bag type
back seal/side seal
dimension
L900*W700*H1720mm
weight
300kg
package material
bopp/pe/pet,any heat sealing laminated film roll

*All specifications are for reference only and can be customized as per customer needs.


Products descriptions

  • Fully electric design with three stepper motors. It features flexible operation, a streamlined overall structure, and simple maintenance.
  • Production speed can be adjusted directly via the up and down keys on the PLC touchscreen, with no need for complex parameter settings.
  • Low noise, high precision, and easy to clean.
  • The whole machine chassis adopts custom 304 stainless steel with integrally supplied stainless steel plates of non-outsourced processing.
  • The equipment boasts strong compatibility; different packaging specifications can be achieved simply by replacing the mould.
  • Solid state fitted with a dedicated cooling base.
  • Servo motor feeding equipped with a patented rotor pump, delivering excellent versatility.

Details

Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V

Sample bag

Tube Ice Fruit Juice Automatic Liquid Packaging Machine 2KW 220V

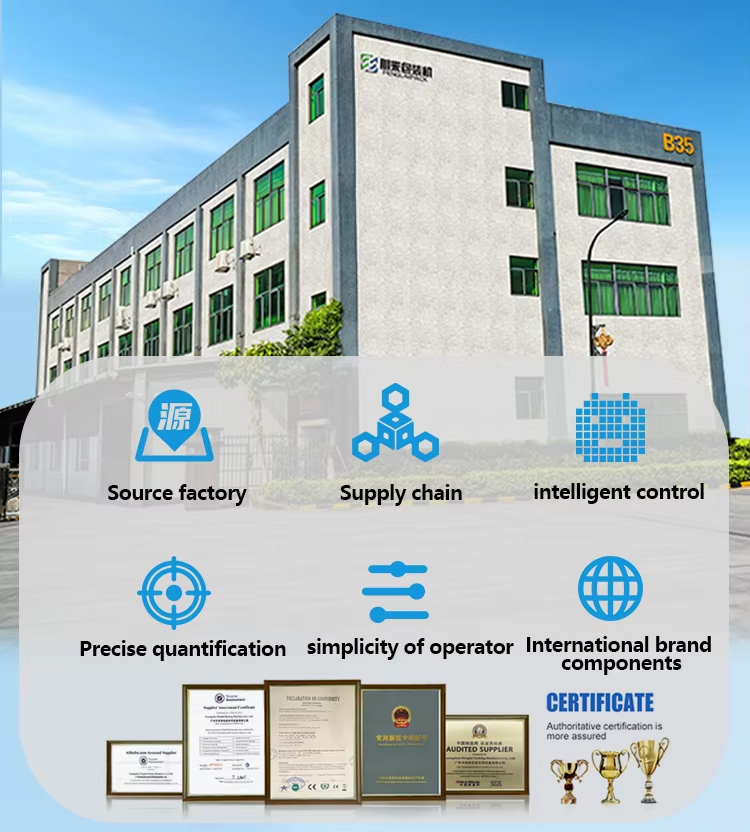

Company Introduction


FAQ:


Q1. How can I visit your factory?
A1:Please contact with us, and we are warmly welcome you visit our Factory if you have a travel plan.

Q2. How can you know if our machine is suitable for your production requirements?
A2:You can tell us your requirements and send us the sample pictures and videos. If possible, it is best to send samples to us for machine debugging.

Q3. How do you offer technical support?
A3:1.Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas

Q4. What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5. How could we contact you?

A5:Please leave a message and send us an inquiry.
