Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Specifications
Brand Name :
PL
Model Number :
Pl-350
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD22050-USD3600/per unit
Payment Terms :
T/T
Supply Ability :
500units in a month
Delivery Time :
in 30 days
Packaging Details :
wooden case
packaging material :
Plastic, Paper, Wood
packaging type :
Bags, Film, Pouch, Stand-up Pouch, Foil, Belt
application :
Beverage, Chemical, Commodity, Food, Machinery & Hardware
driven type :
Pneumatic
Voltage :
220V/380V
function :
Filling, Labeling, Sealing, Slitting, Wrapping
core components :
motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine,
Speed :
30-40bags/lane/min
Appearance :
stainless steel
Description

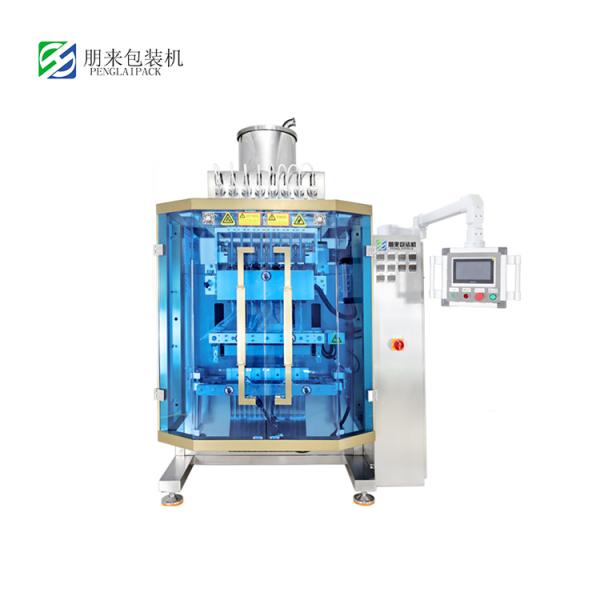

Multi-Lane Automatic Liquid Pouch Packing Machine
High precision stainless steel construction for jelly, fruit juice and other liquid products
Key Specifications
Packaging Material Plastic, Paper, Wood
Packaging Type Bags, Film, Pouch, Stand-up Pouch, Foil, Belt
Application Beverage, Chemical, Commodity, Food, Machinery & Hardware
Driven Type Pneumatic
Voltage 220V/380V
Function Filling, Labeling, Sealing, Slitting, Wrapping
Speed 30-40 bags/lane/min
Appearance Stainless Steel
Product Overview
This multi-lane machine is a fully automatic packing equipment designed for liquid packaging. Suitable for various materials including cleaning products, detergents, drinks, hair care products, oils, fruits and vegetables, helping enterprises achieve efficient packaging production.
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Technical Specifications
Automatic Grade: Fully Automatic
Type: Packing Machine
Forming Species: Bag Moulding
Forming Function: Forming, Filling, Seal
Material Type: Liquid
Filling Volume Range: 1-50ml
Packing Lanes: 4lane, 6lane, 8lane, 10lane
Control System: PLC + Color Touch Screen
Weight: 1500kg
Production Capacity: 1000 sets/Year
Machine Features
  • Servo motor and servo driver for precise film pulling and stable performance
  • Noiseless stepping motor improves working conditions with reduced vibration and noise
  • Food-grade stainless steel 304 construction ensures cleanliness and durability
  • Imported color mark sensor for accurate cutting positioning

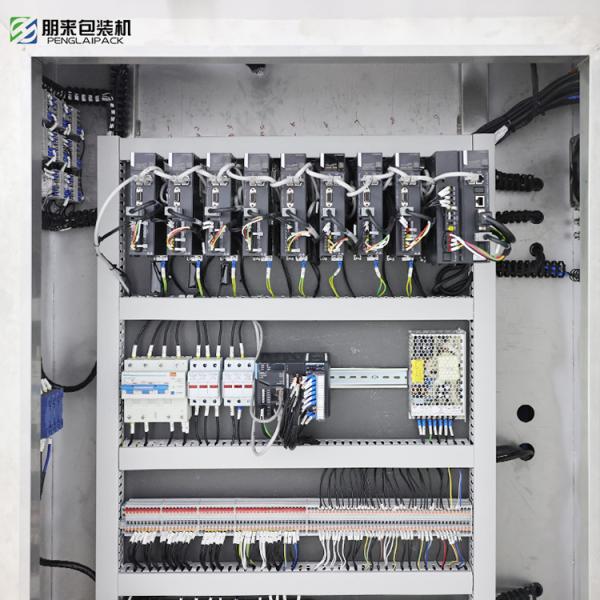

  • PLC control with touch screen panel for easy operation
  • Multiple automatic alarm protection functions to minimize losses
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
Performance Specifications
Type 4lane 6lane
Bag length max 170mm max 170mm
Bag width 16-84mm 16-54mm
Max width of roll film 440mm 440mm
Packing speed 30-50 bag/min/lane 30-50 bag/min/lane
Air consumption 0.65mpa 0.65mpa
Gas consumption 0.2m³/min 0.2m³/min
Power voltage 220VAC/50HZ 220VAC/50HZ
Power 2.0KW 2.2KW
Dimension 1100×990×2100mm 1100×990×2100mm
Weight 1500KG 1500KG
Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min Stainless Steel Automatic Liquid Pouch Packing Machine 4 Lane 30-50bags/min
