40kg Aluminum Door Closer
40kg Aluminum Door Closer
40kg Aluminum Door Closer
40kg Aluminum Door Closer
Specifications
Brand Name :
Dorrenhaus, DORHAUS
Model Number :
D703, D706
Certification :
UL 228, CCC Certified
Place of Origin :
Zhejiang, China
MOQ :
100sets
Price :
USD10.50-USD12.00 per set
Payment Terms :
D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
10,000sets / month
Delivery Time :
5 weeks
Packaging Details :
1 set in 1 paper box, 10 sets in carton of 548*345*185mm, 30ctns in 1 wooden pallet size: 115*106cm
Main Words :
Aluminum Door Closer
Quality Gurantee :
3 years
Spring Force :
size 3 and 6
Optional Function :
Back Check
Weight Range :
40-65kg, 100-150kg
Max. Open Angle :
115 degree
Door Width :
950mm, 1500mm
Temp. Applicable :
-40℃ to 45℃
Description


Medium Duty Aluminum Commercial Door Closer for residential interior door

  • Advanced craft: smooth running, no oil leakage, noiseless
  • UL 228 Certification | UL 10C Certifire 3 hours fire rating
  • Dual regulating valves control closing and latching speed

  • D700 Series Sized 3 and 6 Medium Duty Aluminum Commercial Door Closers
  • Reinforced type adjustable screw thread arm, suit for residential interior door
  • Rack and pinion contained in high tensile precision cast aluminum body.
  • Closing and latching speed controlled by dual regulating valves.
  • Universal application, designed for all standard non-handed installations.
  • Streamlined design permits installation on different applications without adaptor.
  • High quality hydraulic fluid for high lubricity and smooth running.
  • Power adjustment bracket on regular arms. (15% adjustment, ± 7.5%)
  • Optional back check controlled by separate regulating valve.
  • Available in Alum, Bronze, Gold, White, Black and Brown
  • UL 228 certification, with 300,000+ life cycles
  • UL 10 Certifire, up to 3 hours fire rating

► Long term cooperative suppliers of global top door closer brands

40kg Aluminum Door Closer

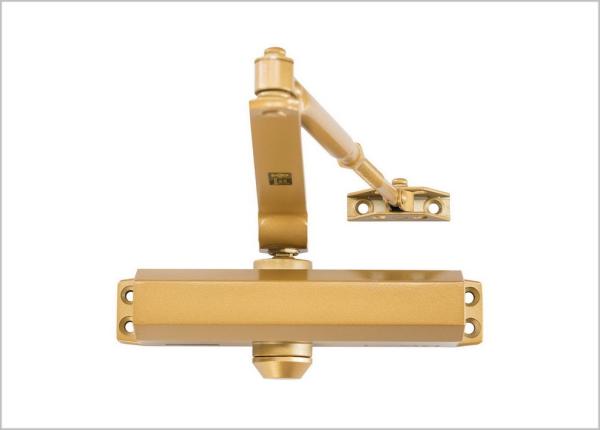

Finishes - Painting: Silver, Gold, Bronze, White, Black, Brown

Other Specifications

  • Item Weight: 2.36kg (5.2 lbs)
  • Box Dimensions: 11-½ ”x 3-¼”x 3-¾ ”

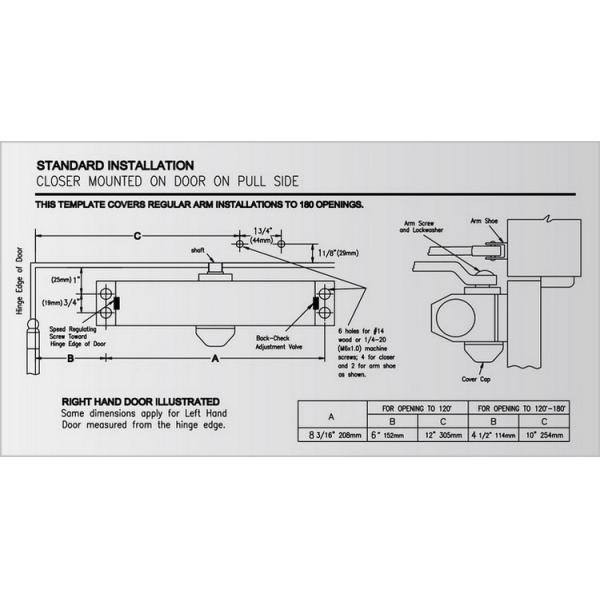

  • Screw/bolt Pattern: 8-3/16″ c-c width x 3/4″ c-c height
  • Footprint H: 1-5/8” (41mm) W: 8-7/8” (225mm) Projection: 2-7/8” (73mm)


Model No.

Max. Door

Width

Max. Door
Weight

Body Spec.
(LxWxH)

Mounting
Dimension


D703

 950mm 65kg 225*42*74mm 208*19mm
D706 1500mm


150kg

 225*42*74mm 208*19mm

Opening
Angle


Warranty

Fire Rating
Standard

Life Cycles

Production
Certification
115º 3 years


UL 10C

 200,000 UL 228


40kg Aluminum Door Closer40kg Aluminum Door Closer

40kg Aluminum Door Closer

40kg Aluminum Door Closer
