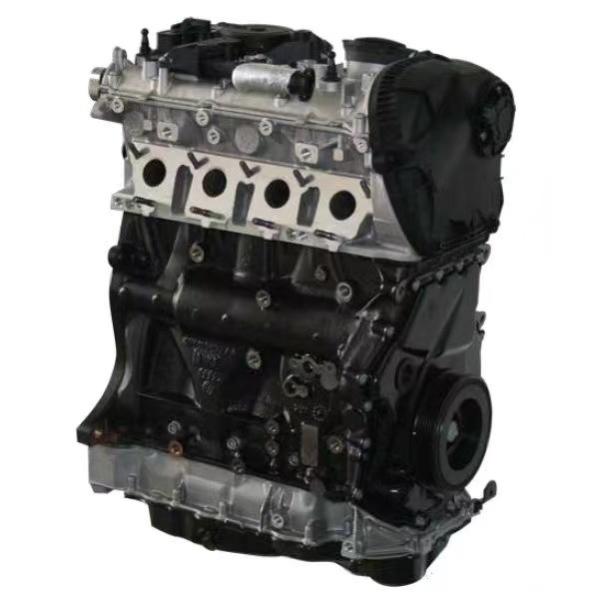

Basic Information:
| Small Short Hair Assembly Number: | 06J 100 861 CX |
| Type code: | CBL |
| Matching Models: | Volkswagen Maiten Manual / Automatic / DSG |
Engine Parameters :
| Engine type | Generation EA888 |
| Displacement (mL) | 1984 |
| Intake form | Turbo |
| Cylinder arrangement form | Inline four-cylinder |
| Number of cylinders (units) | 4 |
| Valves per cylinder (units) | 4 |
| compression ratio | 9.6 |
| Valve train | Overhead double camshaft |
| Cylinder diameter (mm) | 82.5 |
| Stroke (mm) | 92.8 |
| Maximum torque | 280Nm/1800-5000rpm |
| Maximum power | 147kW/5000-6000 rpm |
| Cylinder head material | aluminum alloy |
| Cylinder block material | cast iron |
| Fuel supply mode | Gasoline direct injection |
1pc/box neutral packaging Export carton/wooden packaging or customized.
| Quantity(pieces) | 1 - 10 | 11 - 50 | >50 |
| Lead time (days) | 10 | 15 | To be negotiated |
At present, Our company has five production lines including cylinder block, cylinder head, crankshaft, connecting rod and balance shaft, and assembly lines including cylinder head sub-assembly line, short hair assembly line and long hair assembly line. In addition, the production process also includes perfect cold test, hot test, power measurement and measurement system.
