Specifications
Model Number :
F10
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C,T/T
Supply Ability :
50,000 Unit per year
Delivery Time :
Within 60 working days of receipt of deposit
Vehicle Model :
F10 Electric Vehicle
Overall dimensions-L*W*H(mm)  :
3780*1650*1530
Wheelbase(mm) :
2410
Tread/Front/Rear(mm) :
1415/1417
Front/Rear Suspension(mm) :
790/580
Approach angle(°)  :
16°/15°(Empty load / full load)
Departure angle(°) :
27°/25°(Empty load / full load)
Max.gradability(%) :
≤20%
Rated load mass(Kg) :
350
Mini.ground clearance(mm) :
170
Description

RHD & LHD New Energy Car F10 Electric Vehicle 350 kg Payload & 300 km Range



F10 INTRODUCTION

Body: Experience efficient and practical electric driving with the F10 Electric Vehicle. Designed for modern urban life, the F10 EV combines smart features with reliable performance.


Key Selling Points:

  1. Impressive Range & Quick Charging: Travel confidently with a 300 km range on a single charge. Recharge rapidly using DC fast charging (0.8 hours from 20% to 80% SOC) or conveniently at home overnight (8-9 hours).
  2. Zippy & Efficient Performance: Powered by a water-cooled Permanent Magnet Synchronous Motor delivering 45 kW max power and 160 N·m max torque, enabling a top speed of 100 km/h and confident handling of inclines up to 20% grade.
  3. Spacious & Practical Design: Cleverly packaged within its compact dimensions (3780 x 1650 x 1530 mm), the F10 comfortably seats 5 passengers and offers a surprisingly roomy 255L luggage compartment.
  4. Comfort & Convenience: Enjoy a pleasant drive with standard features including Air Conditioning, Heating, Leather Seats, Velvet Carpet, Electric Mirrors, Front & Rear Power Windows, and Central Locking.
  5. Tech-Forward Cabin: Stay connected and entertained with the integrated 9.7-inch Multimedia LCD Screen.
  6. Essential Safety: Features include ABS (Anti-lock Braking System), Power-Assisted Steering, Front Disc / Rear Drum Brakes with Booster, Rear Fog Lamp, and options for Driver & Passenger Airbags.
  7. Style Options: Personalize your F10 with a choice of stylish colors: Pearl White, Cairo Gold, BMW Brown, Pearl Red.
  8. Proven EV Tech: Utilizes a robust, naturally-cooled Lithium Iron Phosphate (LFP) Battery Pack with 31.95 kWh total energy, known for safety and longevity.


F10 Parameters:

F10(EV) Parameter table
Vehicle Model F10 Electric Vehicle
Steering System LHD/RHD
Dimensions&Specifications
Overall dimensions-L*W*H(mm) 3780*1650*1530
Wheelbase(mm) 2410
Tread/Front/Rear(mm) 1415/1417
Front/Rear Suspension(mm) 790/580
Approach angle(°) 16°/15°(Empty load / full load)
Departure angle(°) 27°/25°(Empty load / full load)
Max.gradability(%) ≤20%
Rated load mass(Kg) 350
Mini.ground clearance(mm) 170
Mini.turning radius(m) 5
Rated Passengers 5
Curb Weight(Kg) 1130
Power
Position of Motor Front
Type of Motor Permanent magnet synchronous motor (water-cooled)
Rated Power 22KW
N.W.of Drive Motor(Kg) 33kg
Rated rotation rate 5500r/min
Max./Continuous power(KW) 45/22
Max.Torque 160/70
Max.speed(Km/h) 100Km/h
Running Mileage(Km) 300
Charger Power(KW) 3.3
DC charging posts charging Time(SOC:20~80%) 0.8h
AC charging posts charging time 6-8h
Home charging time 8-9h
Type of Battery(cooling mode) Lithium iron phosphate battery assembly (natural cooling)
N.W.of Battery(Kg) 256kg
Total energy of Battery(Kwh) 31.95
Rated capacity(Ah) 104
Trunk size (mm) 980*480*850
Trunk volume (L) 255
Steering System
Gear rack electric booster
Brake System
Manual mechanical parking brake
Suspension System
Front:MC Pherson Independent Suspension/ Rear:Semi drag rocker arm Independent suspension +Coil Spring
Drive/Brake methods
Front Drive/ Front disc/rear drum The brake booster

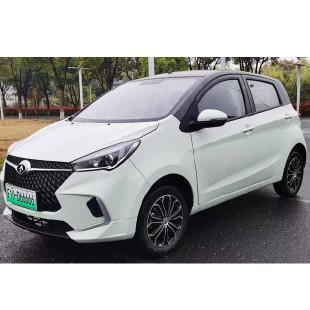

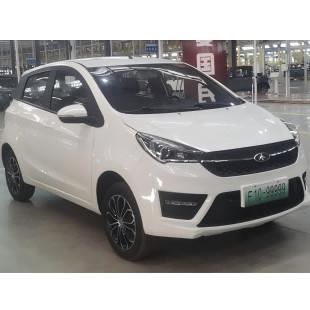

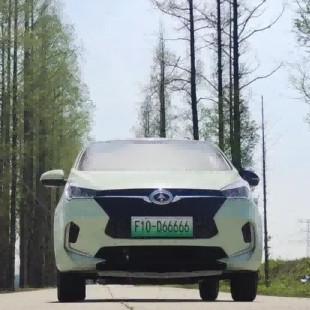

F10 Detailed Pictures:

RHD & LHD  New Energy Car F10 Electric Vehicle 350 kg Payload & 300 km Range

RHD & LHD  New Energy Car F10 Electric Vehicle 350 kg Payload & 300 km Range
