Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km
Specifications
Brand Name :
BIG AUTO
Model Number :
Electric 4WD Pickup Truck BMP 03
Place of Origin :
CHINA
MOQ :
1 unit
Payment Terms :
L/C, T/T
Supply Ability :
5000-30000units
Delivery Time :
45-60 Working days
Packaging Details :
Using Carton, fumigated wood pallet and steel pallet
Product Name :
Electric 4WD Pickup Truck BMP 03
Length*Width*Height (mm) :
5692* 2045*1960
Wheelbase (mm) :
3513
Front and rear overhang (mm) :
860/ 1350
Front and rear wheelbase (mm) :
1532/ 1537
Max. load capacity (Kg) :
1010
Total mass (Kg) :
1875
Gross mass (Kg) :
2885
Maximum number of occupants :
2+3
Maximum speed (Km/h) :
100
Description

Big Size LHD and RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km

BMP 03 overoll Introduction:

Safe and solid: The vehicle adopts fully welded thicker, wider, higher, reinforced frame. Resistant to impact and twisting.

Large space for more comfortable ride: the length, width and height of the vehicle are 5692mm, 2045mm and 1960mm respectively. And the vehicle adopts double-wishbone independent suspension, strong driving comfort, to meet the needs of multiple driving and riding.

Strong range: The vehicle is equipped with 98 kWh lithium iron phosphate battery, with a range of up to 400 kilometers. It can meet all kinds of traveling needs.

BMP 03 parameters

BMP 03 Basic parameters
Length*Width*Height (mm) 5692* 2045*1960
Wheelbase (mm) 3513
Front and rear overhang (mm) 860/ 1350
Front and rear wheelbase (mm) 1532/ 1537
Max. load capacity (Kg) 1010
Total mass (Kg) 1875
Gross mass (Kg) 2885
Trunk size (mm) 1810* 1700*515
Maximum number of occupants 2+3
Maximum speed (Km/h) 100
Maximum gradient (%) 20
Minimum Turning Diameter (m) ≤ 13.5
Minimum Ground Clearance (mm) 180
Approach/Departure Angle (°) 34/ 19
Range (Km) 400
Power system parameters
Drive Type 4*4
Drive motor Front rated 30 Kw, 200N.m / Rear rated 60 Kw
Front reduction gearbox Transmission ratio 4.1
Rear electric drive axle Main transmission ratio 9.33
Battery pack Lithium iron phosphatebattery 98 Kwh
Suspension system Asymmetric leaf spring
Steering System EPS
Braking System Front Disc Brake/ Rear Drum Brake
Hand Brake Yes
ABS Yes
Body and interior parameters
Guard rail type Iron Railings
Seat fabric Imitation Leather Seat
Center screen type Touch Screen
Tires 265/ 65 R17
Interior accessories: sun visors, door sills, adjustable front seat belts, front center armrests

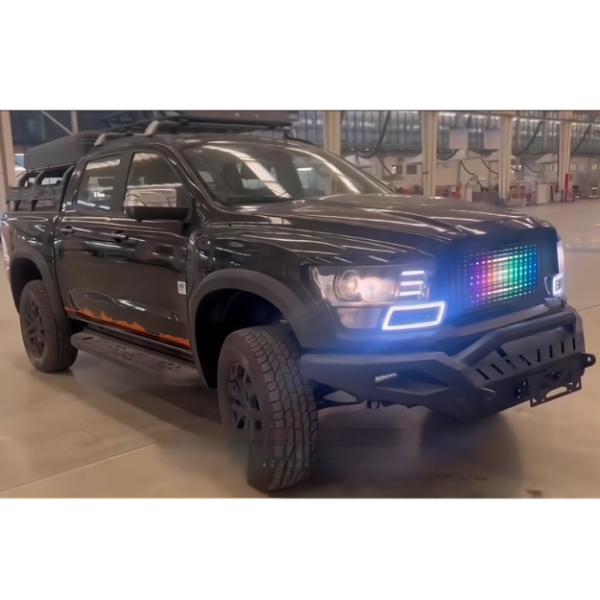

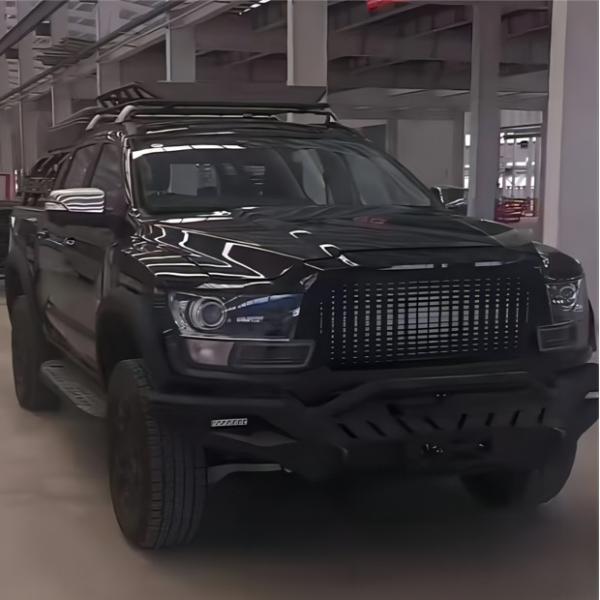

Detailed display pictures

Big Size LHD And RHD Pure Electric 4WD Pickup Truck BMP 03 Range Up To 400Km

Company profile

CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
