Specifications
Brand Name :
JUKOOL
Model Number :
FT-TAC-PH04
Certification :
CE/ISO9001/TS16949
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
5-10days
Packaging Details :
carbon box on pallet
Voltage :
12V
Power :
DC Power 850W
Color :
Red
Warranty :
1 year
Current :
60A-80A
Advantage :
Mute design
Material :
Plastic
Cooling Capacity :
3500-9000BTU
Description

Product Name:CE Certificate Mute Design Noiseless DC12V Electric Power Sleeper Auto Truck Air Conditioner

Mute, noiseless design, provide peace and more comfortable environment to driver

1. Main Instruction of Parking Air Conditioner :

- Split type ac is economy

- No need cut hole on cab

- Back mounted

- Mute evaporator unit design

- LED temperature display

Battery powered parking air conditioner is an auxiliary AC system on vehicles independent from original AC system on vehicles. parking air conditioner is powered by vehicle battery and is able to work standalone whenever the engine is running or stopping. In daytime, when vehicles are running, using of parking air conditioner can improve the effect of cooling together with original AC system. In nights, when vehicles are parking, parking air conditioner can work standalone to provide a cooling environment to drivers for overnight rest. Reasonable using of parking air conditionercan save obviously the fuel consumption caused by AC using.

Wide range of applications: Light & heavy duty trucks, construction machinery, agricultural machinery, mobile workshops, and any other equipment with 5-8 cbms cooling space.

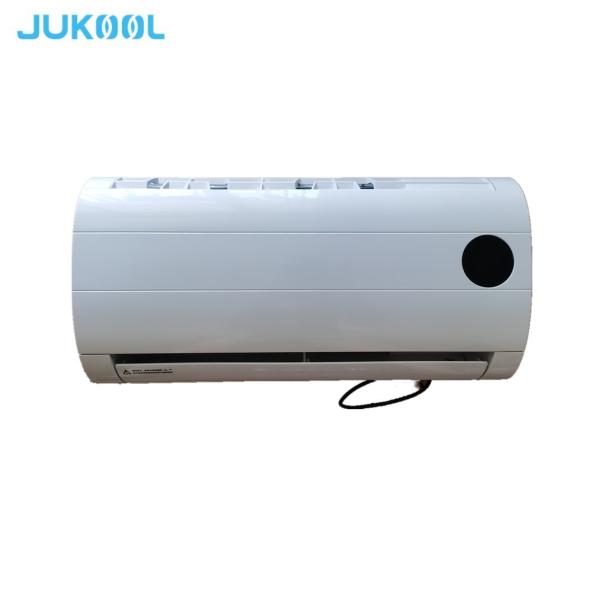

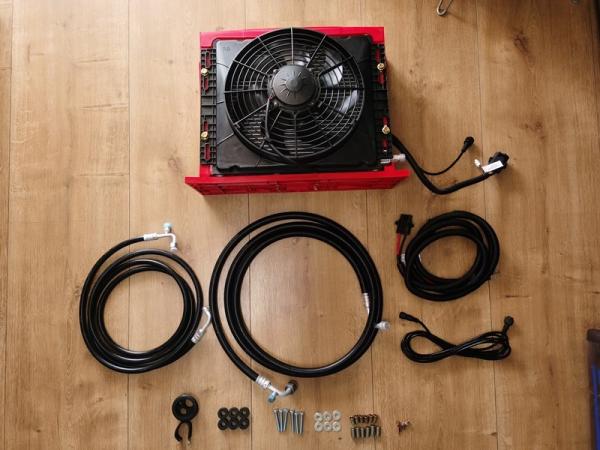

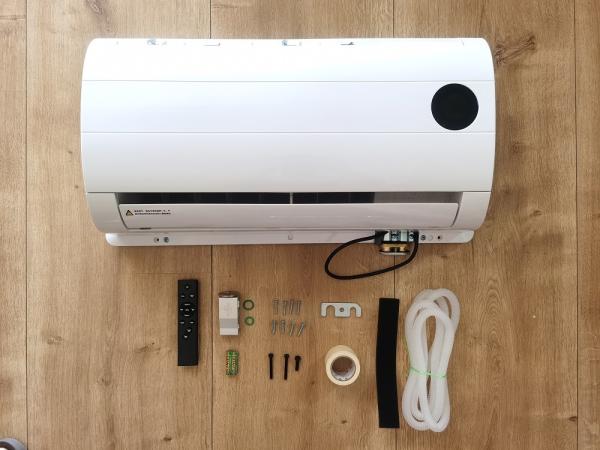

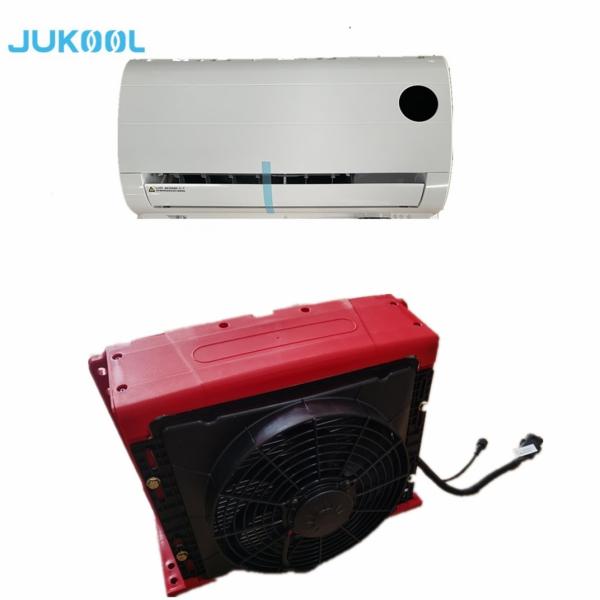

2. Detail Images and Main Components :

CE 9000BTU DC12V Truck Parking Air Conditioner

CE 9000BTU DC12V Truck Parking Air Conditioner

CE 9000BTU DC12V Truck Parking Air Conditioner

3. Main Parameters:

Model FT-TAC-PH04
Rated Voltage DC12V
Voltage protection 10V
Rated Current 60A-80A
Rated Input 850W
Rated cooling capacity 1000-300W
Refrigerant R134a
Injection Volume 600g
Air flow 600 m3/h
Compressor DC scroll frequency conversion
Dimension of condenser 530*200*400mm
Dimension of evaporator 690*375*200mm
Weight 25kgs

4. Benefiary of parking air conditioner : Fuel , Energy , Money Saving

Diesel Price Fuel Consumption Idle Time Average Usage per year
$1.3/L 3.5L/h average 8h/day 180days
Fuel Saving:$1.3L * 3.5l/h *8h*180days=USD6652.00/year


5. Main Advantages:

we design and manufacturer DC scroll type compressor with less failure and better quality control of key components

CE 9000BTU DC12V Truck Parking Air Conditioner

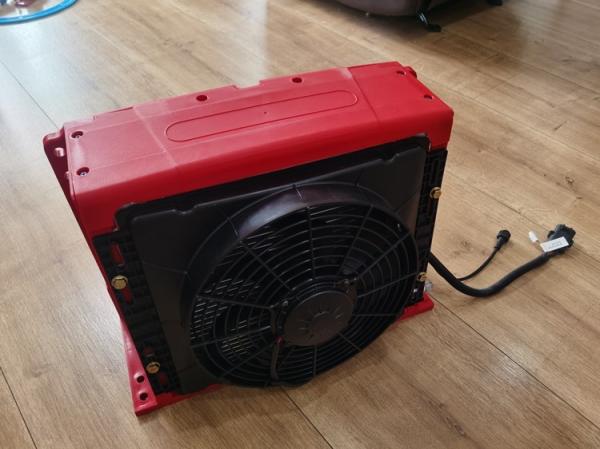

We choose better quality condenser to make sure our air conditioner more stable with high quality

CE 9000BTU DC12V Truck Parking Air Conditioner

6. Function of Internal Control Panel

CE 9000BTU DC12V Truck Parking Air Conditioner

7.Applications of Parking Air Conditioner

parking air conditioner can be widely used for any vehicle with small cabin, such as truck, caravan, forklift ,crane and other agriculture machine,construction machine and so on.

CE 9000BTU DC12V Truck Parking Air Conditioner

8.Why Choose FUTRUN:

- Our professional know-how and abundant experience allow us to face different demands from customers with ease. We can propose the most appropriate products to ourcustomers.

- We have been attaching importance to after-sales service since the start of our company. All the sales team and after sales team have technical training or technical background which can enable them to responses quickly before and after sales

CE 9000BTU DC12V Truck Parking Air Conditioner

- Excellent design, automatic production line and strict quality control ensure reliability of our products. We keep pursuing the best performance cost ratio and short lead time.

CE 9000BTU DC12V Truck Parking Air Conditioner

9.Packing and shipping :

we pack the inside and outside unit seperately with carbon box and then on pallet which is suitable for long distance transportation

CE 9000BTU DC12V Truck Parking Air ConditionerCE 9000BTU DC12V Truck Parking Air Conditioner

we can arrange shipment by air, by sea, by land and by courier. for those buyer without import license ,we can also support import and pay duty and tax for them

CE 9000BTU DC12V Truck Parking Air Conditioner

10. Our Service :

- support customer with formal technical suggestions

- response in 4 hours

- support customer to solve problem referring to our product

- follow custom for installation and after-sales service until no problem left

- support customer to solve any problem related to our products for life time
