Specifications
MOQ :
1 pc
Price :
US$8,000~US$30,000 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
500000/Year
Delivery Time :
20~35 working day
Packaging Details :
Wooden Case
Place of Origin :
china
Brand Name :
WeSeW
Certification :
CE/UL
Model NO. :
AC0040
Material :
Stainless Steel
Material Feature :
Heat Resistant, Fire Resistant
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition :
New
Product Name :
Mud Auger Shaftless Screw Conveyor
Applicable Industries :
Industry
Machinery Test Report :
Provided
Core Components :
Motor
Dimension(L*W*H) :
Customized
Transport Package :
Wooden Box
Specification :
Customized
Trademark :
WESEW
Origin :
China
Package Size :
500.00cm * 50.00cm * 50.00cm
Package Gross Weight :
100.000kg
After-sales Service :
Provided
Warranty :
1 Year
Structure :
Conveyor System
Customization :
Available Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

OEM Custom Mud Auger Shaftless Screw Conveyor for Dyeing Sewage Treatment

Applicable Industries Manufacturing Plant, Food & Beverage Factory, Farm...
Material Carbon steel
Structure Conveyor System
Video outgoing-inspection Provided
Core Components Motor
Product name Screw Conveyor
Frame Material Carbon Steel Stainless Steel 304/316
Spiral diameter Customize
Condition New
Material Feature Heat Resistant
Warranty 1 Year
Machinery Test Report Provided
Application Conveying
Usage Horizontal Conveyor
Conveyor type Automatic Conveyor Line
After-sales Service Video Techinical Support

Product Introduction:
A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste,Sludge & Water treatment.

Product Classification:
According to screw conveyor drive classification
1. If the length of U-shaped screw conveyor is less than 35m, it is a single-axis driving screw. 2. If the length of U-shaped screw conveyor is greater than 35m, it is a two-axis driving screw.
According to the screw conveyor middle hanger bearing type 1. M1- is a rolling bearing, adopts type 80000 sealed bearing, and the shaft cap has a dust-proof sealing structure. It is commonly used in areas where it is difficult to refuel, no refueling, or oil contaminates the material. The sealing effect is good, and the hanging shaft has a long service life. Temperature of conveying material ≤ 80°C. 2. M2- is a sliding bearing, equipped with a dustproof sealing device, a cast copper tile, an alloy wear-resistant cast iron tile, and a copper-based graphite less oil-lubricated tile. Commonly used in the transmission of material temperature is relatively high (t ≥ 80 °C) or transport water containing larger materials.
According to screw conveyor material classification 1. Ordinary carbon steel U-shaped screw conveyors - Mainly used in industries where cement, coal, stone, etc. wear out, and there are no special requirements for materials. 2, stainless steel U-shaped screw conveyor - mainly applicable to food, chemical, food and other industries that have requirements for the delivery environment, cleanliness, and will not produce pollution on the material, the use of a long time, but the relatively high cost.

Equipment Features:
Screw conveyor is designed according to ISO standard,Its hanging bearing has roll and slide structure with sealing device,it has clean device in the discharge port,the inlet and outlet are setuping flexibly,there are low noise, strong adaptability and operation and maintenance smoothly. The sealed parts is made in nylon and PTEF resins which has small resistance, good sealing and wear resistance.

Drawing:
Stainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage Treatment

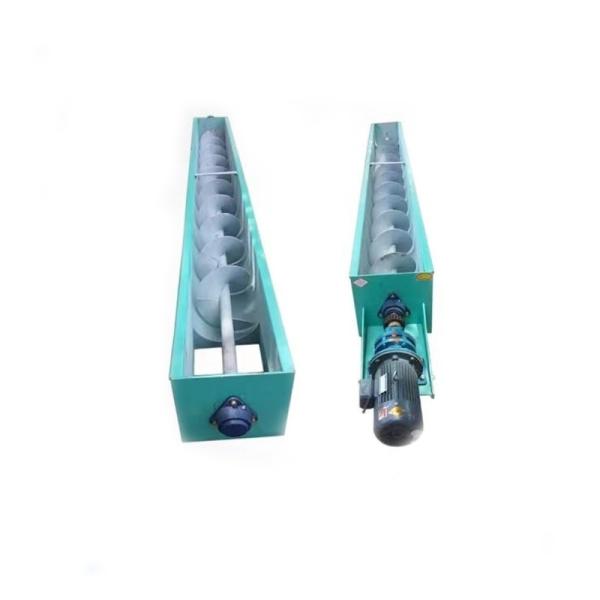

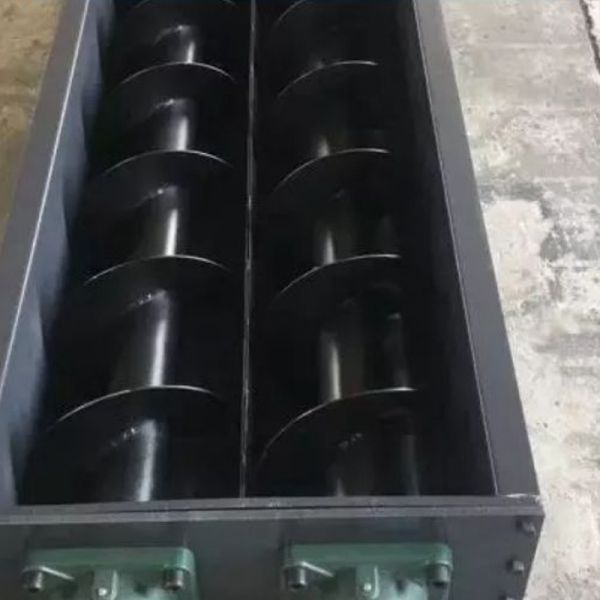

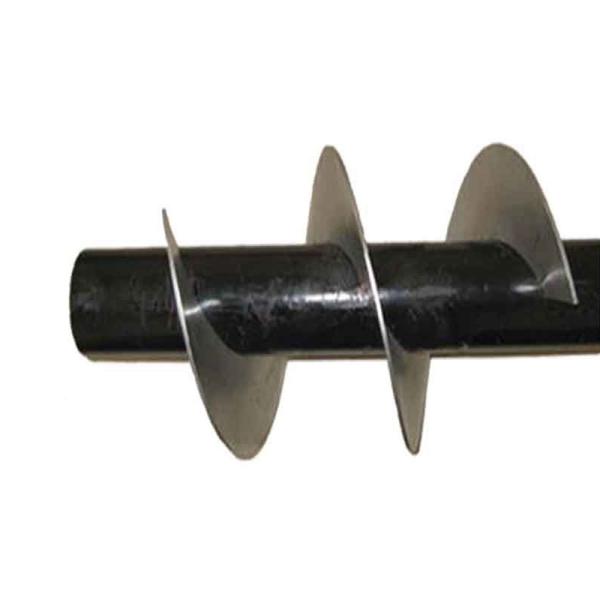

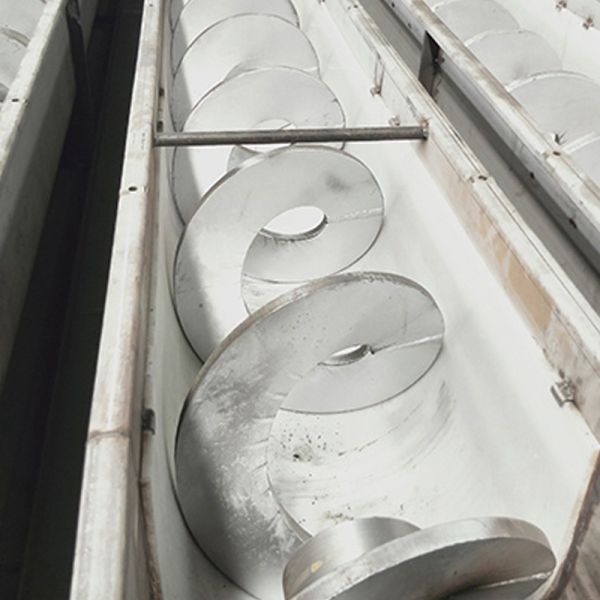

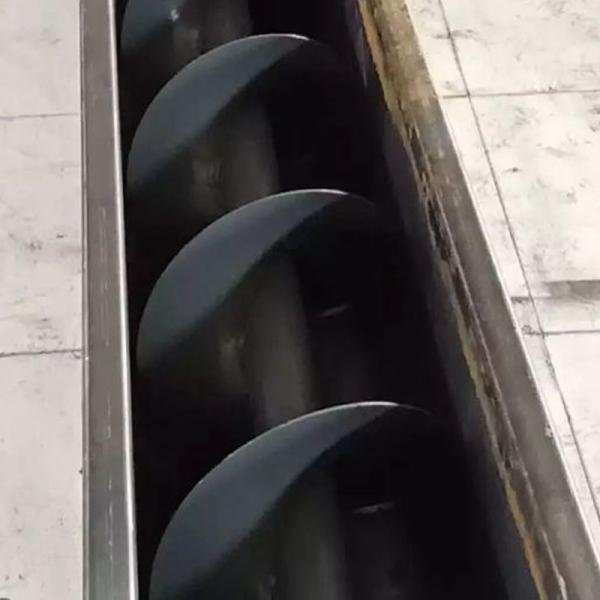

Product Display

Stainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage TreatmentStainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage Treatment
Stainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage TreatmentStainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage TreatmentStainless Steel Heat Resistant Shaftless Screw Auger Conveyor Customized for Dyeing Sewage Treatment
