Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
Specifications
MOQ :
1 pc
Price :
US$800~US$8,000 per pc
Supply Ability :
500000/Year
Delivery Time :
20~35 working day
Packaging Details :
Wooden Case
Place of Origin :
china
Brand Name :
WeSeW
Certification :
CE/UL
Model NO. :
AC0067
Material :
Stainless Steel
Material Feature :
Heat Resistant, Fire Resistant
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition :
New
Product Name :
Tube Flexible Spiral Screw Auger
Applicable Industries :
Industry
Machinery Test Report :
Provided
Core Components :
Motor
Dimension(L*W*H) :
Customized
Transport Package :
Wooden Box
Specification :
Customized
Trademark :
WESEW
Origin :
China
Package Size :
100.00cm * 100.00cm * 300.00cm
Package Gross Weight :
50.000kg
After-sales Service :
Provided
Warranty :
1 Year
Structure :
Conveyor System
Customization :
Available Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

OEM Custom Stainless Steel Tube Flexible Spiral Screw Auger Conveyor with Hopper

Condition New
Material Feature Heat Resistant
Voltage 440V/380V/220V optional
Dimension(L*W*H) As your requirment
After-sales Service Provided Video technical support
Customization Accept
Material Stainless steel, Stainless steel screw conveyor
Structure Inclining Conveyor
Warranty 1 Year
Capacity 1~4m
Discharge port heigh 1200~1600mm
Discharge diameter 2 inch
Rotate speed 14~35r/min
Instruction Viedo

Product Description:
Factory price stainless steel tube flexible spiral screw conveyor with hopper are of simple, relatively low cost construction compared to other conveyor systems. Stainless Steel Screw Conveyor consist of a helical flight fastened around a pipe or solid shaft, mounted within a tubular or U-shaped trough. As the screw rotates,material heaps up in front of the advancing flight and is pushed through the trough.
Particles in the heap next to the flight surface are carried part way up the flight surface, and then flow down on the forward-moving side of the heap. Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline. This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime,maintenance cost, etc.
A standard screw conveyor will often operate normally at angles up to 15º with only a small loss in capacity. Beyond that, adjustments and/or modifications are typically necessary.

Advantage:
Tighter clearance between the screw and trough: This is especially true with granular,free flowing products such as dry, refined sugar.
Higher screw speed: This increases the product's forward momentum and reduces fallback.
Shorter pitch screw flighting: This improves the relative angle between the each flight and the conveyed product.
Use of tubular trough or shrouds: Both act in the same way to surround the screw and prevent product from falling back over the top which tends to occur more as speed is increased.
1.Economical
2.Low maintenance
3.Multiple discharge locations
4.Easy to install
5.Quiet operation
6.No return run
7.Multiple configurations and applications
8.Various materials of construction
9.Can operate on inclines
10.Sanitary construction is available
11.Readily available / minimal lead times
12.Screw feeder for volume control
13.Standardization of parts

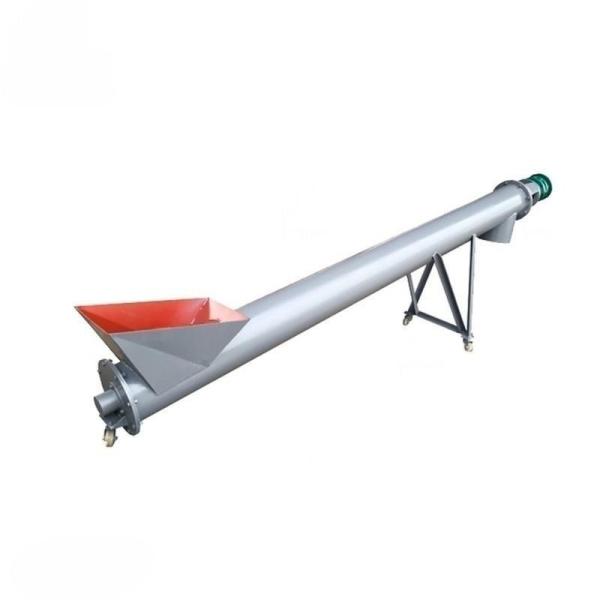

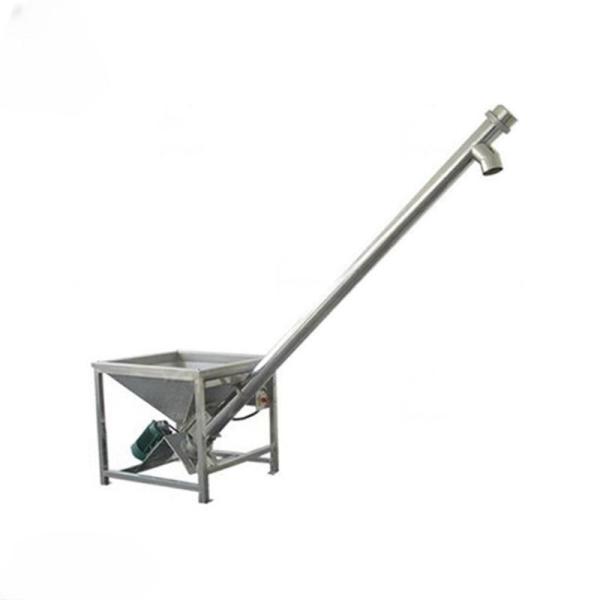

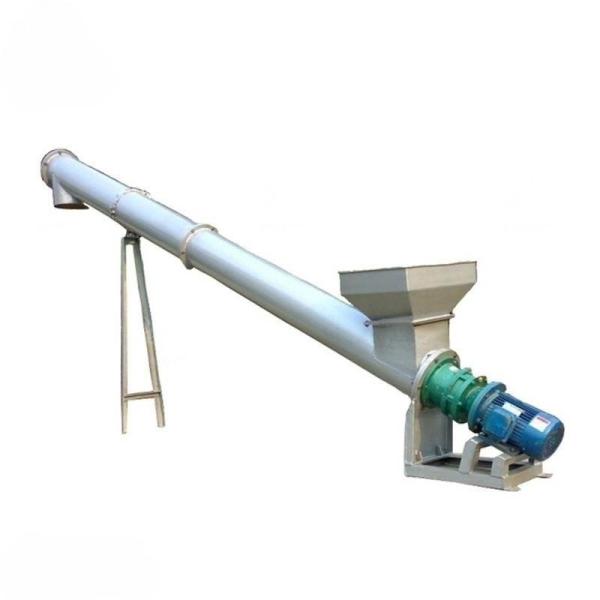

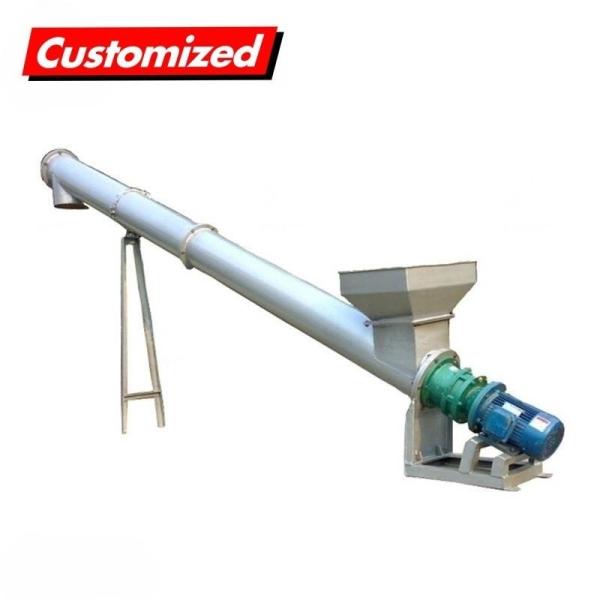

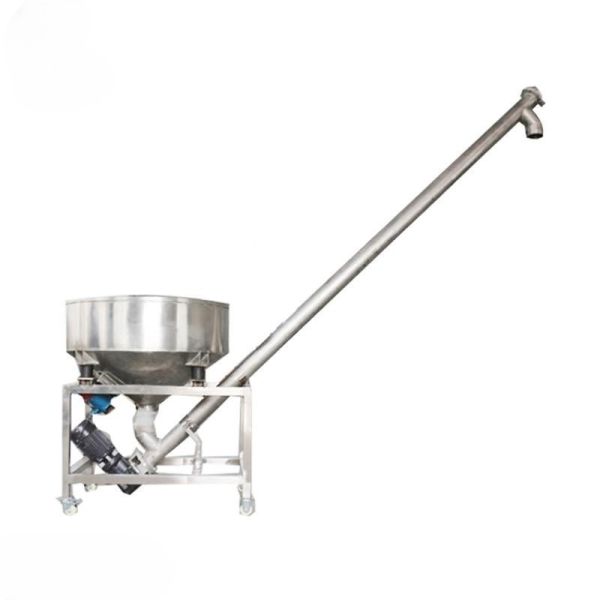

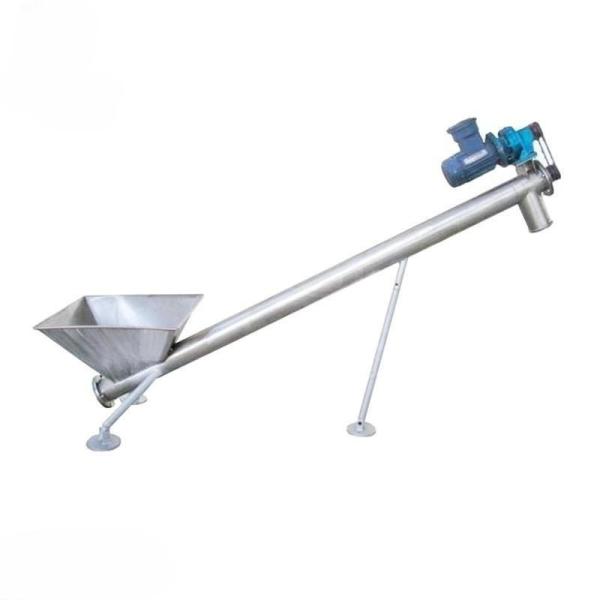

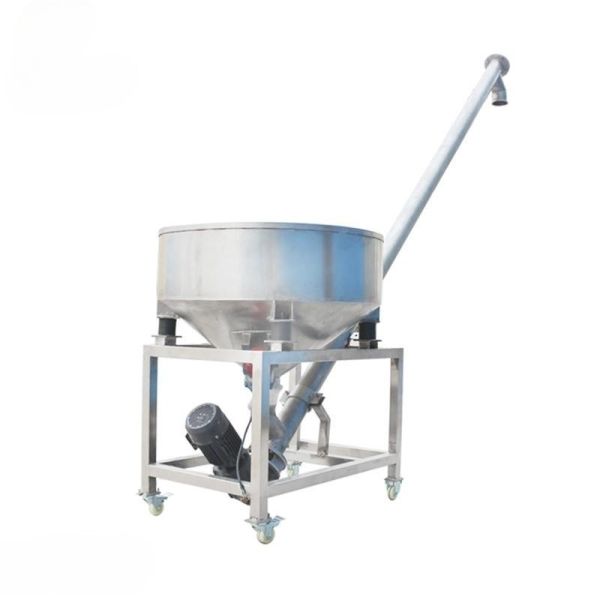

Product Display

Stainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger FeederStainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger FeederStainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger FeederStainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger FeederStainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger FeederStainless Steel Heat Resistant Customized Flexible Screw Conveyor and Spiral Screw Auger Feeder
