Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
Specifications
Brand Name :
WeSeW
Model Number :
KF001-2
Certification :
CE/UL
Place of Origin :
china
MOQ :
1 pc
Price :
US$800~US$8,000 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
500000/Year
Delivery Time :
20~35 working day
Packaging Details :
Wooden Case
Model NO. :
KF001-2
Material :
Stainless Steel
Material Feature :
Heat Resistant, Fire Resistant
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition :
New
Applicable Industries :
Manufacturing Plant, Construction
Machinery Test Report :
Provided
Core Components :
Bearing, Gearbox, Motor
Dimension(L*W*H) :
Customized
Spiral Diameter :
Customize
Transport Package :
Wooden Box
Specification :
Customized
Trademark :
WESEW
Origin :
China
Package Size :
100.00cm * 100.00cm * 50.00cm
Package Gross Weight :
50.000kg
After-sales Service :
Provided
Warranty :
1 Year
Structure :
Conveyor System
Customization :
Available Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description
Stainless Steel Screw Conveyor System
Complete material handling solution including Stainless Steel Screw Conveyor, Dragon-type Inclined Feeder, and Vertical Elevator. Suitable for grains, urea granules, and plastic powders.
Technical Specifications
Specification Model 110mm 140mm 160mm 219mm 273mm
Material stainless steel stainless steel stainless steel stainless steel stainless steel
Motor Power 1.5-2.2kw 1.5-2.2kw 2.2-3kw 3-4kw 5.5-7.5kw
Hourly Output 1t/h 1.5-2t/h 2-3t/h 3-5t/h 5-8t/h
Customization Options: The length of the material pipe, lifting height, and hopper size can be customized according to requirements. Customization based on drawings is also supported.
Core Performance Advantages
  • Corrosion-resistant and Hygienic Material: Machine body made of 304/316L stainless steel with smooth surface and no dead corners. Resistant to acid and alkali corrosion and meets food-grade hygiene standards. Suitable for chemical materials like urea granules and plastic powders, as well as food materials like grains.
  • High-efficiency Conveying: Dragon-shaped variable pitch spiral blade design provides strong material gripping force and stable conveying at inclination angles ≤20°. 20% efficiency increase compared to ordinary conveyors, with single-machine conveying length up to 70 meters.
  • Sealed and Dustproof: Fully enclosed tubular/U-shaped channel structure with flange sealing connection prevents material leakage and environmental pollution. Suitable for various indoor and outdoor operating scenarios.
  • Low Energy Consumption & Easy Maintenance: Modular structure design with embedded tongue connection for screw shaft and bearing. Wear-resistant materials for key components, low noise operation, and 30% reduced maintenance costs.
Typical Application Scenarios
  • Grain Processing: Horizontal/inclined transfer between grain storage facilities and workshops for rice, wheat, and corn loading/unloading.
  • Fertilizer Production: Precise feeding of urea granules from silo to production line with corrosion-resistant materials for corrosive environments.
  • Plastic Manufacturing: In-workshop transfer of plastic powder and granules with sealed design to prevent dust pollution.
  • Field Operations: Mobile support compatibility for concrete mixing plants and temporary bulk material storage in complex sites.

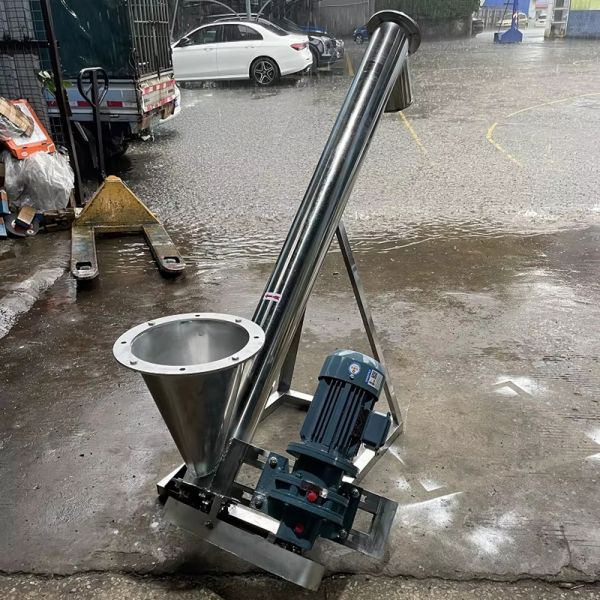

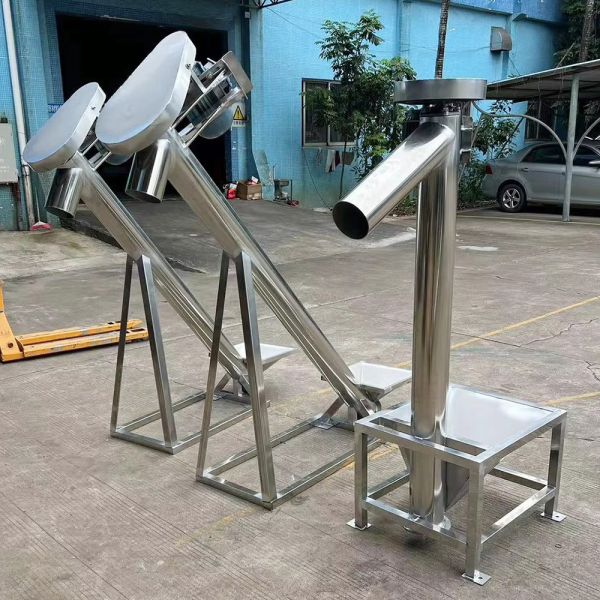

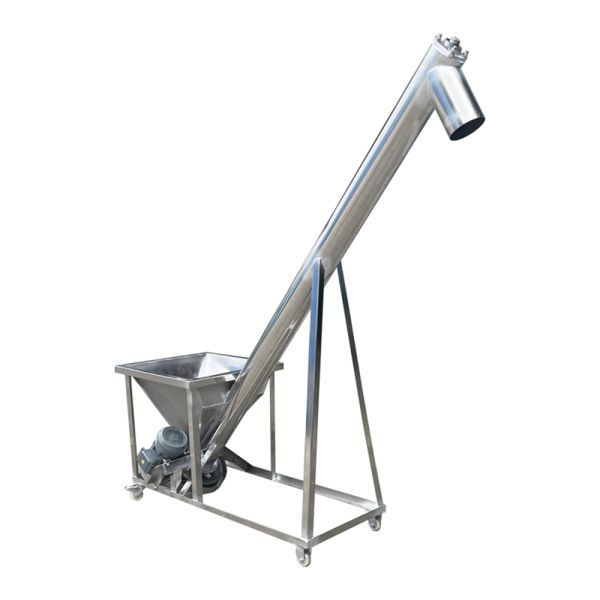

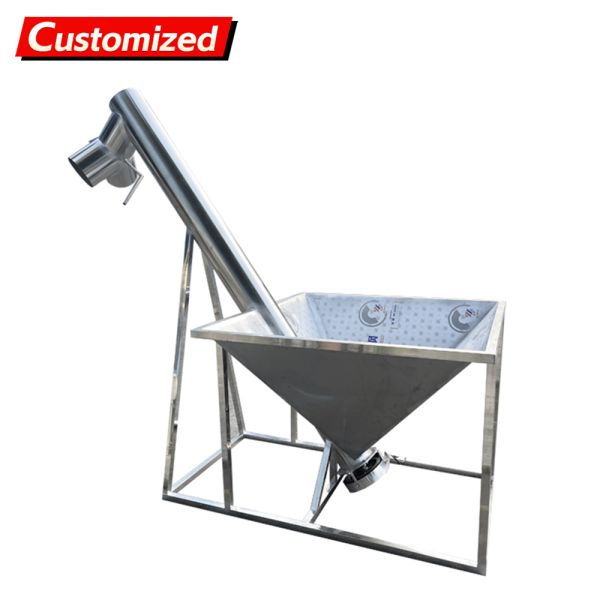

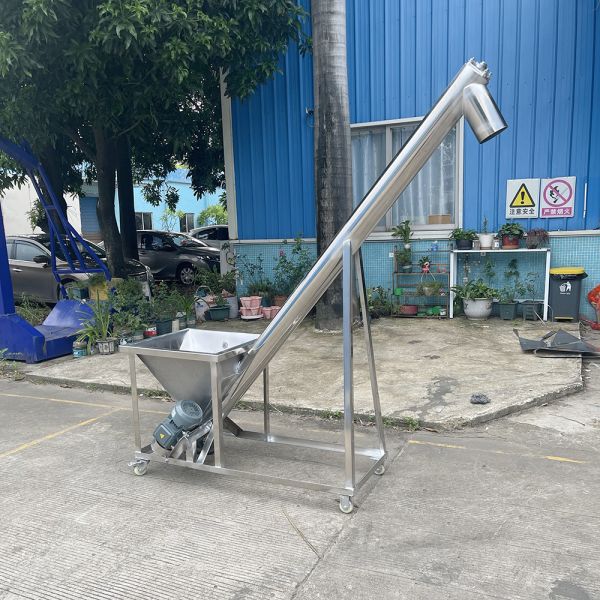

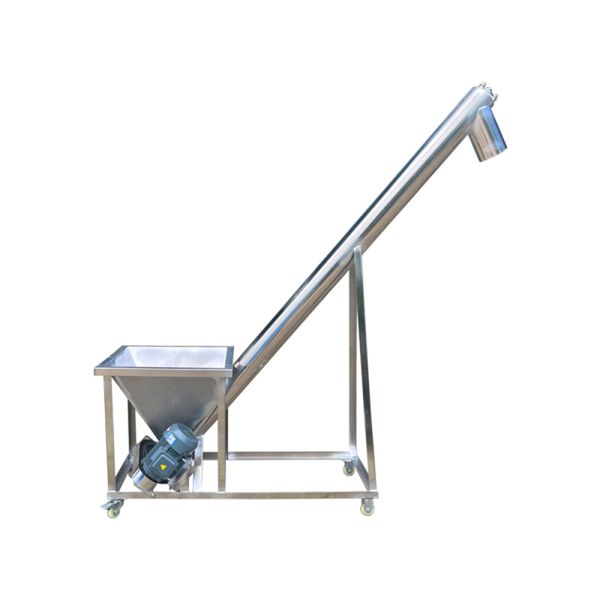

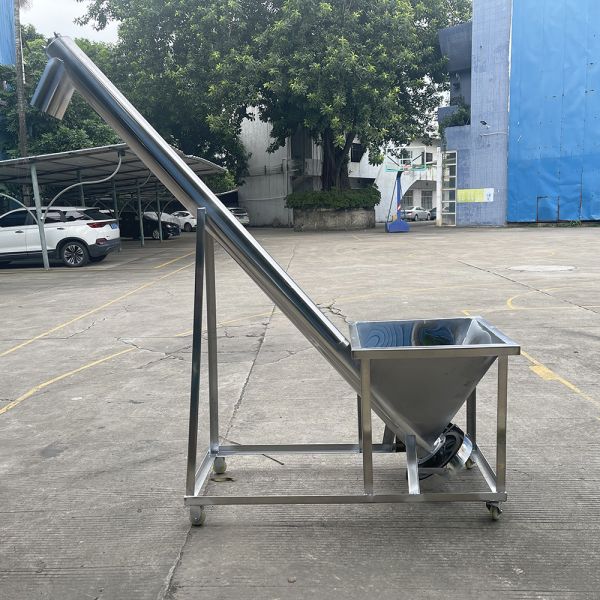

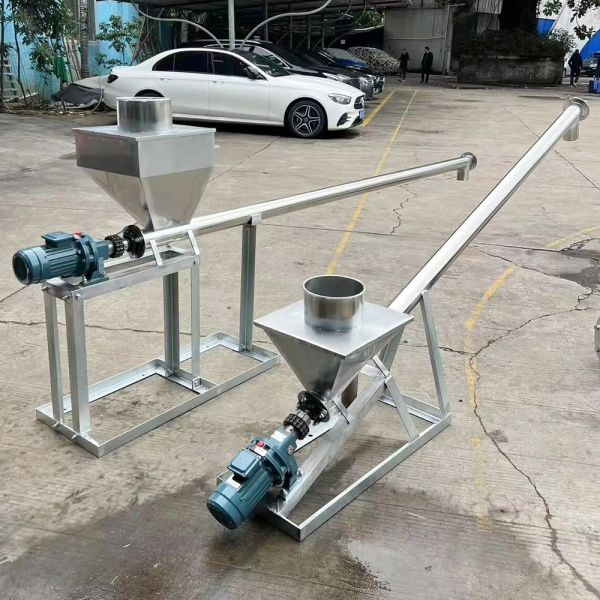

Product Images
Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator Stainless Steel Heat Resistant Screw Conveyor and Auger Feeder with Customized Vertical Elevator
