Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
Specifications
Model Number :
Kai001
Package Size :
800.00cm * 50.00cm * 100.00cm
Payment Terms :
T/T,Western Union
Usage :
Conveyor
Dimension(L*W*H) :
Customized
Price :
US$10,000~US$20,000 per pc
Function :
Transmission System
Material Feature :
Heat Resistant, Fire Resistant
Supply Ability :
10,000 pieces per month
Material :
Stainless Steel
Specification :
Customized
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory...
MOQ :
1 pc
Delivery Time :
20~35 working day
Speed :
High Speed
Feature :
High Efficiency
Place of Origin :
china
Structure :
Conveyor System
Packaging Details :
Wooden Case
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Certification :
CE/UL
Package Gross Weight :
200.000kg
Brand Name :
WeSeW
Machinery Test Report :
Provided
Description
Customized Spiral Rotary Screens for Wastewater/Sewage/Industrial Applications
Product Overview

Customized spiral rotary screens designed for wastewater, sewage, and industrial applications. These robust filtration systems efficiently separate solids from liquids in various processing environments.

Technical Specifications
Productivity 10000 L/Hour
Processing Type Filtration
Voltage 220 V
Power 2 kW (0.37-1.5 kW range)
Core Components Engine, Motor, PLC
Weight 500 kg
Usage Wastewater Treatment
Capacity 5-150 M³/h
Material Stainless Steel 304/316L
Certification CE Certificate; ISO9001
Warranty 1-3 Years
Application

Screw screen used for wastewater, sewage, and industrial applications. The screw screen for wastewater treatment consists of a screen basket, a conveyor screw, and a compaction section. It is suitable for applications where screenings may not or cannot be compacted.

Function

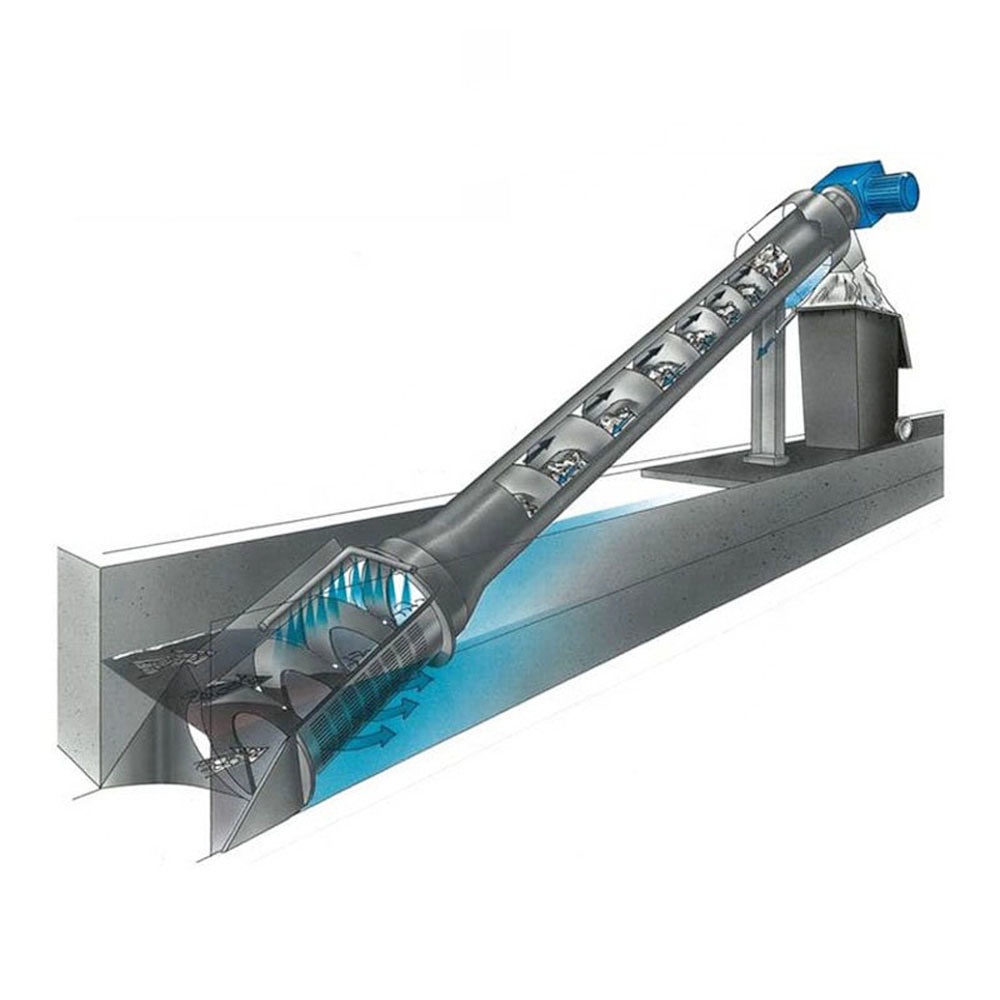

The process starts in the screen that holds back solids only. The internal part of the screen is continuously cleaned by brushes fixed on the outside diameter of the flighting. As the water runs through the screen, the shaftless spiral conveys the solids up towards the compaction module where the material is further de-watered. Depending on the material properties, screenings can be reduced by more than 50% of their original volume.

Main Features
  • Processing capacity: 10-150 m³/h
  • Screen mesh size ranging from 1 mm to 6 mm
  • Screen width ranging from 300 mm to 700 mm
  • Stainless steel casing
  • Shaftless spiral screw in SS304 or SS316L
  • Intermittent operation, slow r.p.m.
  • Variety of screen mesh sizes
  • Versatility: can be installed in a concrete channel on site or supplied with a self-supporting container (supplied on request)
  • Volume reduction up to 50%
  • Absence of inside bearings
  • No mechanical components in contact with the product handled
  • Shaftless spiral, therefore no jamming or blocking even with fibrous products
  • Long-life screw brushes
  • Low investment costs

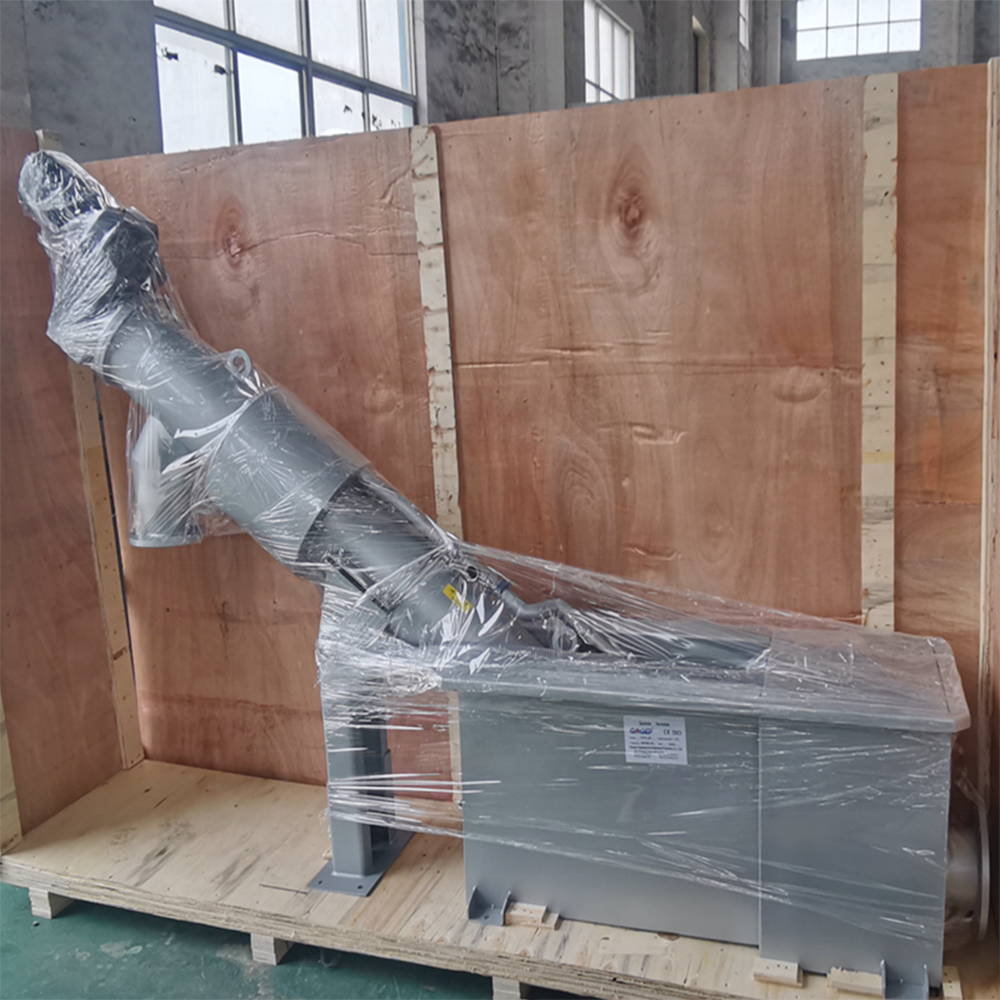

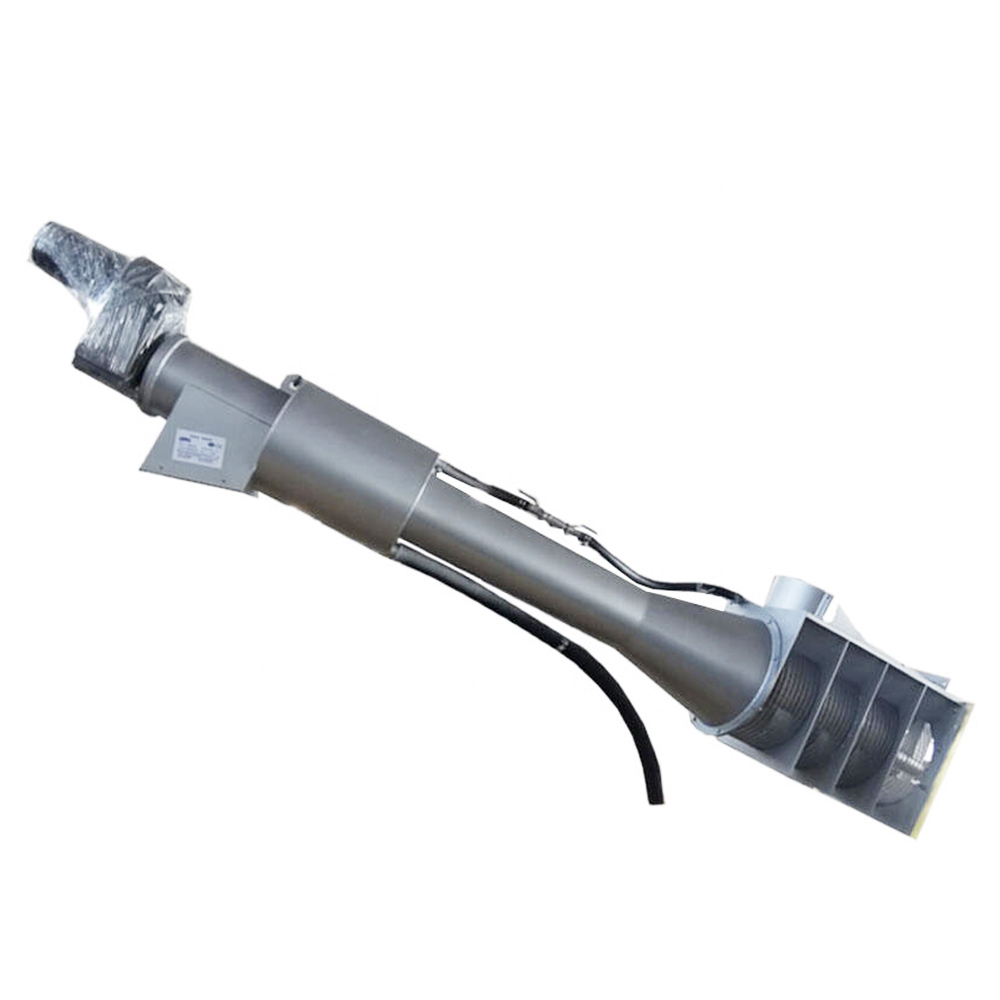

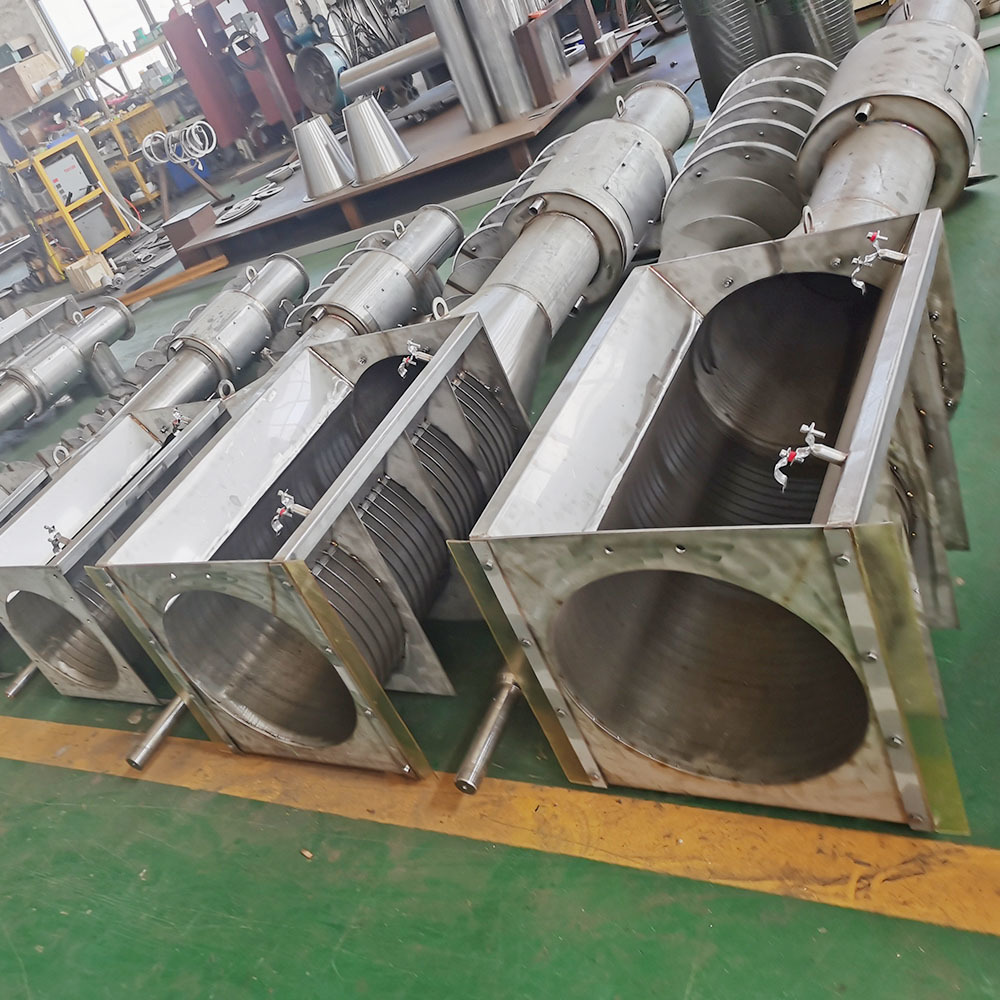

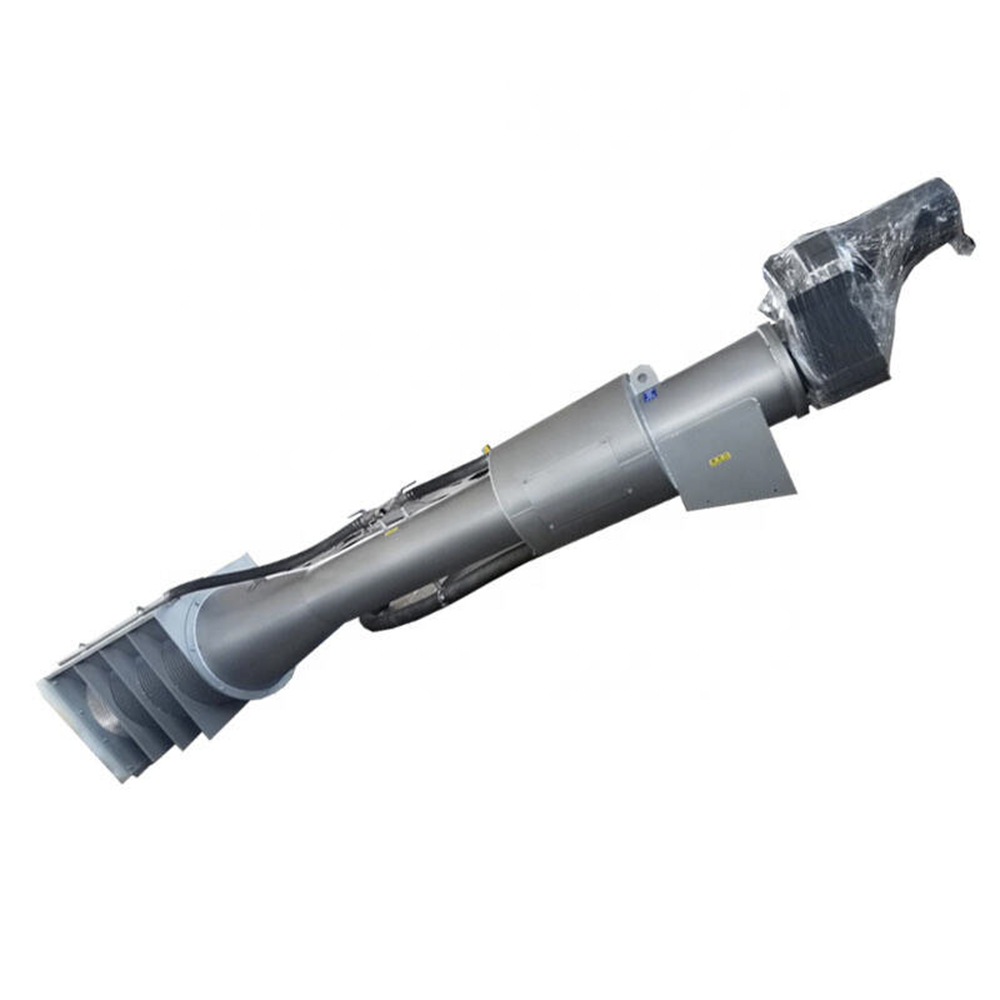

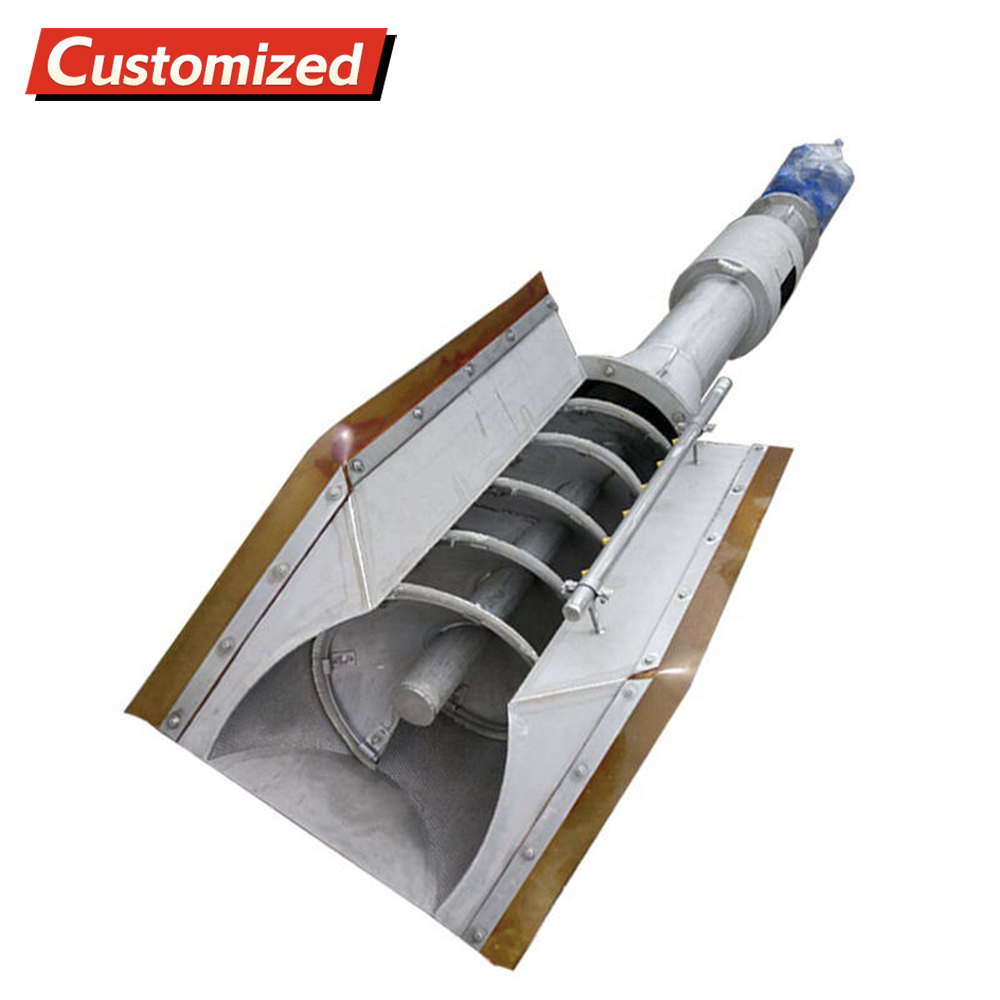

Product Images
Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment Customized Stainless Steel 304/316L Spiral Rotary Screen for Wastewater Treatment
