Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
Specifications
Model Number :
Kai001
Package Size :
800.00cm * 50.00cm * 100.00cm
Payment Terms :
T/T,Western Union
Usage :
Conveyor
Dimension(L*W*H) :
Customized
Price :
US$10,000~US$20,000 per pc
Function :
Transmission System
Material Feature :
Heat Resistant, Fire Resistant
Supply Ability :
10,000 pieces per month
Material :
Stainless Steel
Specification :
Customized
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory...
MOQ :
1 pc
Delivery Time :
20~35 working day
Speed :
High Speed
Feature :
High Efficiency
Place of Origin :
china
Structure :
Conveyor System
Packaging Details :
Wooden Case
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Certification :
CE/UL
Package Gross Weight :
200.000kg
Brand Name :
WeSeW
Machinery Test Report :
Provided
Description

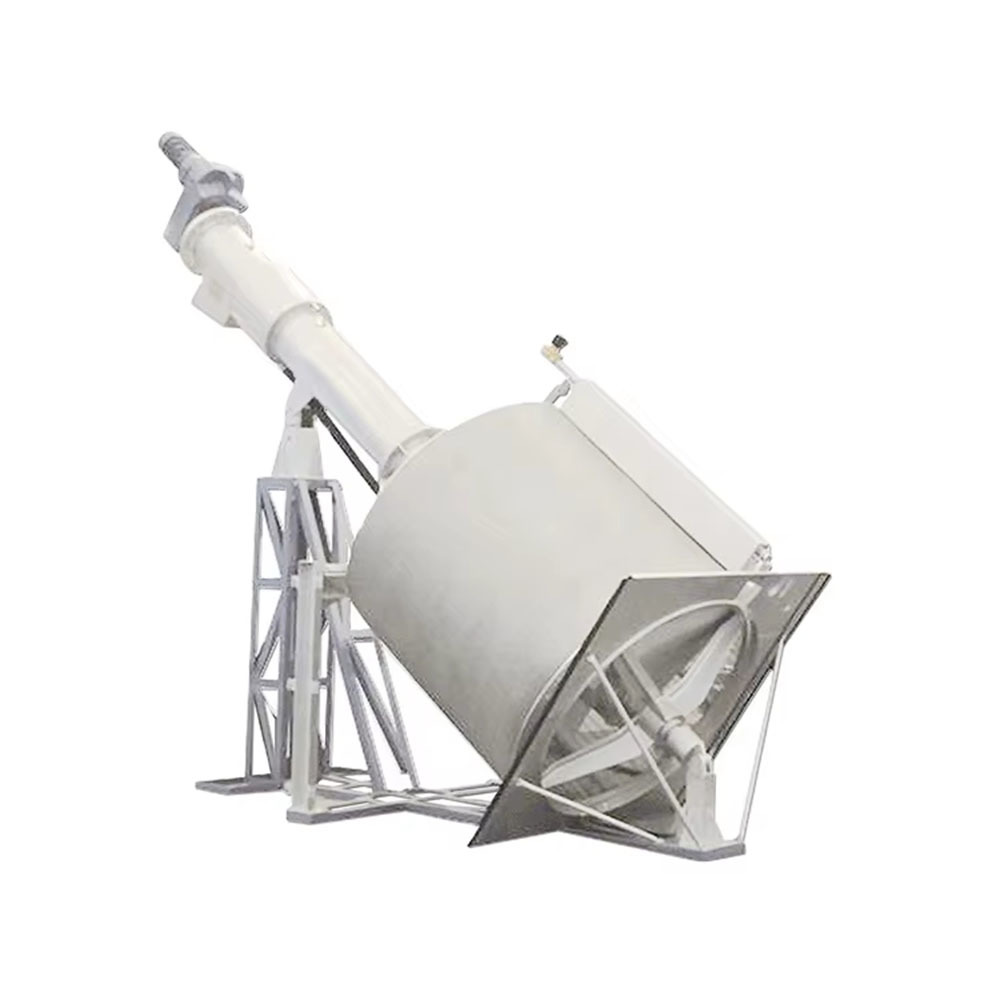

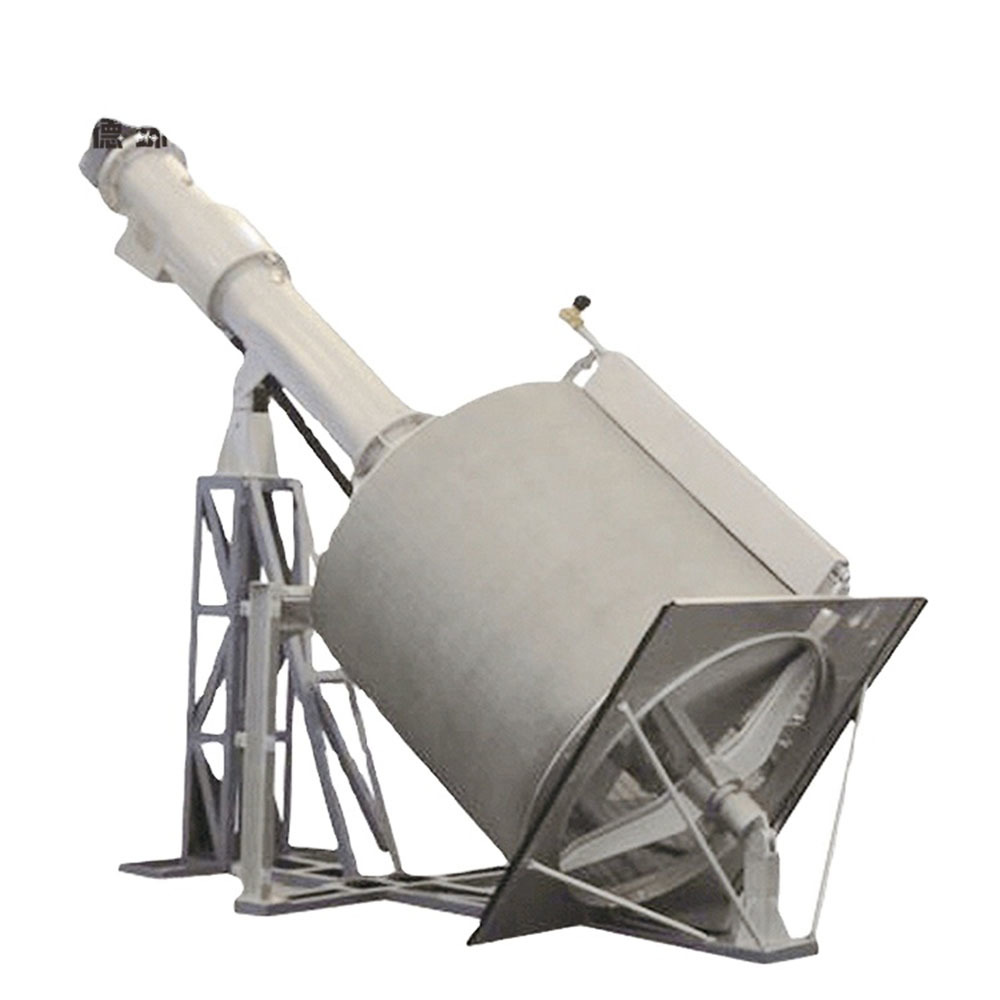

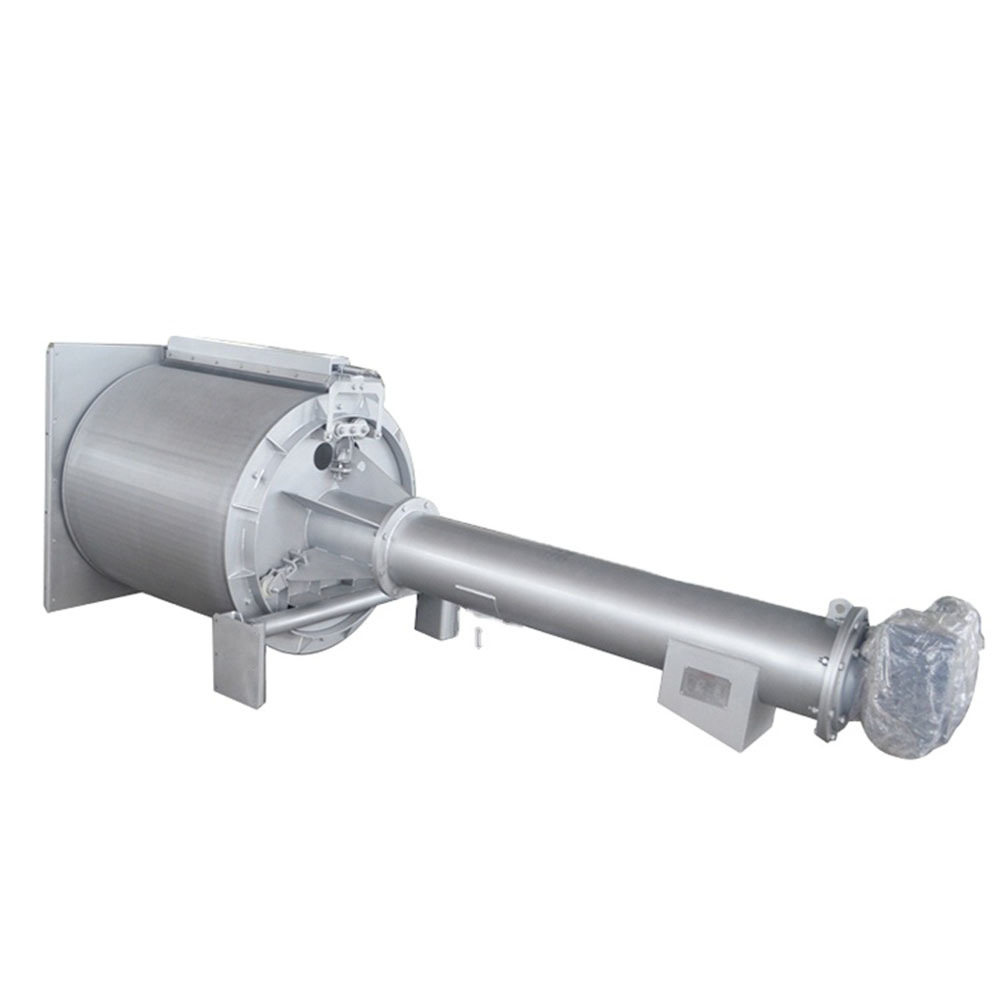

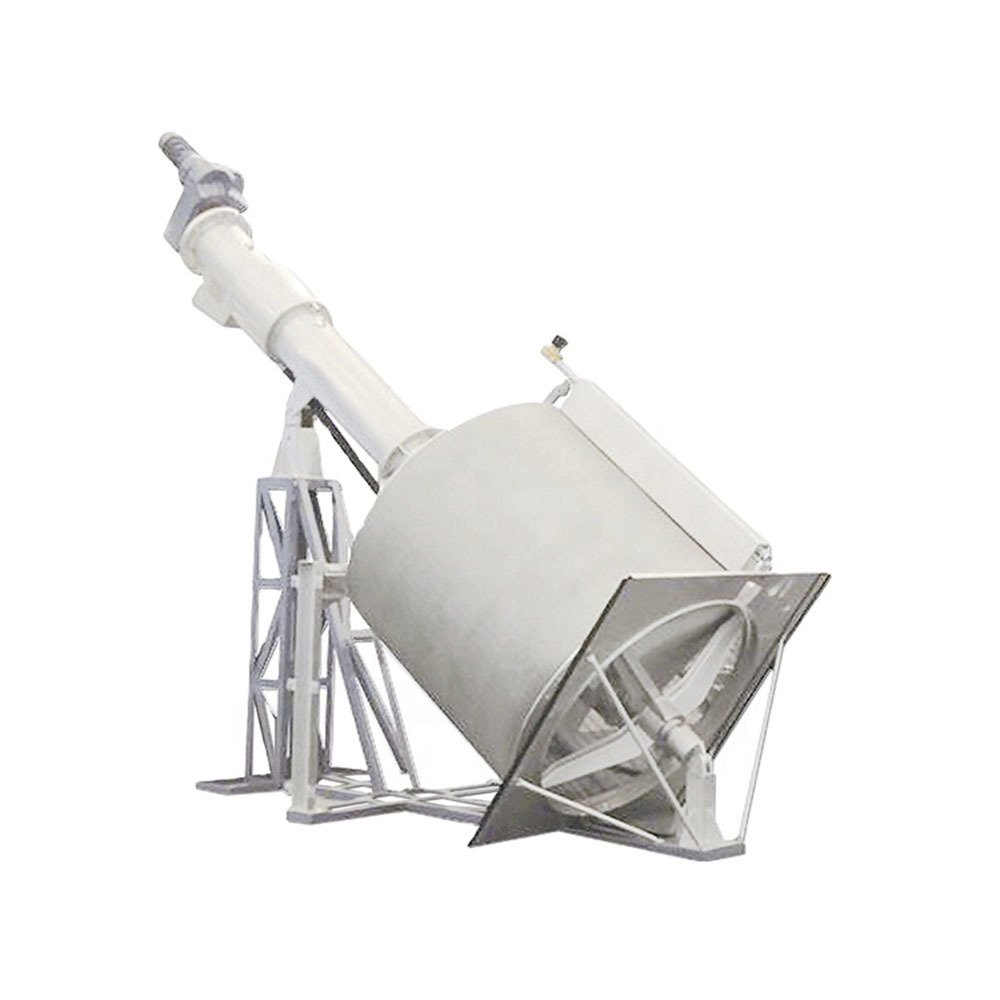

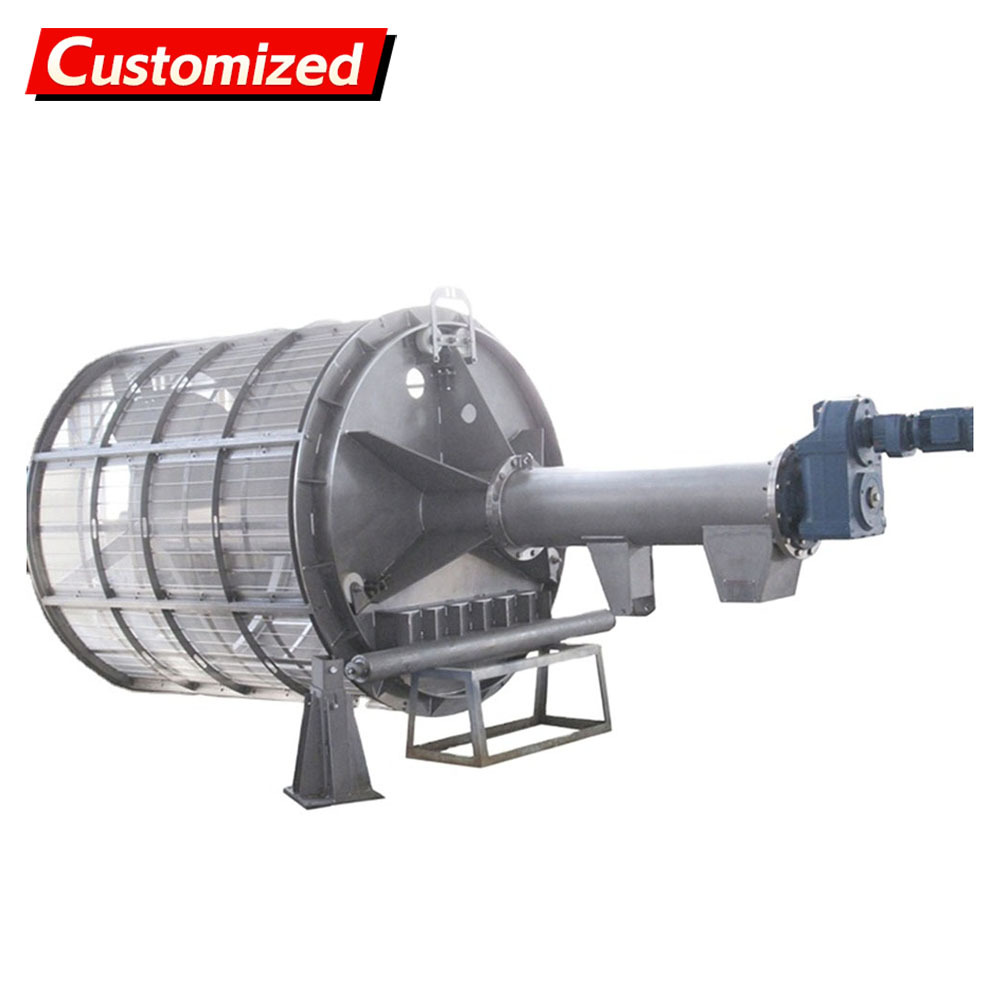

Custom Rotary Drum Screens
Customized rotary screens are available for wastewater treatment, industrial, and agricultural applications. Factory direct sales.
Productivity 1000L/Hour
Processing Type Filtration
Voltage 380 V
Power 1 kW
Core Components Motor
Warranty 1 Year
Weight 1000 kg
Brand Name Ryde
Use Solid-liquid separation
Material SS304/SS316
Grid Gap 0.5mm-5mm
Optional Customize
Water Flow Rate 80-6750m³/h
Drum Diameter 600mm-2600mm
Drum Length 600mm-2400mm
Power Range 0.75kw-3kw
Product Overview

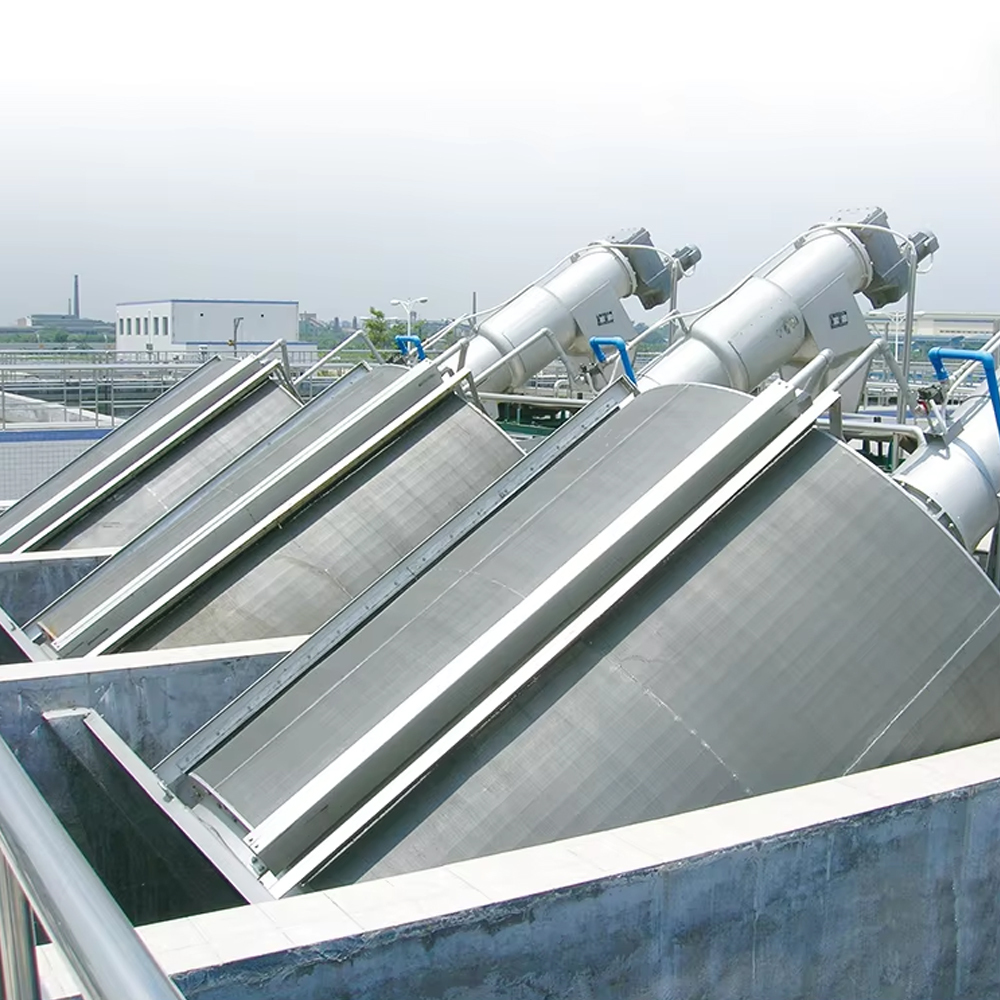

Widely used in inlets containing floating objects, such as river channels, bar screen wells, water pumping stations, hydropower stations, waterworks, power plants, and steel mills. Effectively intercepts sediments and dregs from sewage for preliminary purification, ensuring normal operation of subsequent treatment processes.
Ryde 2G Rotary Drum Screen is widely applied for wastewater treatment projects including urban wastewater, industrial wastewater, food processing industry, and paper industry. This equipment effectively removes scum, short fibers, and suspended matter from water intake, discharging them after dewatering. Suitable for high-precision processes with small grid gaps and low canal depth requirements.
Key Features
  • Low hydraulic loss, high efficiency, and large processing capacity
  • Complete stainless steel structure for easy maintenance and long service life
  • Self-cleaning working mechanism for continuous operation
  • Multi-functional system with compact structure design

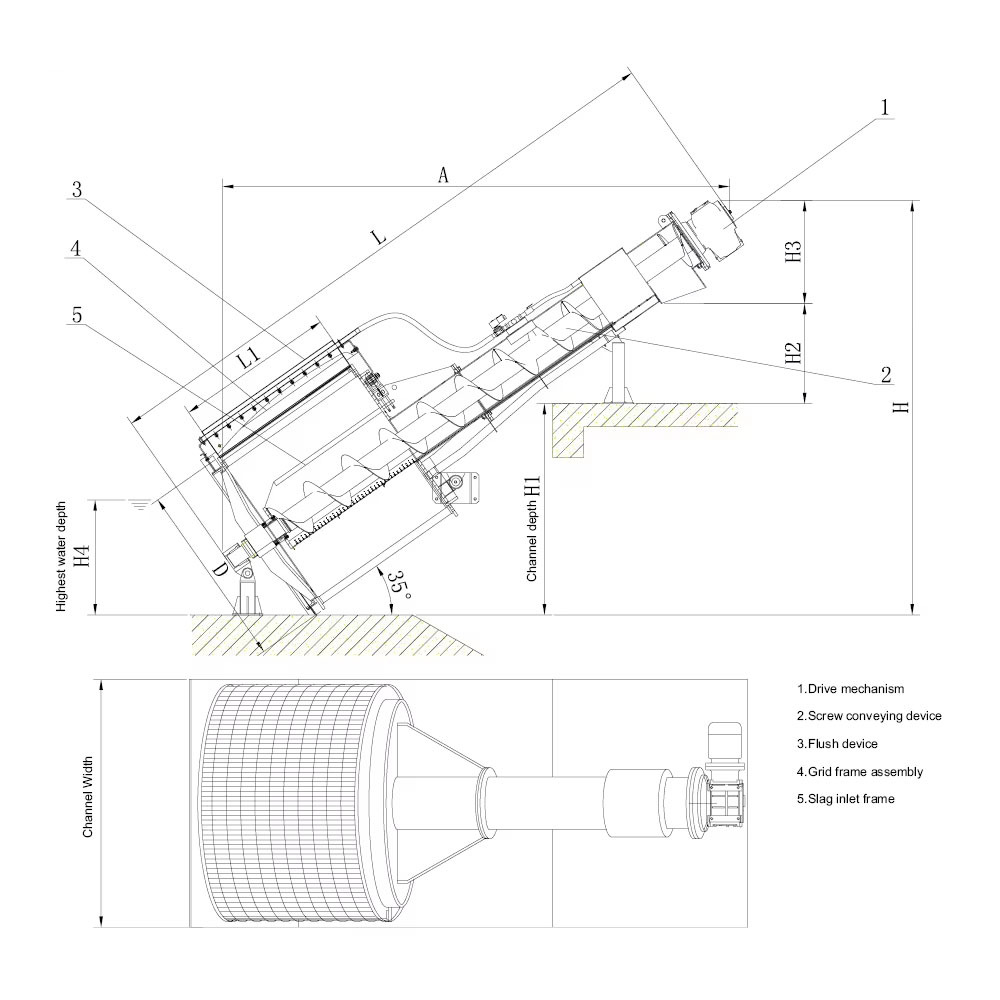

This equipment integrates four functions: intercepting dregs, removing dregs, spiral lifting, and pressing dewatering. Mounted in the canal at a 35-degree angle, wastewater flows into the drum from the inlet port. Water flows out from the drum side while the grid intercepts dregs. The drum rotates at a fixed speed, with nylon brush and flush water spray nozzle systems removing dregs and exporting them through spiral lifting. Dehydrated dregs are delivered to containers or transportation equipment in a clean, odor-free process.
Product Gallery
Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment Customized Stainless Steel Rotary Drum Screen for High Efficiency Wastewater Treatment
