Specifications
Model Number :
SS-717
Applicable Industries :
Manufacturing Plant, Energy & Mining
Price :
Price Negotiation
Feeding Method :
Screw Auger
Certification :
CE/UL
Feeding Mechanism :
Screw Auger
MOQ :
1 pc
Delivery Time :
10-20 working day
Customization :
Available Customized Request
Payment Terms :
T/T,Western Union
Specification :
Customized
Supply Ability :
10,000 pieces per month
Key Selling Points :
High-Accuracy
Brand Name :
WeSeW
Structure :
Roller Conveyor
Packaging Details :
Wooden Case
Place of Origin :
china
Outlet Type :
Discharge Spout or Slide Gate
Description
Custom Stainless Steel Screw Conveyor Machine | Automatic Powder Feeder
This stainless steel screw conveyor machine is matched with an automatic powder feeder for powder material filling and conveying. Suitable for chemical, grain, and mining industries. Features high precision feeding, fully sealed conveying, and easy cleaning.
Get Your Quote Now
System Overview

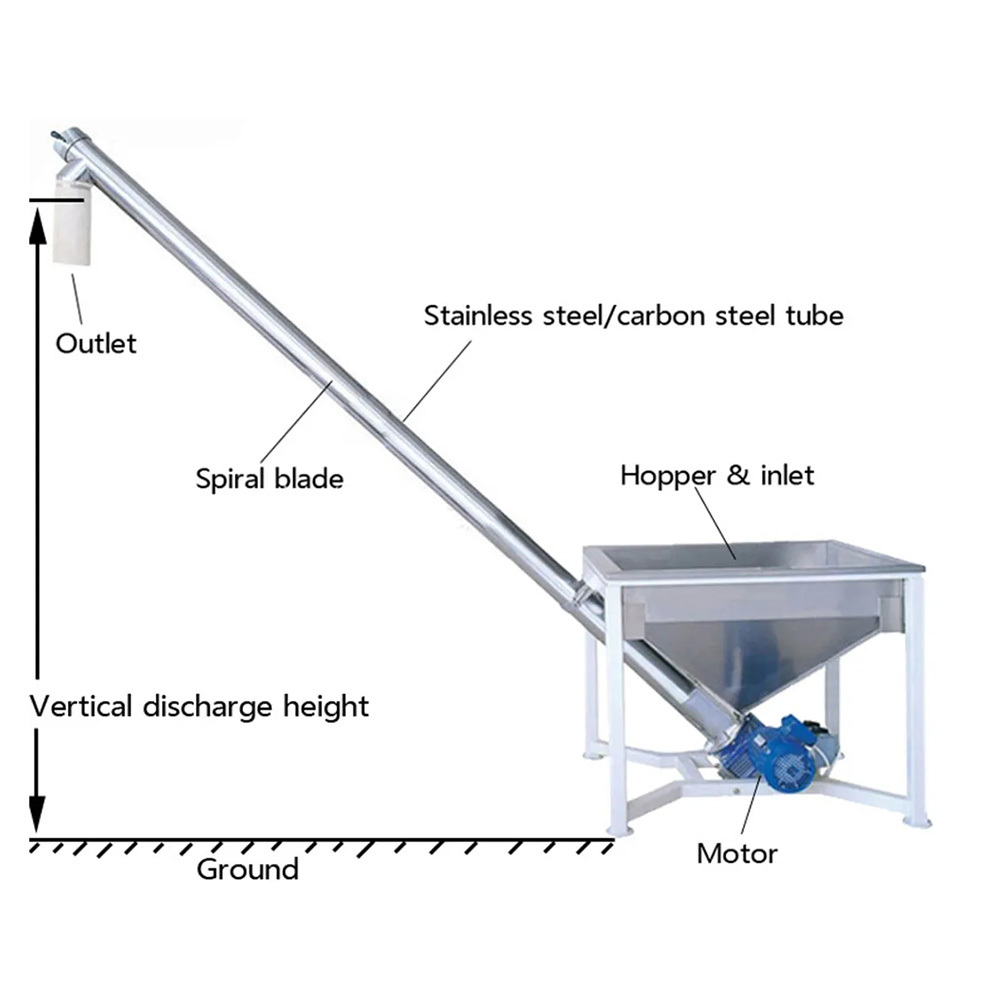

This integrated system combines a stainless steel screw conveyor and an automatic powder feeder. The screw conveyor transfers bulk powder materials from the storage hopper upward to the feeding station. Inside the tube, rotating spiral blades continuously lift raw materials by friction and thrust force. After materials arrive at the feeding unit, the servo-controlled feeding screw accurately discharges powder into containers. Equipped with a touchscreen control panel, operators can set feeding weight and running parameters. It realizes automatic powder conveying and quantitative filling in one production line.
Technical Specifications
Screw conveyor LS-100 LS-160 LS-200 LS-250 LS-315 LS-400
Spiral diameter(mm) 100 160 200 250 315 400
Pitch(mm) 100 160 200 250 315 355
Speed(r/min) 100 120 90 90 75 75
Conveying capacity Q Φ=0.33(m³/h) 2.2 7.6 11 22 36.4 66.1
Power Pd 1=10m(kw) 1.1 1.5 2.2 2.4 3.2 5.1
Power Pd 1=30m(kw) 1.6 2.8 3.2 5.3 8.4 11
Core Advantages
  • High feeding accuracy: The servo motor drives the metering screw, achieving precise quantitative powder discharging. It effectively reduces material error and improves packaging consistency for finished products.
  • Fully sealed conveying design: The closed pipeline prevents powder leakage and dust pollution. It protects operators and avoids material waste, ideal for fine and dusty powders.
  • Stainless steel construction: All material contact parts adopt stainless steel. Smooth interior surface is easy to disassemble, rinse and sanitize. It prevents cross-contamination and meets industrial hygiene requirements.
  • Intelligent control & stable operation: The touchscreen HMI supports parameter adjustment, data recording and fault alarm. The whole unit runs smoothly with low noise, simple operation and low maintenance cost.
Application Fields
This equipment serves multiple industrial sectors. In the grain industry, it conveys and packs grain powder, flour and starch. In chemical production, it handles chemical powder, additives and pigments. In mining industry, it processes mineral powder and fine ore materials. It is also widely used in pharmaceutical, food and plastic industries for powder dosing and packaging. It is an all-in-one automatic solution for enterprises that need continuous powder transportation and quantitative filling, greatly improving production automation level and workshop efficiency.

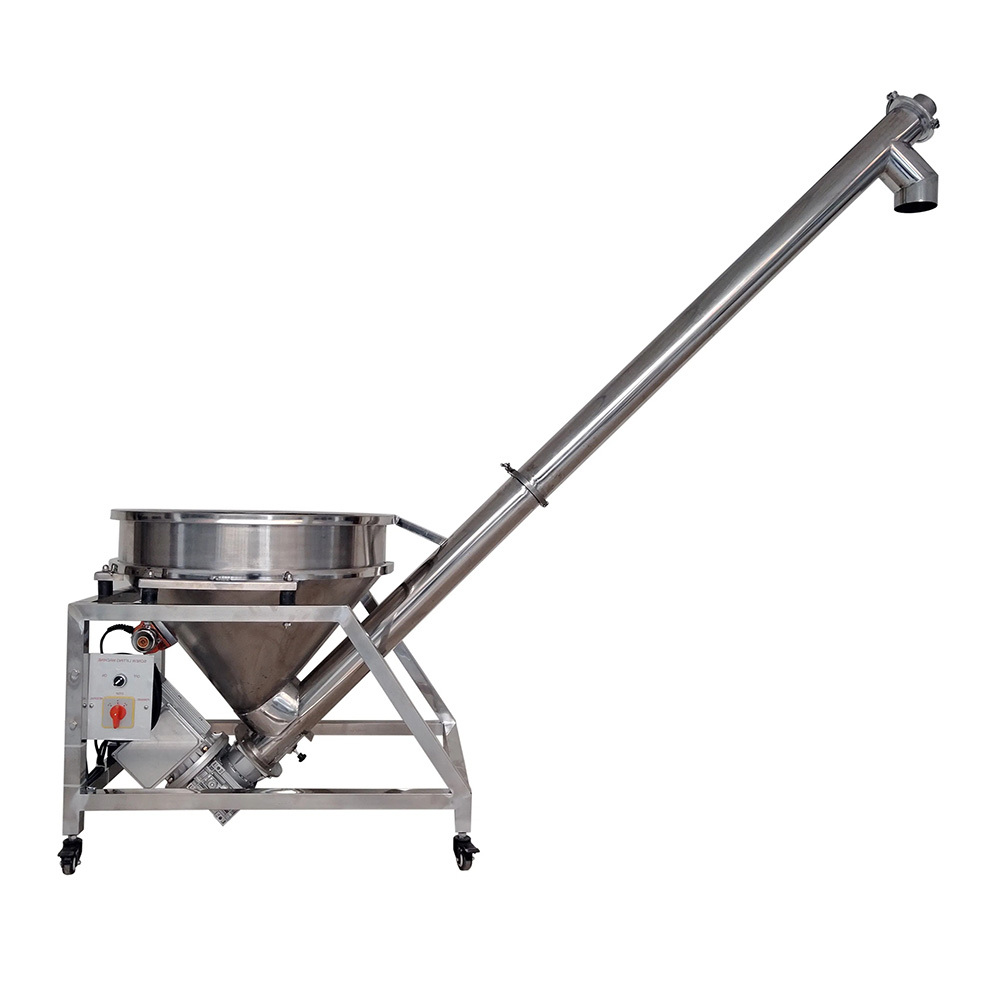

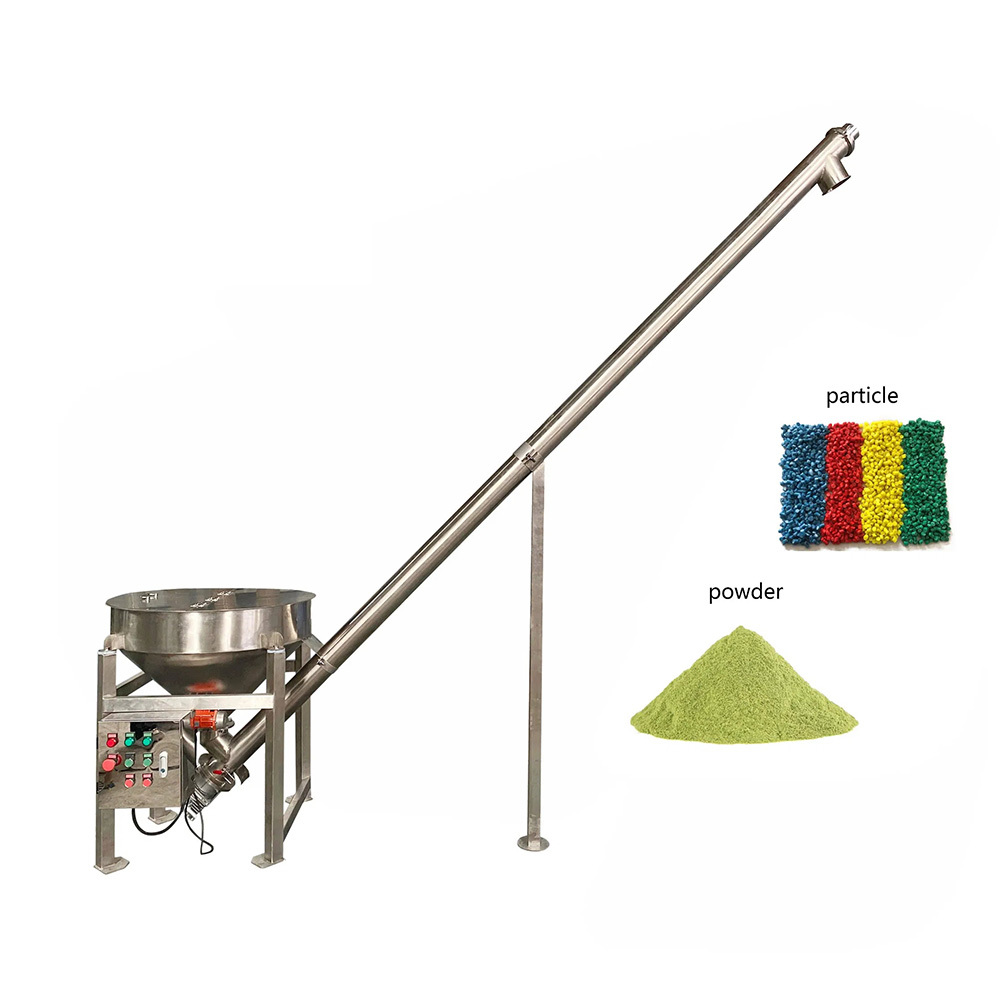

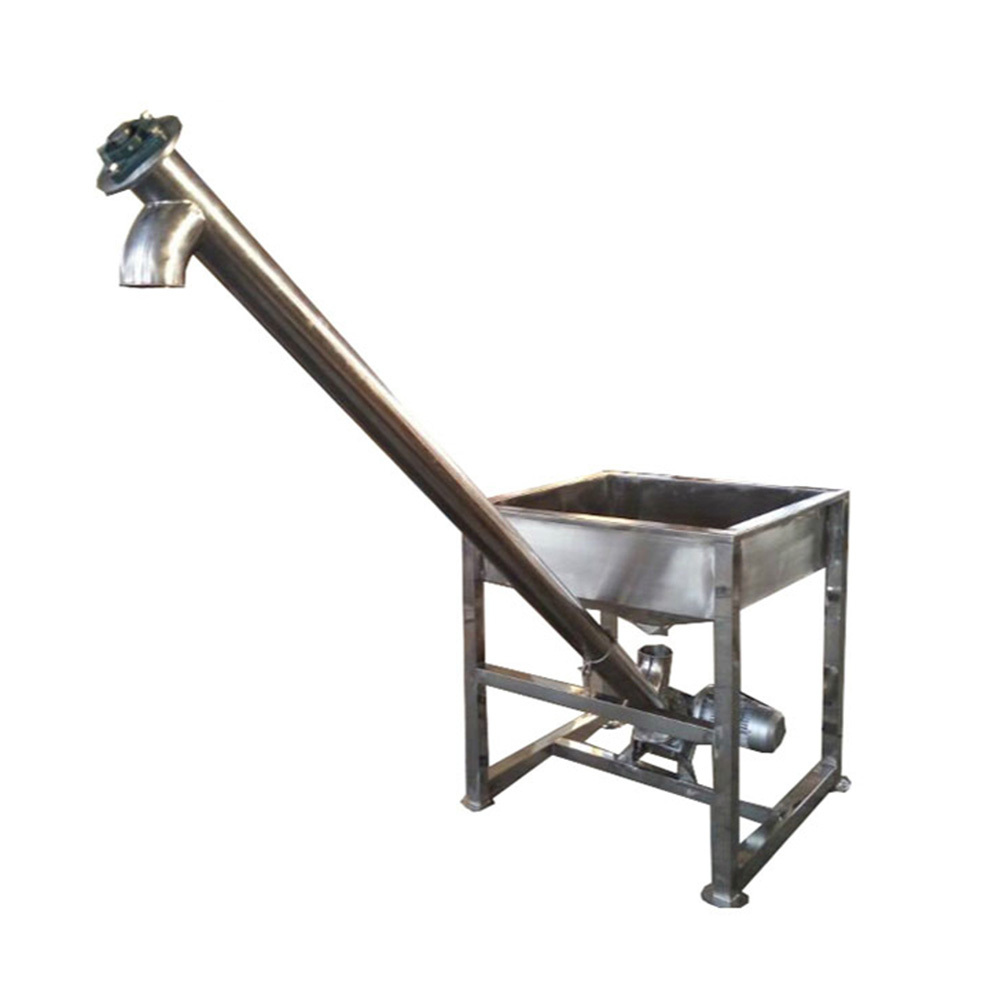

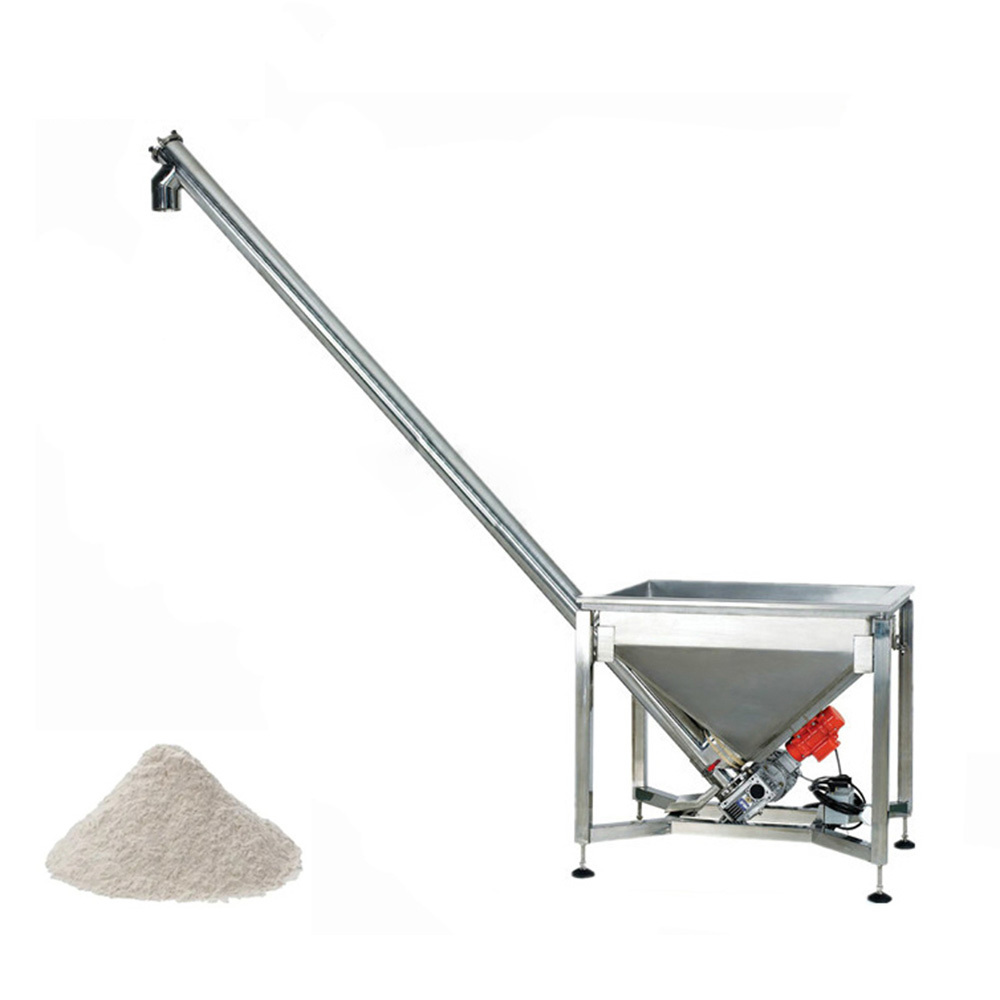

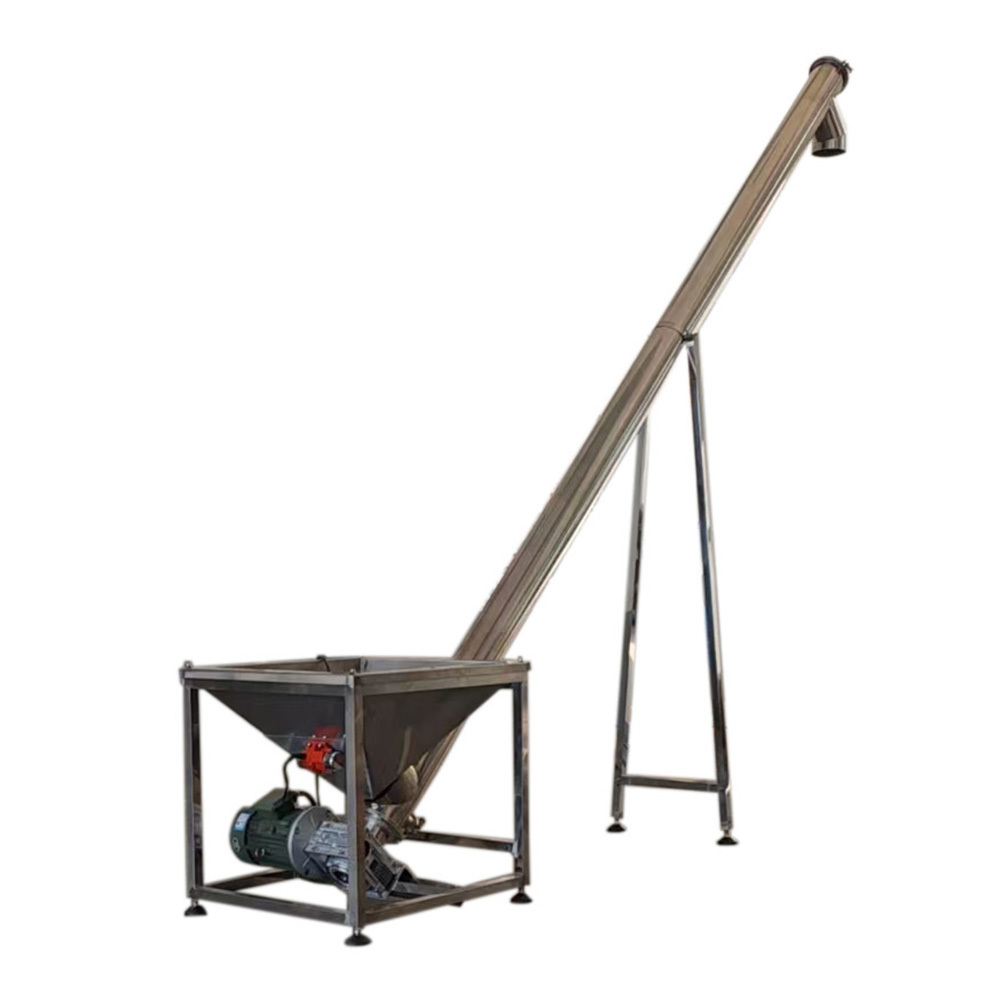

Product Images
High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding High-Accuracy Stainless Steel Screw Conveyor Machine with Fully Sealed Conveying for Automatic Powder Feeding
