Specifications
Model Number :
conveyor 1
Material Feature :
Heat Resistant, Fire Resistant
MOQ :
1 pc
Delivery Time :
20~35 working day
Machinery Test Report :
Provided
Function :
Transmission System
Payment Terms :
T/T,Western Union
Width or Diameter :
Customized
Structure :
Conveyor System
Packaging Details :
Wooden Case
Feature :
High Efficiency
Brand Name :
WeSeW
Material :
Stainless Steel
Price :
US$8,000~US$30,000 per pc
Usage :
Conveyor
Customization :
Available Customized Request
Supply Ability :
10,000 pieces per month
Dimension(L*W*H) :
Customized
Speed :
High Speed
Certification :
CE/UL
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Place of Origin :
china
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory...
Description
Heat Resistant Trough Screw Auger Conveyor with Multiple Inlets & Outlets for Dry Bulk Material Handling
Trough Screw Conveyor is a continuous conveying equipment used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device. Single or combination of multiple screw equipment can be used to integrate with each other to meet particular on-site requirements. It has trough type tube with multiple inlets and outlets, which also has inclination angle of maximum 20°. The rotation of the blade initiated by the motor, then material transferred along the spiral to the outlets.
Key Features
  • Customizable Conveyor Length: Length can be customized according to specific needs
  • Customizable Screw Pitch: Pitch can be adjusted to meet different material requirements
  • Multiple Inlets and Outlets: Machine can be configured with multiple inlets and outlets based on working conditions
  • Sealed Structure: Whole sealing structure with cover ensures no pollution to the environment
  • Heat and Fire Resistant: Material features include oil, heat, and fire resistance for harsh environments
Technical Parameters - LS Type Screw Conveyor
Type LS160 LS200 LS250 LS315 LS400 LS500 LS630 LS800 LS1000 LS1250
Diameter (mm) 160 200 250 315 400 500 630 800 1000 1250
Screw Pitch (mm) 160 200 250 315 355 400 450 500 560 630
n=112, Q=8 8 14 24 34 64 100 145 208 388 388
n=90, Q=7 7 12 20 26 52 80 116 165 320 320
n=71, Q=6 6 10 16 21 41 64 94 130 260 260
n=50, Q=4 4 7 13 16 34 52 80 110 150 200
n - Rotation Speed (r/min), Allowable Deviation < 10%
Q - Capacity (m³/h)
Filling Factor = 0.33
Note: All parameters are for reference only, we can design and manufacture as per your requirements.
Additional Advantages
  • With cover, whole sealing structure, without pollution to the environment
  • Conveyor length can be customized according to your need
  • Simple structure, use little material to manufacture, save cost for you
  • Conveyor angle can be 0-30 degree. Save space on the site
  • Screw pitch can be customized according to require of different material
  • According to real working conditions, trough screw conveyor machine can be multiple inlets and outlets
  • Adopts hanging bearing to connect screw blades which is longer than 3-4m
  • Adopts the method of spot welding to weld spiral blade on the screw shaft

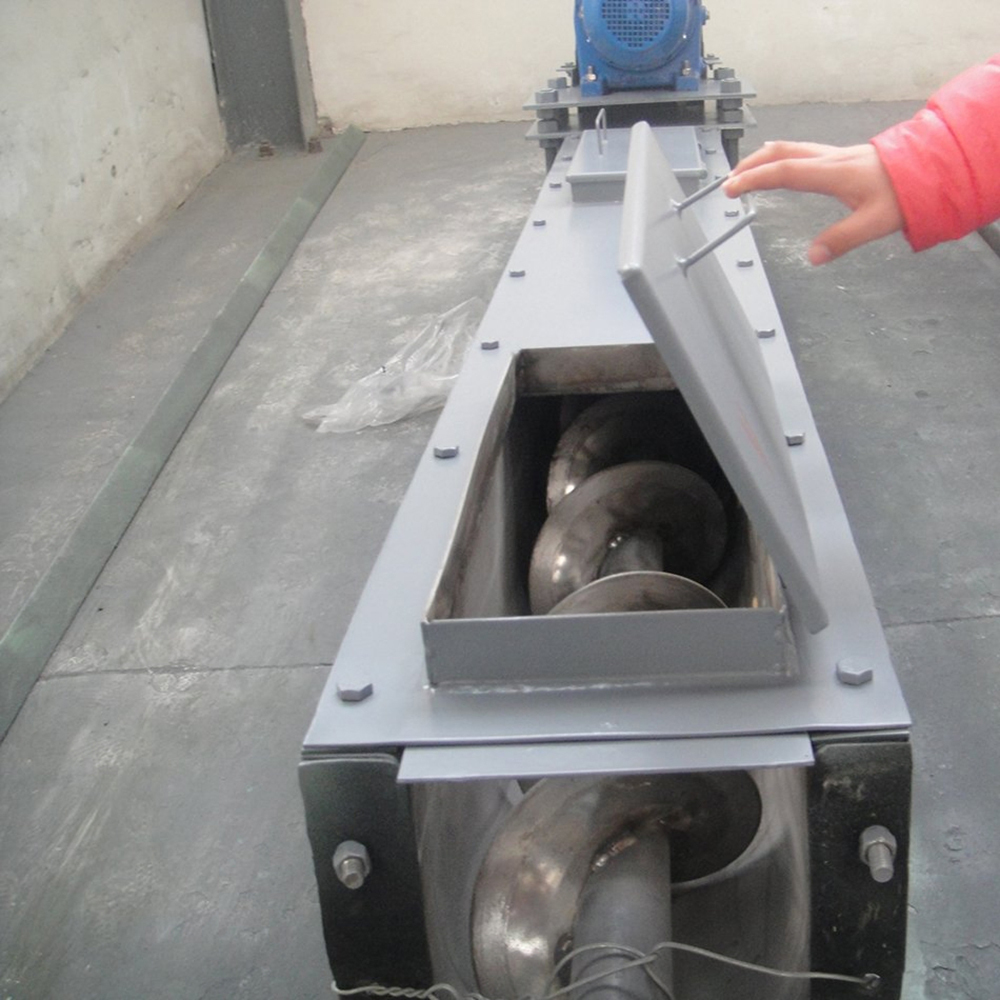

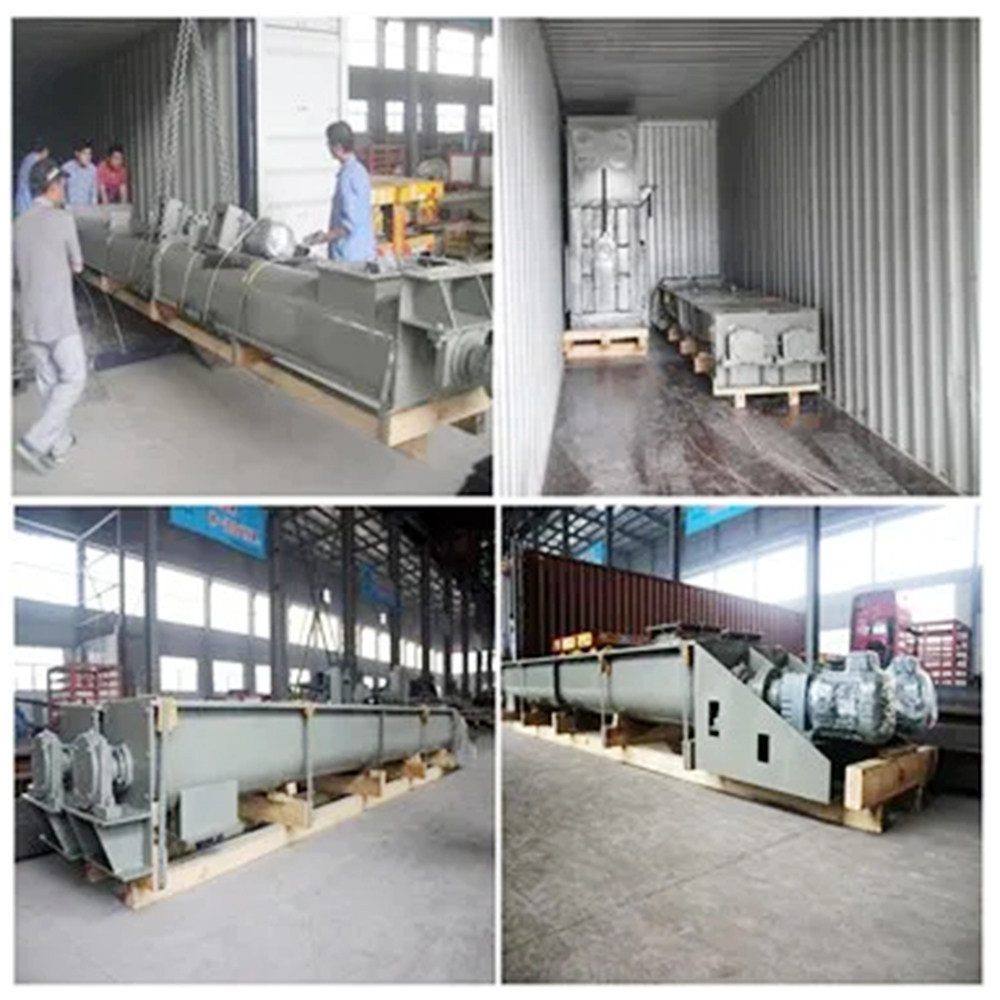

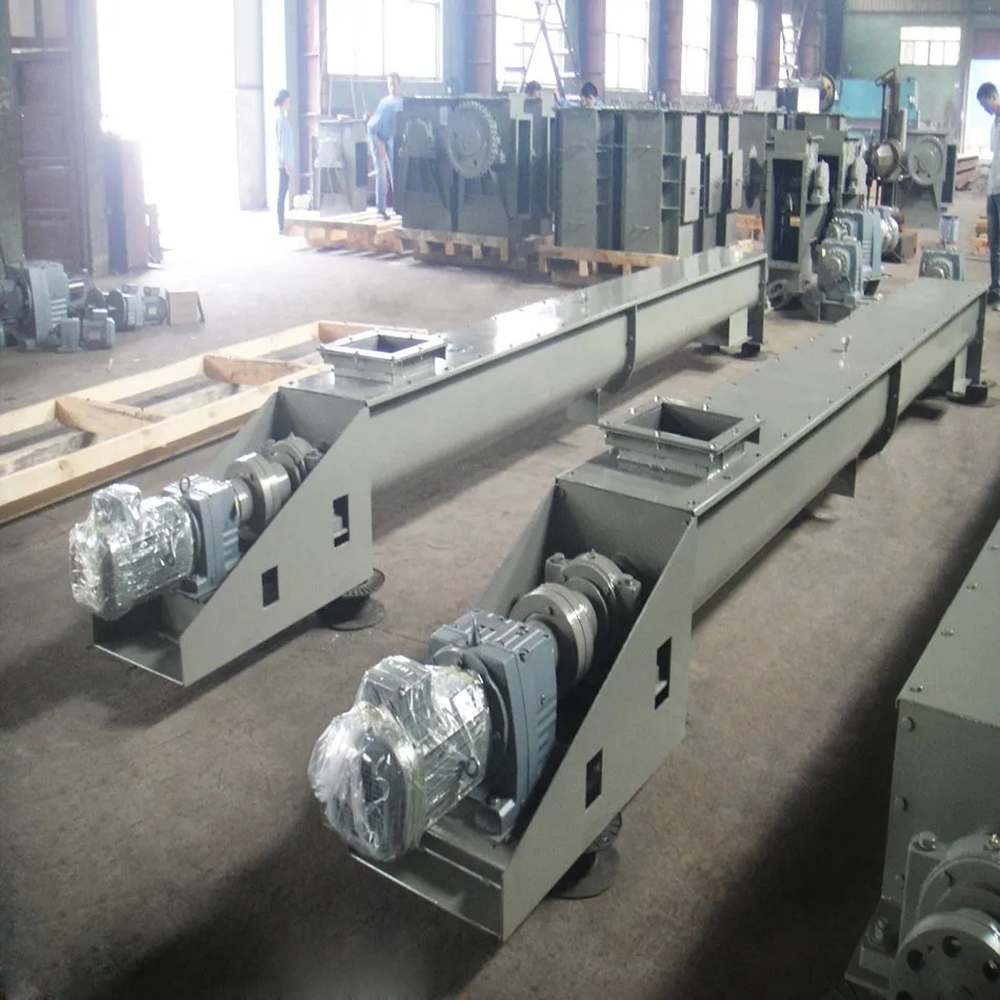

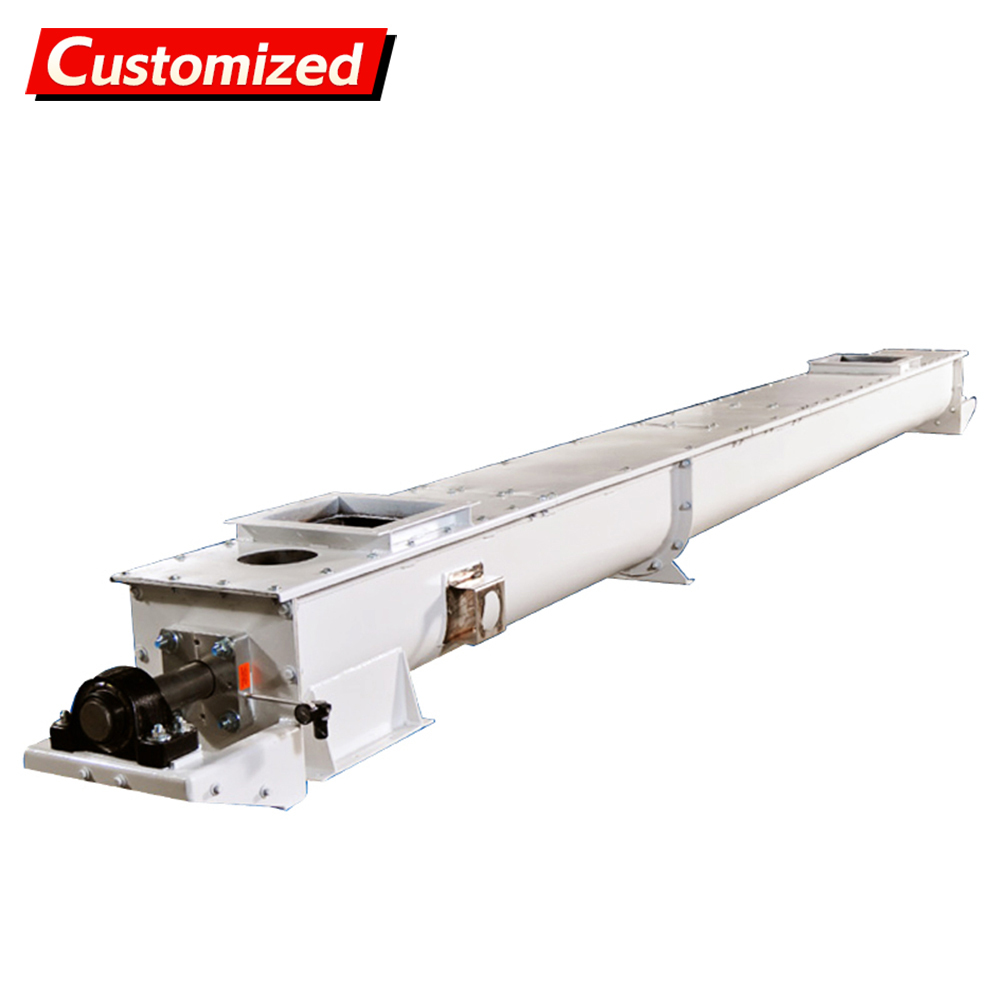

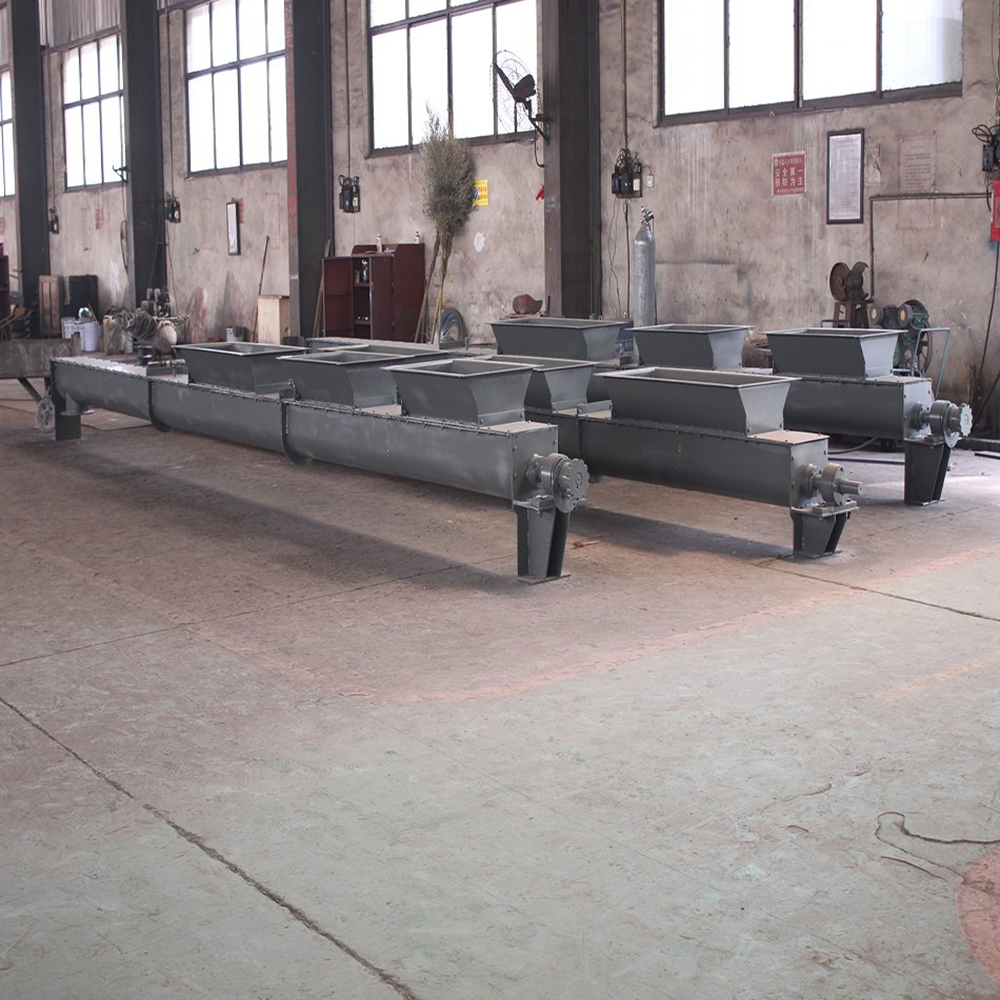

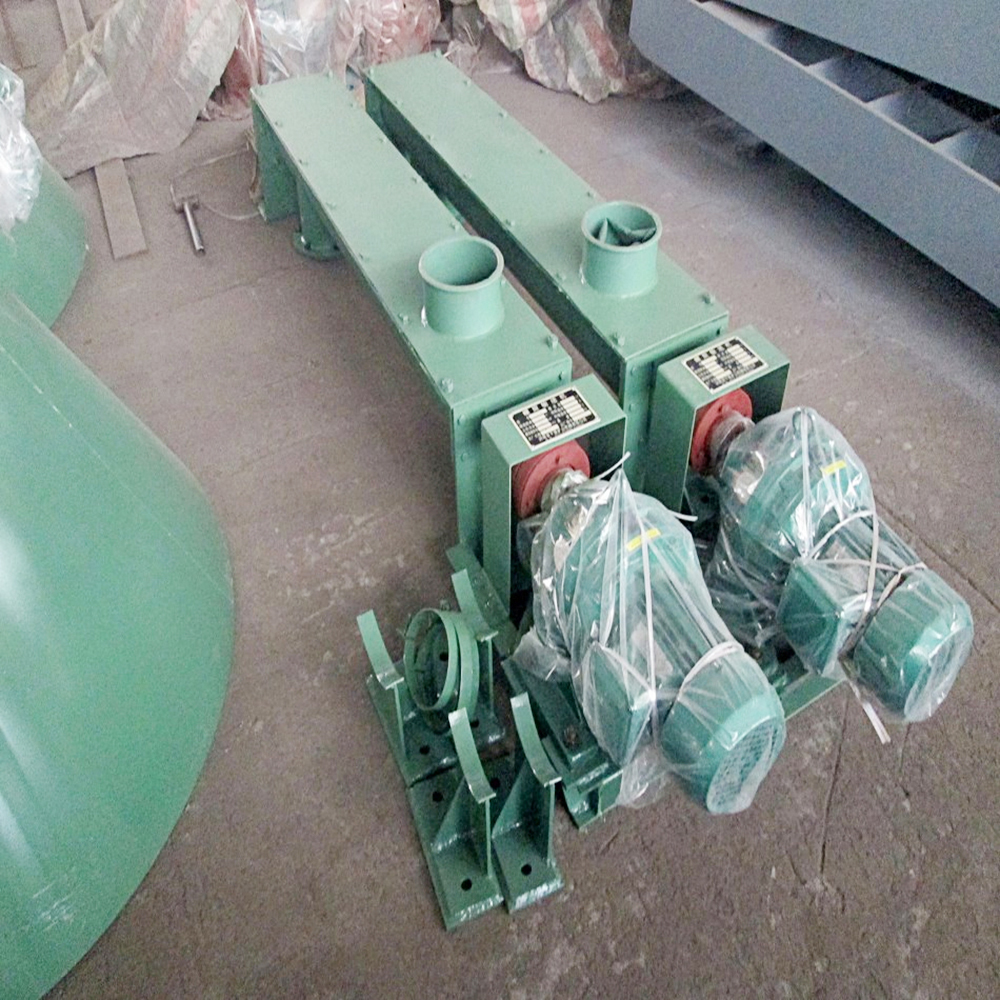

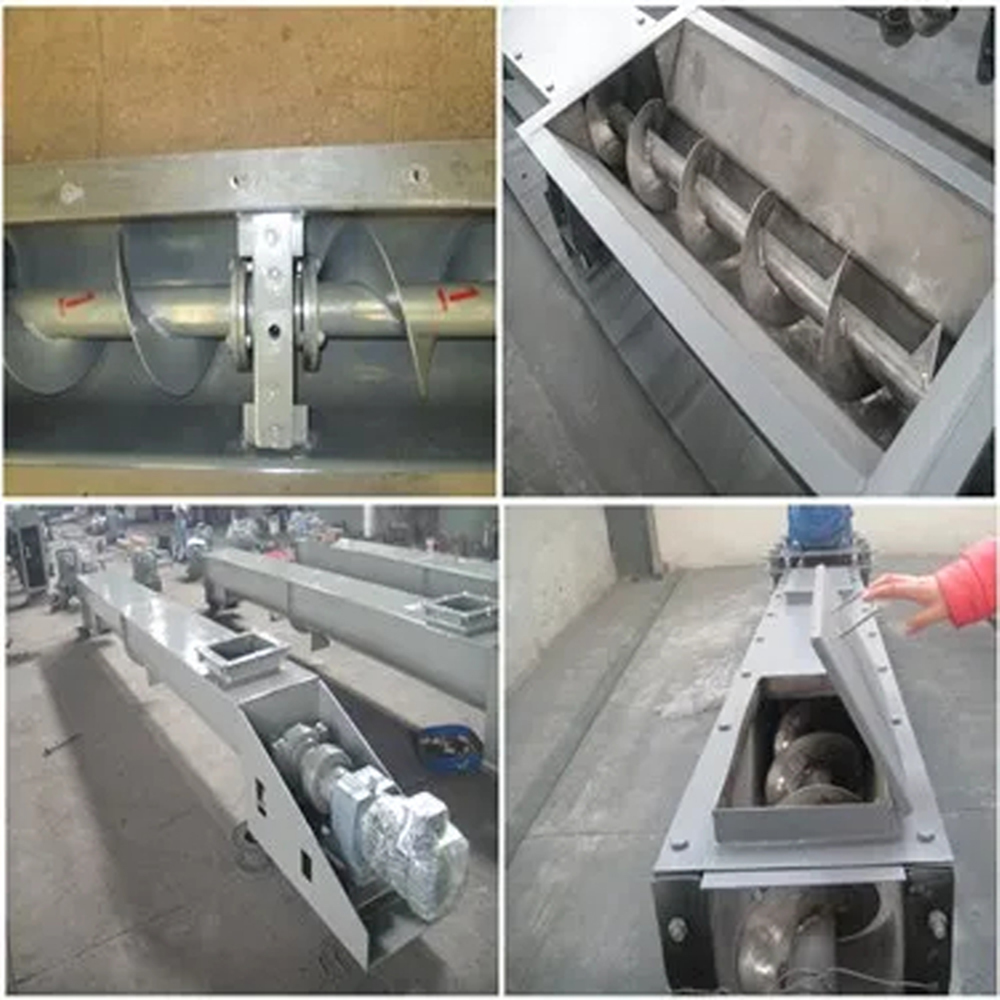

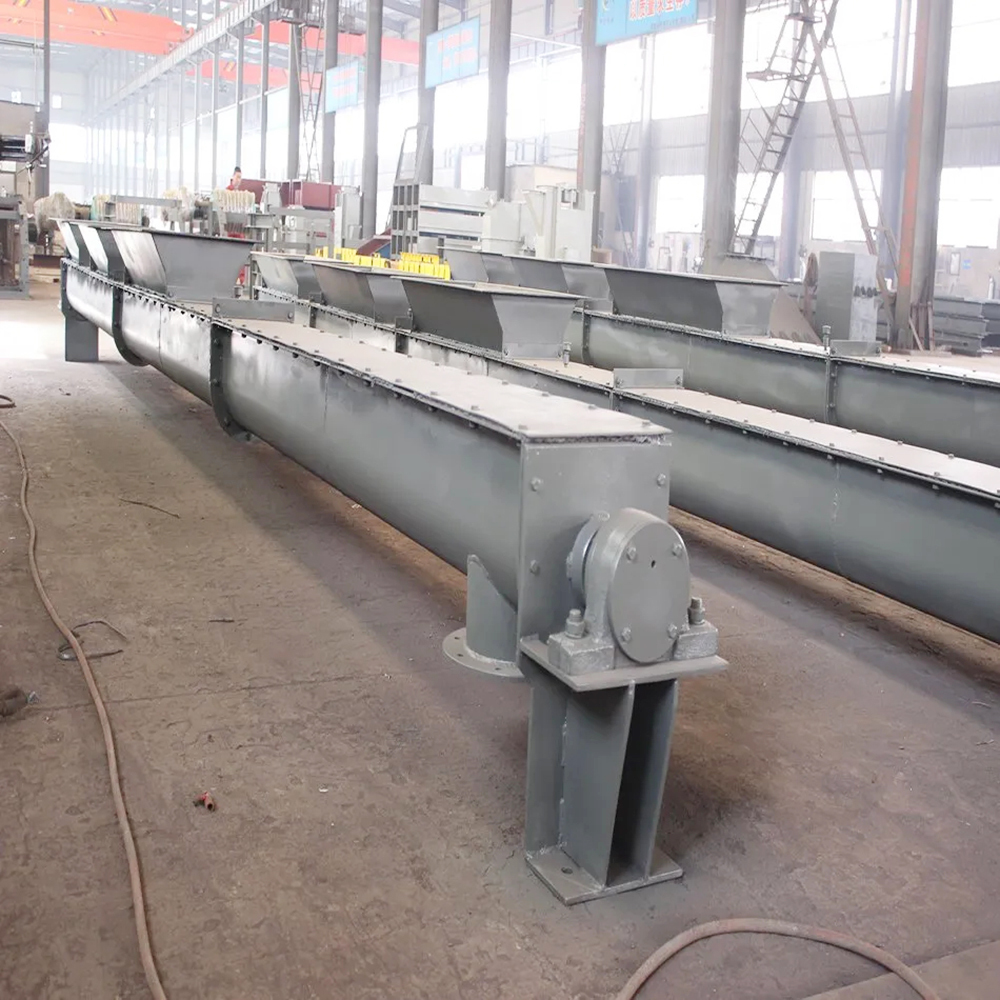

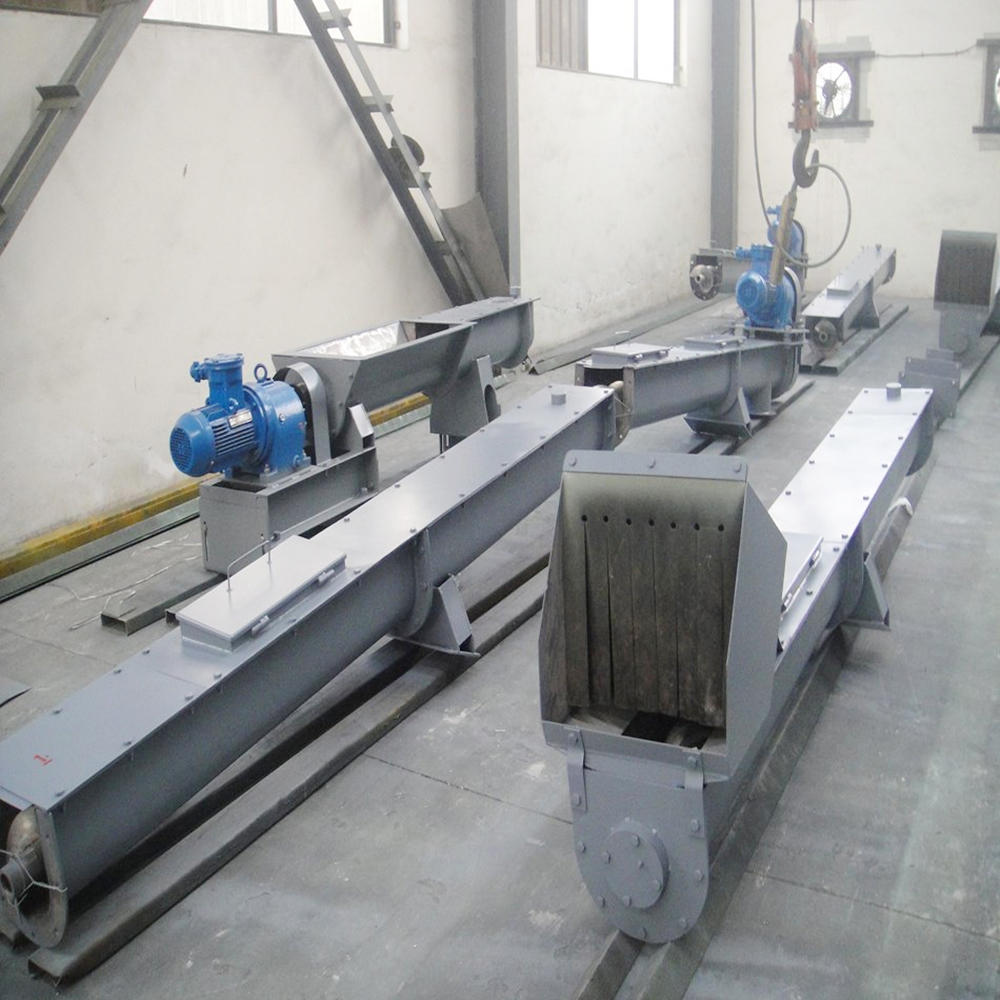

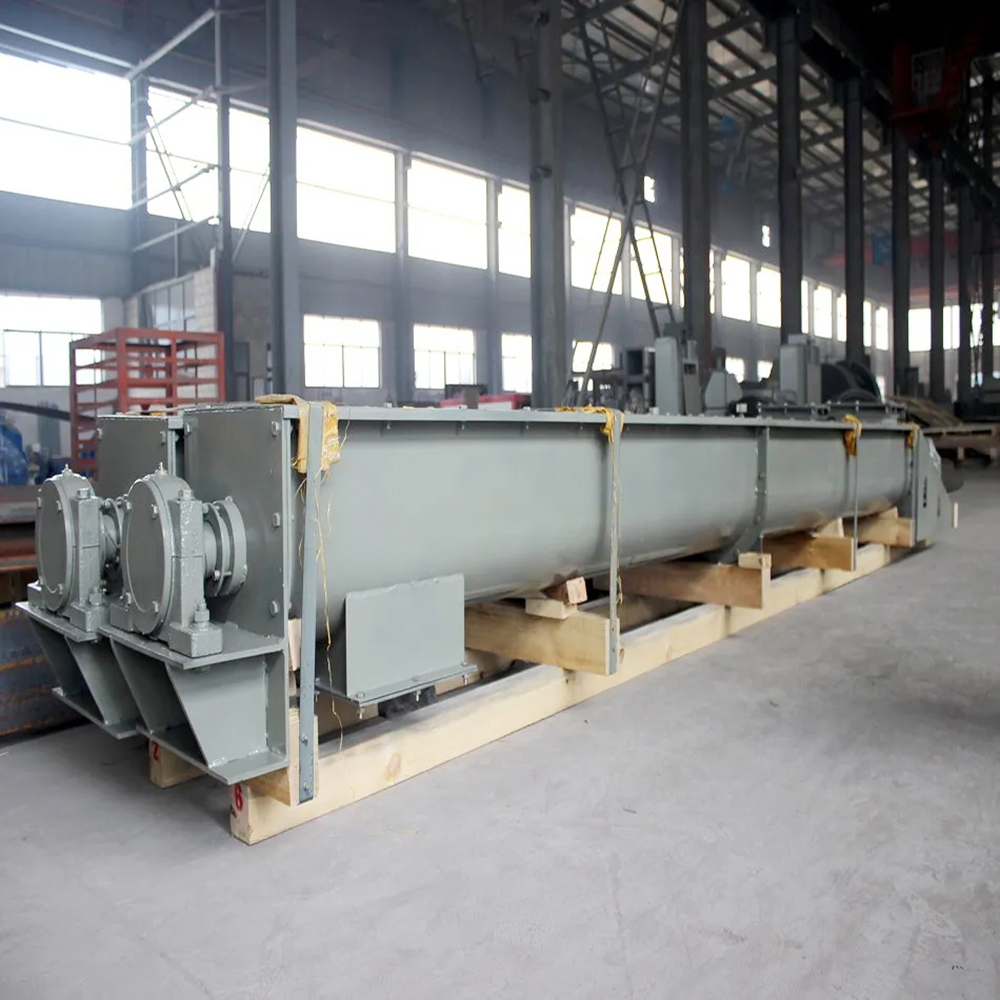

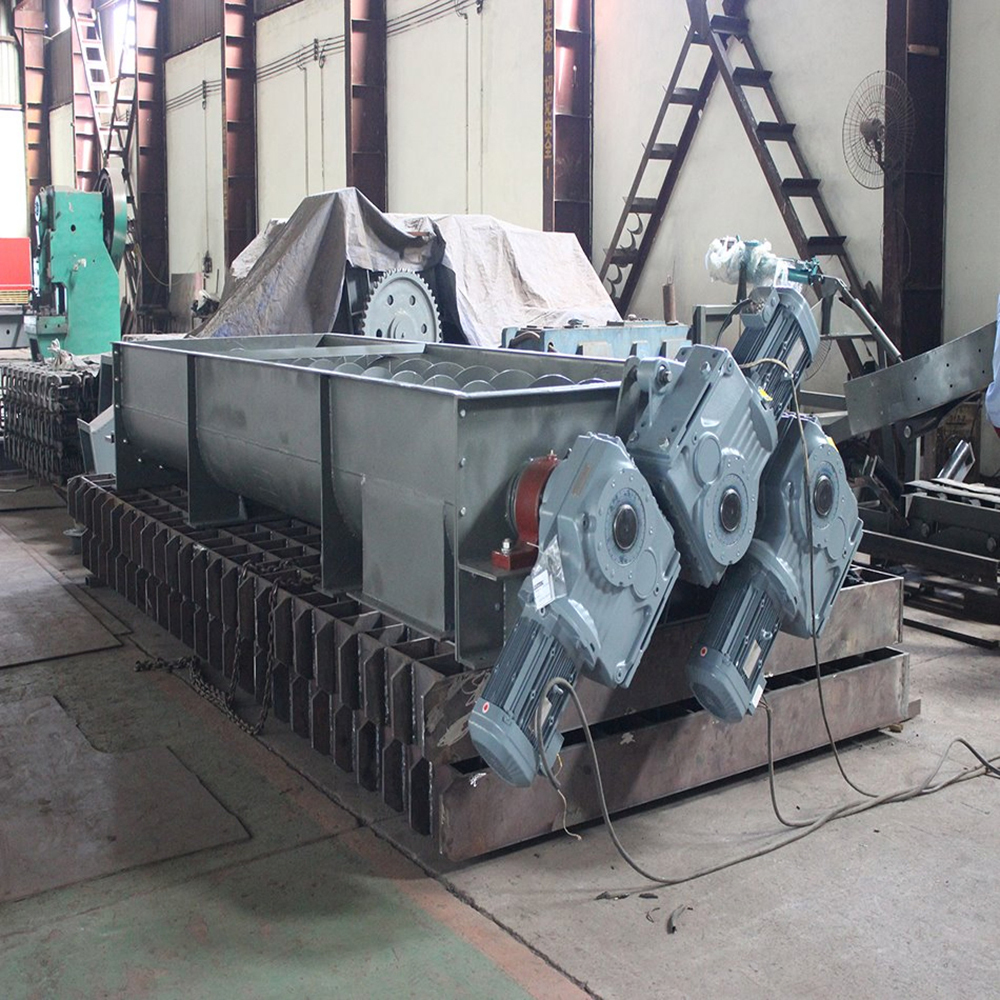

Product Images
