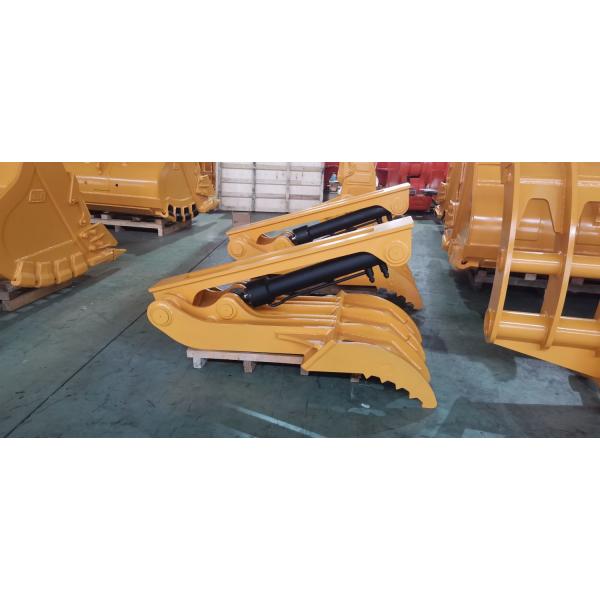

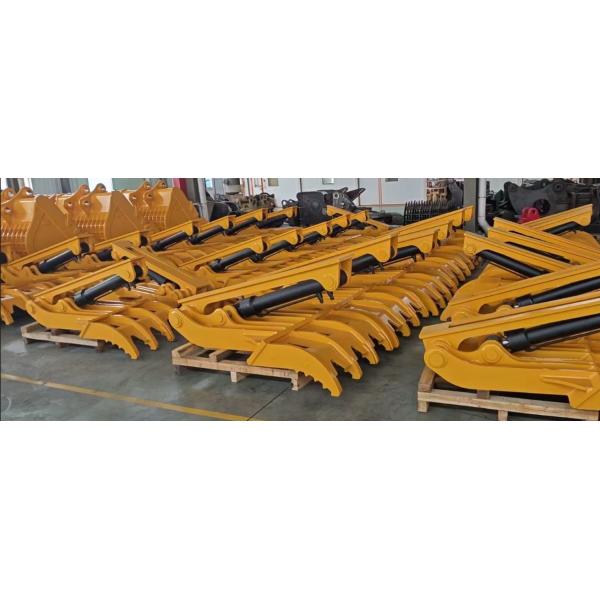

Excavator Hydraulic PowerThumb for 4 Tons to 20 Tons Excavators with Q345 Manganese Plate Steel
Excavator Hydraulic PowerThumb for 4 Tons to 20 Tons Excavators with Q345 Manganese Plate Steel
Excavator Hydraulic PowerThumb for 4 Tons to 20 Tons Excavators with Q345 Manganese Plate Steel
Excavator Hydraulic PowerThumb for 4 Tons to 20 Tons Excavators with Q345 Manganese Plate Steel
Specifications
Brand Name :
Dopro
Model Number :
DPTHB900
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
70-700
Supply Ability :
7000 Pcs Per Month
Delivery Time :
3-7 Working Days
Packaging Details :
Export Wooden Cases /Pallet
Color :
Customer Required,Requirement
Warranty :
12 months
Application :
Crawler Excavator,Backhoe,stones,bulldozer,Engineering Machine Excavator
Type :
Rock bucket,cat excavator rotating orange peel grapple
Material :
400+Other Brands Standard Wearing Materials.
After-sales service provided :
Online support,Video technical support
Condition :
New
Name :
Heavy duty rock bucket,OEM bucket
Packing :
Pallet,Wooden Box
Usage :
load or unload sand or something else,For Excavator
Capacity :
Customer Required
Product name :
Excavator Heavy Duty Skeleton Bucket For Excavator Attachments
Description
Excavator Hydraulic PowerThumb
Compatible with JCB3DX, PC55, EX12, EX15, PC35 excavators and designed for 4 to 20 ton excavators.
What is a Hydraulic Thumb?
Transform your excavator from basic digging to complete material handling with the AMI Attachments Hydraulic Thumb. This attachment makes it easier to pick, hold, and move awkward materials such as rocks, concrete, branches, and debris that don't fit into the bucket.
Proper Mounting Location
Center the base plate horizontally on the excavator arm, clamp it in place ensuring full contact, then tack weld in 4-6 places on each side. Mount the thumb and stabilizer arm by placing the top stabilizer pin in the rear hole of the adjustment bracket.
Thumb vs. Grab Comparison
While a hydraulic thumb enhances material handling, it's not a direct replacement for a hydraulic grab. The thumb doesn't allow bucket rotation and has a smaller range of rotation compared to hydraulic grabs, which offer superior positioning for wide-range grabbing applications.
Applications & Benefits
This versatile attachment increases work flexibility and enables you to take on various challenging jobs with greater efficiency.
  • Multipurpose auxiliary device with lower cost and higher efficiency
  • Easy to install and operate
  • Custom manufactured to match your specific machine
Construction & Durability
Manufactured from Q345 manganese plate steel for exceptional strength and wear resistance. The oil cylinder features honing tube construction with imported HALLITE oil seals, ensuring short working cycles and extended service life.
Technical Specifications
Applicable Excavator (tons) 1-4 5-9 10-17 18-24
Length (mm) 910 1220 1320 1530
Width (mm) 220 300 410 410
Oil Flow (l/min) 20-50 30-90 90-110 100-140
Working Pressure (kg/cm²) 90-120 110-160 150-170 160-180
Weight (Kg) 90 180 300 440
Compatible Excavator Models
PC100-6
ZX30
VIO55
CX130
310
ZX130
VIO30
R16-7
R17-9VS
308.5
ECR18E
307C
307E
307D
PC27
308
EX12-2
EX15-2
PC27MR
PC30
HD80R
KX155
SH120A2
ZX10U-2
VIO22-6
ZE75E-10
SY75C
TB210R
E60
E130
EC200D
EC210
EC210B
EC210C
EC210D
EC220D
EC220DL
R160LC-7
R160LCD-7
R170LC-5
R180LC-7
R180LC-7A
R180LCD-7
R180LCD-7A
R190-5
R200-5
R200LC
R210
R210-5
R190LC-5
R200-5D
R210-V
R210LC-3
R210-7H
R210-7
DH200-5
DH220-7
DH220-5
DH150LC-7
DH215-7
EX200-5
EX200-2
EX200
DH220-1
DH220-9
EX200LC
EX200K-3
EX200-5HHE
EX200-3
EX200-5E
EX210LC
EX210H-5
EX210-5
EX200LC-5
EX200LC-2
EX210LC-5
EX210K-5
EX210-6
EX210
EX200LC-3
