Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction
Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction
Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction
Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction
Specifications
Brand Name :
Dopro
Model Number :
DPSC5000
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1
Price :
50-5000
Supply Ability :
6000 Pcs Per Month
Delivery Time :
3-7 Working Days
Packaging Details :
Export Wooden Cases /Pallet
Color :
Customer Required,Requirement
Warranty :
12 months
Application :
Crawler Excavator,bulldozer,Engineering Machine Excavator
Type :
Agro-Forestry Monitoring System
Material :
Q345B,Q345B+NM400,400+Other Brands Standard Wearing Materials.
After-sales service provided :
Online support,Video technical support
Weight :
400-700kg
Condition :
New
Packing :
Pallet,Wooden Box
Oem :
Available,Support
Usage :
Wheel Loader,For Excavator
Capacity :
Customer Required
Description
Excavator Rail Sleeper Changing Machine
The sleeper changing machine is a specialized railway maintenance attachment designed for excavators. This front-end working device connects via quick-change connectors and features horizontal and telescopic functionality for efficient sleeper replacement operations.
Product Overview
Constructed with a compact, lightweight design and excellent coordination, this sleeper machine delivers high work efficiency, enhanced construction safety, and strong practical performance. Traditional manual sleeper replacement is extremely slow and poses safety risks, while this machine increases efficiency by 20 times, capable of replacing approximately 1.5 sleepers per minute.
Applications & Characteristics
  • Primary use in new railway tie laying and replacement of old sleepers
  • Widely applied in emergency railway line repairs and new line construction
  • Manufactured from Q355B wear-resistant manganese plate using CNC boring processing
  • Meets excavator manufacturer standards with high strength, toughness, and wear resistance
  • Shock pad design reduces impact and ensures precise positioning
  • Imported balance valve motor with buffer function and dual overload protection
Key Features
  • Special high-toughness, wear-resistant steel construction
  • Imported balance valve motor with buffering capability
  • Check valve oil cylinder for safer, more reliable gripping
  • High-strength rotating support with 360° clockwise/counterclockwise rotation
  • Large opening width with minimal weight and high performance
  • Specialized large oil cylinders for lifting multiple objects
  • Special rotating gears extend product life and reduce maintenance costs
Specialized Features
  • Constructed from special wear-resistant manganese steel plate
  • Dual oil cylinder and four-grip design enhances sleeper grabbing firmness
  • 360° rotation with angle adjustment for precise placement
  • Box-type scraper design for easy foundation leveling and stone scraping
  • Nylon-block protected grabbing disc prevents sleeper surface damage
  • Large displacement imported rotary motor with high torque capacity up to 2 tons
Applications
Widely used for track sleeper installation and replacement in both public and railway applications.
Technical Specifications
Item/Model Unit DPSC-3 DPSC-5
External Dimension mm 2765×1316 2765×1370
Max Opening mm 630 630
Grab Weight kg 800 800
Rotating Flow L/min 25-35 25-35
Rotating Pressure kg/cm² 80-120 80-120
Working Flow L/min 50-80 50-80
Working Pressure kg/cm² 160-220 160-220
Weight kg 930 990
Suitable Excavator ton 7-8 10-15

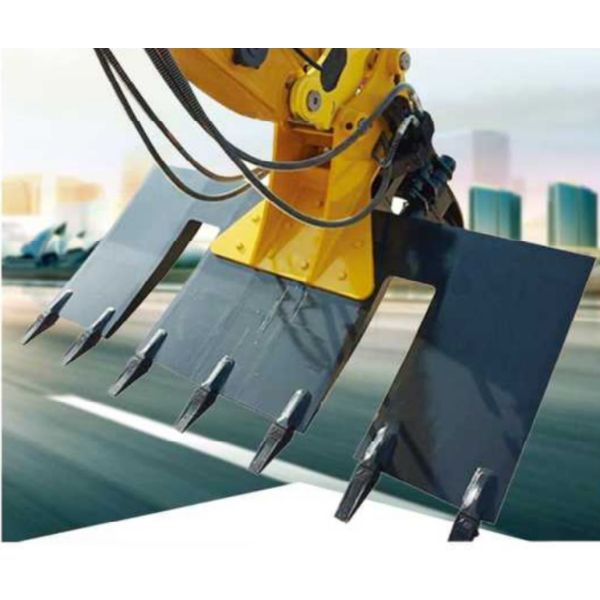

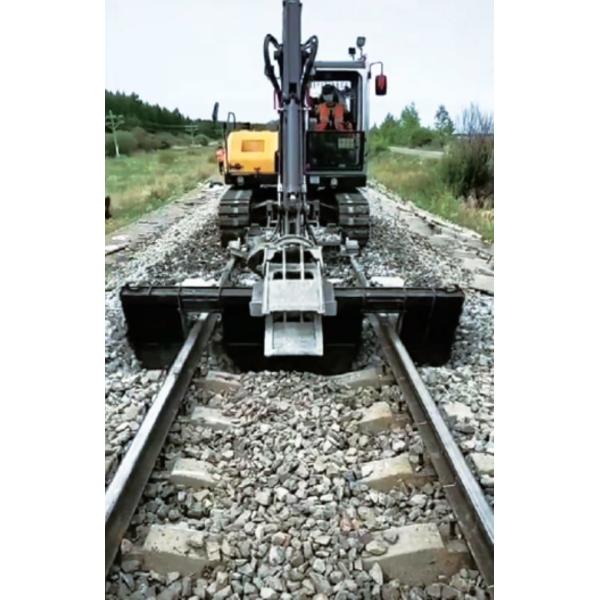

Product Images
Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction Excavator Attachment Sleeper Changer with 360 Degree Rotation High Efficiency and Wear-Resistant Manganese Steel for Railway Construction
