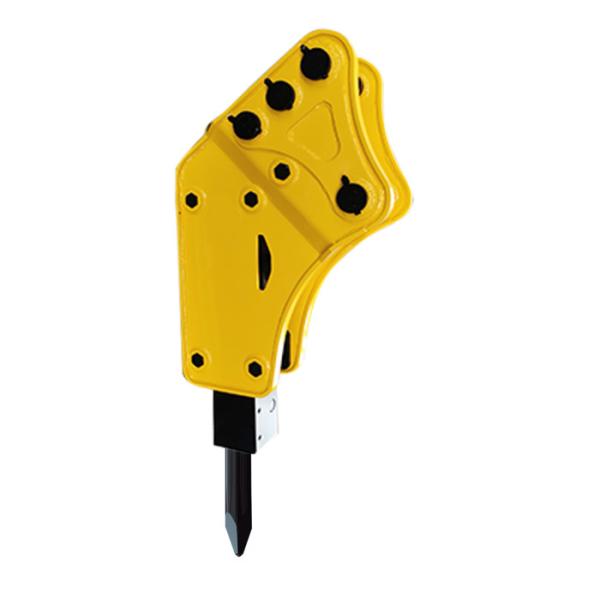

60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe
Specifications
Brand Name :
CTHB
Model Number :
CTHB-30/40/43
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
USD 900-2300 / Unit
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300 Units per Month
Delivery Time :
5-8 Work Days
Packaging Details :
Export Wooden Box
Cylinder :
20CrMo
Piston :
616V
Bracket Type :
Backhoe Loader Type
Seal Kits :
NPK
Front Head :
20CrMo
Back Head :
20CrMo
Description

Backhoe Type Hydraulic Breaker For JCB 3cx Backhoe Loader

60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe

Backhoe Loader Type Hydraulic Breaker Specification

Items Unit CTHB-05 CTHB-10 CTHB-20 CTHB-30 CTHB-40 CTHB-43 CTHB-45 CTHB-50
Mainbody Weight kg 60 68 71 89 156 214 282 479
Total Weight kg 95 100 129 155 361 450 733 1007
Size(L*W*H) mm 990*235*255 1030*240*265 1331*260*295 1417*350*305 1660*328*486 1712*328*489 2074*438*570 2345*440*570
Hydraulic Oil Flow I/min 15-20 20-30 20-30 25-50 40-70 50-90 60-100 80-110
Hydraulic Pressure kg/cm^2 80-110 90-120 90-120 90-120 110-140 120-150 130-160 150-170
Blow Frequency bmp 850-1350 800-1300 700-1200 600-1100 500-900 400-800 400-800 350-700
Chisel Diameter mm 35 40 45 53 68 75 85 100
Suitable Carrier Weight ton 0.8-1 0.8-1.5 1.2-3.0 2.5-4.5 4-7 6-9 7-14 10-15

*The parameter above may change with the technology, will not notice additionally.

How to operate a hydraulic rock breaker

  • First Step: We need to connect the hoses onto the auxiliary oil pipe of the machine, using the easy push-fit connections that come with hydraulic breakers.
  • Second Step: Sit inside of the operator's cabin, start the breaker circuit. Set Correct RPM to give the breaker the right working flow, different breakers have different working flows, you can check it with our team, or check the data on the operator manual.
  • Third Step: Operating the breaker over the staff that needs to be broken, and make sure the position is vertical on the subject before breaking.
  • Fourth Step: Once the subject is broken. Must re-position the breaker to the new subject that needs to be broken. Then repeat the 3rd step.

60kg Hydraulic Hammer For Excavator JCB 3cx Concrete Breaker Backhoe

Hydraulic Breaker Advantages than Blasting

At present, the breaker has been widely used in secondary crushing in mining areas by virtue of its advantages, completely replacing secondary blasting for large-block crushing. In mining operations, the application of hydraulic breakers under certain special restrictions presents unique advantages, especially in selective mining and non-blasting mining operations, and it is a new mining method.
