Stainless Steel Electronic Platform Weighing Scale 12W Class III Accuracy
Stainless Steel Electronic Platform Weighing Scale 12W Class III Accuracy
Stainless Steel Electronic Platform Weighing Scale 12W Class III Accuracy
Stainless Steel Electronic Platform Weighing Scale 12W Class III Accuracy
Specifications
Model Number :
BSH511L
Place of Origin :
China
MOQ :
5 PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Materials :
Steel
Accuracy :
Class III
Display Resolution :
200,000
Display :
Green or Red LED
Unit :
kg/lb
Weight Range :
6kg~600kg
Output :
RS232 or RS485
Power :
110VAC~220VAC,12W
Description

LED Display RS232 or RS485 Output Stainless Steel Platform Weighing Scale

Quick Description:

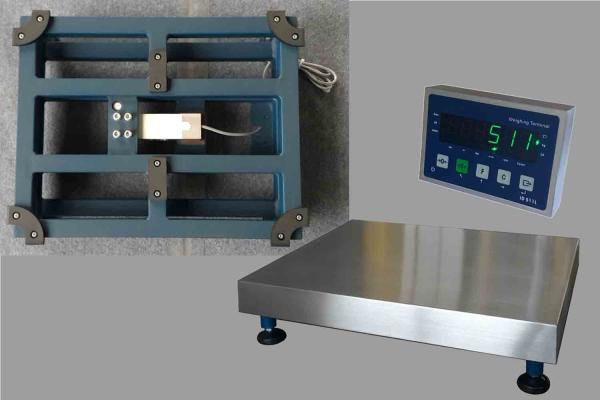

BSH511L Series Bench Scale is the combination of ID511L Weighing Terminal and RH Series mild steel platform. This unit is designed for dry and dusty environment. The reliable and durable structure combined optional accessories can deal with extensive weighing tasks.

Features:

* ID511L Terminal with stainless steel harsh enclosure,mild steel platform

* Easy operation

* Clear reading in dark area

* Fast response,high efficiency

* Accurate weighing and reading

* Broad range of weighing: 6kg~600kg

* Output weight and records via computer

* Auto print and print accumulating

Specifications:

Model Weight Range(kg) Readability (kg) Platform Size(mm) Loadcell Scale Stand Height(mm)
BSH226 6 0.002 300x300 L6N 330
15 0.005
30 0.01
60 0.02
30 0.01 400x400 L6E 330
60 0.02
150 0.05
60 0.02 500x500 L6E3 660
150 0.05
60 0.02 600x600 L6G 660
150 0.05
300 0.1
60 0.02 800x800 L6W 660
150 0.05
300 0.1
600 0.2
150 0.05 800x800 L6F 660
300 0.1
600 0.2
BSH226 6 0.002 240x300 L6N 330
15 0.005
30 0.01
60 0.02
30 0.01 300x400 L6E 330
60 0.02
150 0.05
60 0.02 400x500 L6E3 660
150 0.05
60 0.02 460x600 L6G 660
150 0.05
300 0.1
60 0.02 600x800 L6W 660
150 0.05
300 0.1
600 0.2
150 0.05 600x800 L6F 660
300 0.1
600 0.2

ID511L Weighing Terminal

* 200,000 display division

* Two display range / two increment size

* RS232/485 (standard)

* 1″ display, green or red

* MODBUS_RTU

* Basic Functionality: ZERO,TARE,CLEAR and PRINT.

* Auto Tare, Auto Clear and Auto Print

* Print and Totalization

* X10/Over/Under/OK/Count/Animal Weighing/Unit Switch.

* Auto save battery and battery indicating

* Auto Power OFF

* Over/Under/OK alarm output with relay output

* External Input to Zero, Tare, Clear or Print.

* Power Input:100~264VAC, ≤ 0.1A

NI-MH battery gru, GP 7.2 VDC 3800mAh

Options:

* 1 Inputs /3 Outputs(Relay)

* RTC(Real Timing Clock)

RH Series Mild Steel Platform

* Powder-coated welded tubular steel construction and brushed stainless steel load plate(1.4301/AISI304)

* Hermetically sealed aluminum load cell could provide an ingress protection of IP65

* Solid structure makes the platform suitable in heavy duty applications

* Comprehensive product lines with various weight ranges and platform sizes

* Multi-functions of load platform combine versatile accessories can meet your exact requirements.

Model Dimensions (mm) Loadcell Weight Range
6kg 15kg 30kg 60kg 150kg 300kg 600kg
RH2430 240x300 L6N * * 　 　 　 　 　
RH3040 300x400 L6E 　 　 * * * 　 　
RH4050 400x500 L6E3 　 　 　 * * 　 　
RH4660 460x600 L6G 　 　 　 * * * 　
RH6080S 600x800 L6W 　 　 　 * * * *
RH6080H 600x800 L6F 　 　 　 　 * * *
RH3030 300x300 L6N * * * * 　 　 　
RH4040 400x400 L6E 　 　 * * * 　 　
RH5050 500x500 L6E3 　 　 　 * * 　 　
RH6060 600x600 L6G 　 　 　 * * * 　
RH8080S 800x800 L6W 　 　 　 * * * *
RH8080H* 800x800 L6F 　 　 　 　 * * *
Verification Division Value 2g 5g 10g 20g 50g 100g 200g
Accuracy Level: C3
Working Temperature: -20℃~ +50℃
Relative Humidity≤95% (Need no condensation)
IP Rating: Load cell IP65
Load Cell: ZEMIC

Package
