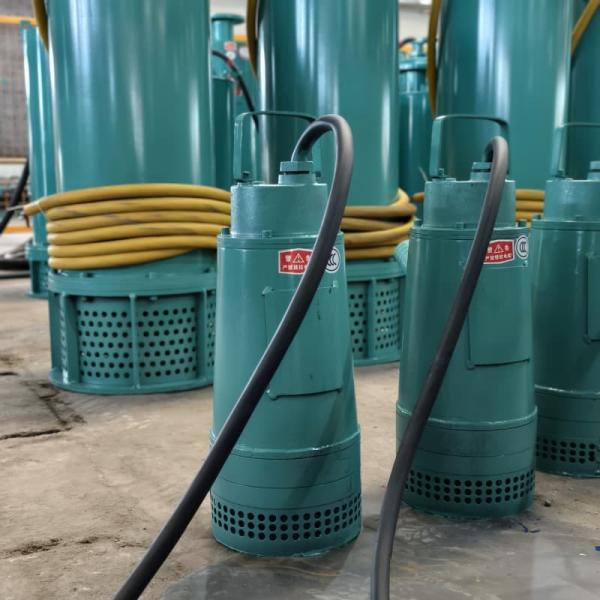

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial
Specifications
Brand Name :
ATPUMP
Model Number :
BQS80-80-37/N
Certification :
CE、ISO 9001、ISO 14001、ISO45001
Place of Origin :
China
MOQ :
1
Price :
USD 1050-8999/ set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 sets per year
Delivery Time :
20-35 work days
Packaging Details :
Plywood case
Rated voltage :
380/660V，660/1140V，400V，440V，460V, customizable
Medium Temperature :
≤ 40℃
PH :
5-8
medium density :
≤ 1100 kg/m³
Submergence :
≤ 20m
Cable length（Standard） :
10m
Cable standards :
MT818.5-2009 flame-retardant cable
Customizable :
yes
Insulation rating :
F/H
Frequency :
50Hz / 60Hz
Pump type :
submersible electric pump
Drive :
Electric pump
Material :
Ductile iron QT600-3, SS304, SS316, SS316L, duplex stainless steel,high chromium alloy
Power :
1.5kw-315kw
Description

37kW 50HP High Head Submersible Slurry Drainage Pumps Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

We can not only make the world's largest submersible sewage pump,we can also meet your various drainage needs
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialCoal mine sewage
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialFactory sewage
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialMunicipal engineering
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialWater conservancy engineering
High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialSeawater discharge
Customized services provide you with more accurate and efficient choices

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial


High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery IndustrialHigh Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

Product Structure Feature

1. The BQS series flameproof underground sand pump structure, top part is flameproof electric motor, the central part is mechanical seal, the lower part is pump, the motor, mechanical seal and pump is connected by Shaft coupling.

2. The electric pump is made up of the impeller, the worm shell, the inlet section, the outlet and so on. The fixed of the impeller is fastened by the nut.

3. The motor is three phase AC flame-proof dry squirrel cage asynchronous motor, and the stator winding is made of polyester enameled wire, so that the life of the motor is greatly improved.

4. The shell of the pump is made by steel, cast iron and so on. It is small volume, anti - collision, safe and reliable, durable on operation.

5. The cable adopts special sealing structure, and the water will not enter the motor inner. The motor shaft extends was sealed by rubber oil to prevent silt. The seal includes the dynamic seal and the static seal, and it is adopted the whole type double end mechanical seal. It is filled with 15# or 20# mechanical oil in the cavity, which is formed by the upper cover of the impeller and the bearing support under the shell.

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

Dewatering pumps are crucial for safe and efficient mining operations, regulating water levels and preventing disruptions.
As the mining industry advances, the technology behind these pumps continues to evolve with a focus on durability, efficiency, and ease of maintenance.
Mining pumps must be exceptionally durable to withstand harsh conditions, including both acidic and caustic solutions with abrasive solids.Corrosion-resistant materials like stainless steel extend the pump’s lifespan in challenging mining conditions. High chrome combat wear from abrasive particles, ensuring reliable operations over extended periods.
ATPUMP selects and customizes to meet the requirements of the mining site, enabling mining operators to make informed choices that improve safety, efficiency and profitability.

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

High Head Electric Submersible Slurry Pump 37kW 50HP Submersible Sand Dredging Pump For Mine Refinery Industrial

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
