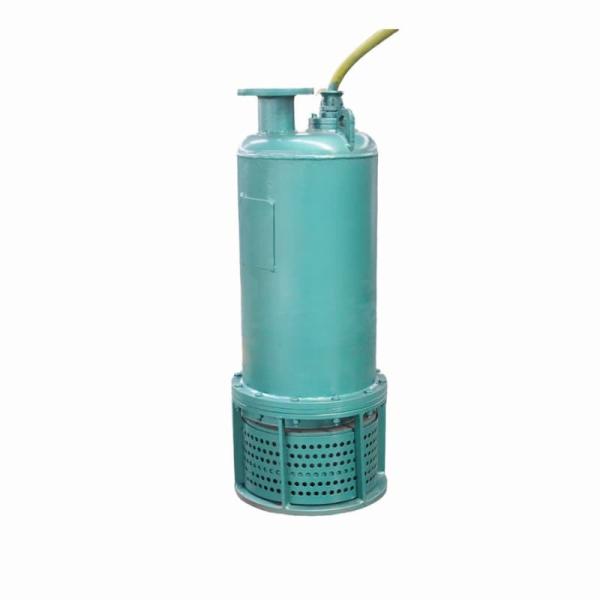

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW
Specifications
Brand Name :
ATPUMP
Model Number :
BQS30kW
Certification :
CE、ISO 9001、ISO 14001、ISO45001
Place of Origin :
China
MOQ :
1
Price :
USD 1010-7999/ set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 sets per year
Delivery Time :
20-35 work days
Packaging Details :
Plywood case
Rated voltage :
380/660V，660/1140V，400V，440V，460V, customizable
Medium Temperature :
≤ 40℃
PH :
2 -10
medium density :
≤ 1100 kg/m³
Submergence :
≤ 20m
Cable length（Standard） :
10m
Cable standards :
MT818.5-2009 flame-retardant cable
Customizable :
yes
Insulation rating :
F/H
Frequency :
50Hz / 60Hz
Pump type :
submersible electric pump
Drive :
Electric pump
Material :
Ductile iron QT600-3, SS304, SS316, SS316L, duplex stainless steel,high chromium alloy
Power :
1.5kw-315kw
Description

BQS30kW Submersible Drainage Sump Pump Slurry Mud Pumps Heavy Duty Large Capacity

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

Operating Conditions and Environment

These pumps are engineered for continuous, uninterrupted operation under the following conditions:

  • Power Supply: The pump operates with a power supply frequency of 50Hz or 60hz and a three-phase AC voltage of 380V, 660V, or 1140V. (Customers must specify the required voltage when placing an order.)
  • Submersion Depth: Suitable for use in shallow water or submerged at depths of up to 5 meters.
  • Temperature: The medium's temperature must not exceed 40°C, while the ambient working temperature should range between 0°C and 40°C.
  • pH Range: The medium's pH level should fall between 6 and 8 for optimal operation.
  • Impurities and Medium Density: The volume percentage of solid impurities in the water should remain below 2%, and the medium's density should not exceed 1.02 x 10³ kg/m³.
  • Solid Particle Size: The diameter of solid particles in the medium must not exceed half of the minimum cross-sectional size of the pump's flow passage.

This set of parameters ensures reliable and efficient pump performance across a variety of applications.

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW


ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kWATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

Product Working Principle

After the electric pump is connected with the power source, the stator generates a rotating magnetic field to rotate the rotor, thereby driving the impeller to rotate. Due to the centrifugal action of the blade, there will have a great speed and high pressure, through the volute and delivery pipe, the water will be rised to the desired height.

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

Dewatering pumps are crucial for safe and efficient mining operations, regulating water levels and preventing disruptions.
As the mining industry advances, the technology behind these pumps continues to evolve with a focus on durability, efficiency, and ease of maintenance.
Mining pumps must be exceptionally durable to withstand harsh conditions, including both acidic and caustic solutions with abrasive solids.Corrosion-resistant materials like stainless steel extend the pump’s lifespan in challenging mining conditions. High chrome combat wear from abrasive particles, ensuring reliable operations over extended periods.
ATPUMP selects and customizes to meet the requirements of the mining site, enabling mining operators to make informed choices that improve safety, efficiency and profitability.

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

ATPUMP Mud Submersible Slurry Pumps Heavy Duty Large Capacity BQS30kW

Q6: I want to be your dealer, what are the conditions?

A: No problem at all, dear, it is recommended that you purchase a sample first to try it out. If you have any special needs and modification suggestions, our technical team is at your service at any time. Looking forward to our further cooperation!
