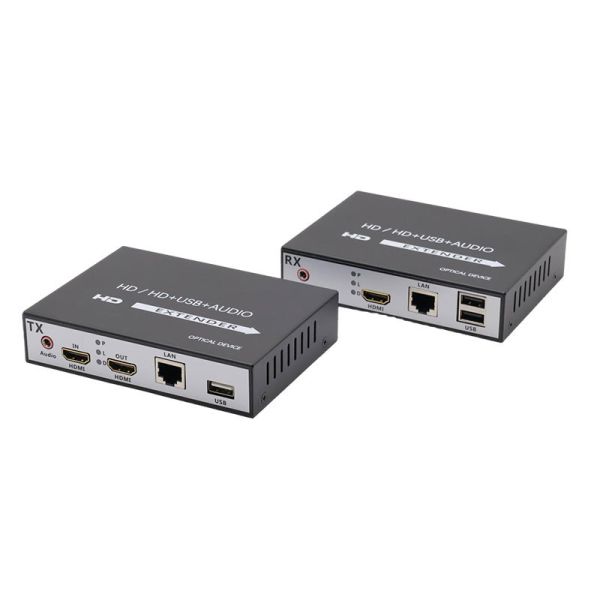

1080P HDMI Extender Over Cat5e/Cat6 LAN With USB KVM Audio HDMI Local Loopout

Specifications

Delivery Time :

5-7 days

Output interface :

1 x RJ45 output

Supply Ability :

20000pcs/Month

Audio support :

Supports HDMI audio pass-through

Power supply :

DC 5V/2A adapter

Storage temperature :

-20°C to 60°C

Model Number :

ATD-RHDMI-U-LA

Transmission medium :

Cat5e/Cat6 Ethernet cable

Transmission distance :

Up to 150 meters

Packaging Details :

1pair/box

Product name :

HDMI To LAN Extender

Installationtype :

Plug and play, no driver required

Input interface :

1 x HDMI input

Certification :

CE ROSH FCC ISO

Brand Name :

OEM

Video resolution support :

Up to 1080p

Place of Origin :

CHINA

Compatibility :

Compatible with HDMI 1.3/1.4 devices

Payment Terms :

T/T

Hdcp support :

HDCP 1.4 compliant

Description

1080P HDMI Extender Over Cat5e/Cat6 LAN With USB KVM Audio HDMI Local Loopout

Product Description

This HDMI over IP extender is a high-performance solution designed to transmit HDMI video, USB KVM, and independent audio signals over a single Cat5e/Cat6 Ethernet cable. It supports 1080P resolution and a transmission distance of up to 150 meters under TCP/IP protocol, enabling flexible point-to-point or point-to-many connections via a network switch.

The transmitter features a local HDMI loop-out for real-time monitoring, while both units provide 3.5mm independent audio in/out for separate sound processing. With USB 2.0 KVM support, it allows remote control of keyboard and mouse. The metal enclosure ensures durability and stable performance, perfect for enterprise AV, digital signage, home theater, and office extension applications.

Key Features

HDMI Over IP Transmission: Extend 1080P HDMI video up to 150m via Cat5e/Cat6 Ethernet cable, TCP/IP protocol supported.
USB KVM Function: USB 2.0 interface for keyboard and mouse remote control, plug-and-play.
Independent Audio In/Out: 3.5mm stereo audio jack for separate audio input/output, no signal interference.
Local HDMI Loop-Out: Transmitter with HDMI loop-through for local monitoring while transmitting.
Flexible Network Modes: Supports point-to-point, point-to-many, and many-to-many connections via switch.
Stable & Reliable: Metal enclosure, ESD protection, low latency, and EDID management for wide compatibility.
Easy Installation: No driver required, compact design with mounting holes for easy deployment.

Specifications

Parameter	Details
Model	HDMI Over IP Extender (TX/RX Kit)
Video Resolution	Up to 1080P@60Hz (1920×1080)
Transmission Distance	150m (Cat6), 120m (Cat5e)
Network Protocol	TCP/IP
Cable Type	Cat5e/Cat6 UTP Ethernet Cable
HDMI Version	HDMI 1.4, HDCP 1.4
USB Interface	USB 2.0 (KVM: Keyboard & Mouse)
Audio Interface	3.5mm Stereo (Independent In/Out)
Local Loop Out	Transmitter with HDMI Loop-Out
Transmission Modes	Point-to-Point, Point-to-Many
Power Supply	DC 5V/2A
Power Consumption	≤10W (Total)
Operating Temperature	0°C ~ +50°C
Housing	Metal (Black)
