5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
5 Port Industrial Ethernet Switch 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃
Specifications
Payment Terms :
T/T
Communication Mode :
Full-Duplex & Half-Duplex
MOQ :
10
Transmission Rate :
10/100Mbps
Power Supply :
DC 9-57V
Brand Name :
OEM
Model Number :
ATD-IDS05E
Protection Grade :
IP40
Packaging Details :
1pcs/box
Supply Ability :
20000pcs/Month
Shell material :
Aluminum Alloy
Price :
6.5-9.5$
Network Port :
5*100Mbps RJ45
Certification :
CE ROSH FCC ISO
Delivery Time :
5-7 days
Description

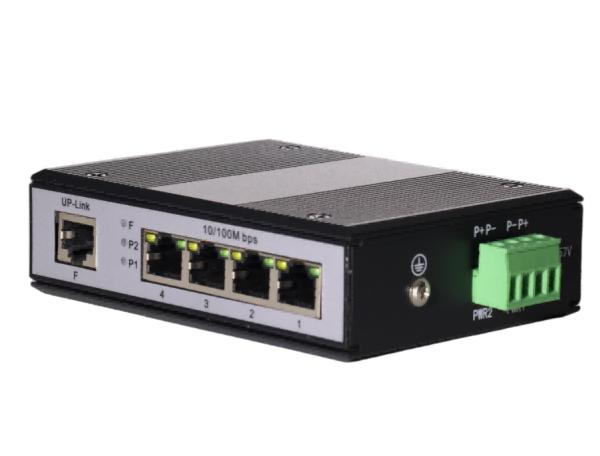

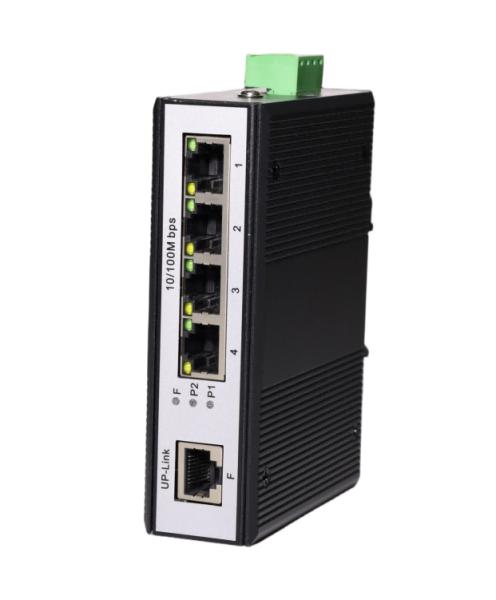

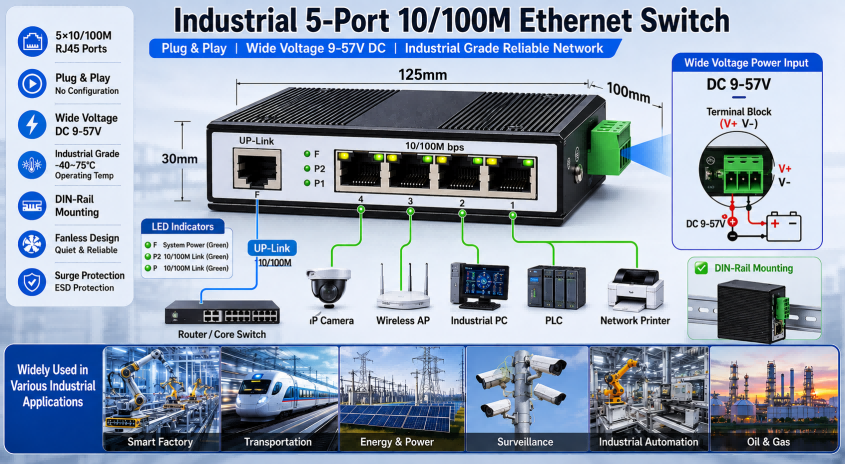

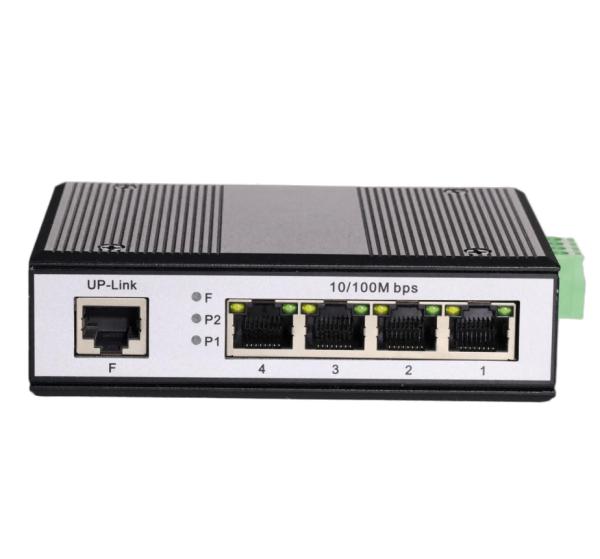

Industrial Ethernet Switch 5-Port 100Mbps Unmanaged DIN Rail IP40 -40℃~85℃

Our industrial-grade 5-port 100Mbps Ethernet switch realizes easy network expansion under extreme working conditions. It supports 10/100Mbps auto-negotiation, full/half-duplex mode and MDI/MDI-X auto crossover, no need for special network cables. Adopting fanless design, it runs silently and extends service life. It can be installed via DIN rail or wall mount, perfectly fitting industrial control cabinets. Compliant with IEEE industry standards and CE/FCC/RoHS certifications, it features strong anti-interference ability to adapt to complex industrial electromagnetic environments.

Key Features

  • 5 RJ45 ports, 10/100Mbps auto-adaptive, full/half-duplex & MDI/MDI-X auto crossover
  • IP40 metal enclosure, dustproof and durable, fanless heat dissipation
  • Wide temperature range: -40℃ ~ +85℃, stable operation in severe environments
  • DC 9-57V wide voltage input, dual redundant power with reverse polarity protection
  • Unmanaged plug-and-play design, simple installation and zero configuration
  • Excellent EMC & lightning protection, high stability for long-time operation
  • Compact size, support DIN rail and wall mounting
    Item Details
    Port Quantity 5×10/100Mbps Adaptive RJ45 Ports
    Compliance Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Transmission Mode Store-and-Forward
    MAC Address Table 2K Entries
    Protection Grade IP40
    Working Temperature -40℃ ~ +85℃
    Storage Temperature -45℃ ~ +90℃
    Working Humidity 5% ~ 95% (Non-condensing)
    Power Supply DC 9-57V, Dual Redundant, Reverse Polarity Protection
    Power Consumption ≤5W
    Installation Way DIN Rail / Wall Mount
    Certifications CE, FCC, RoHS
    Dimension (L×W×H) 125×100×30mm
