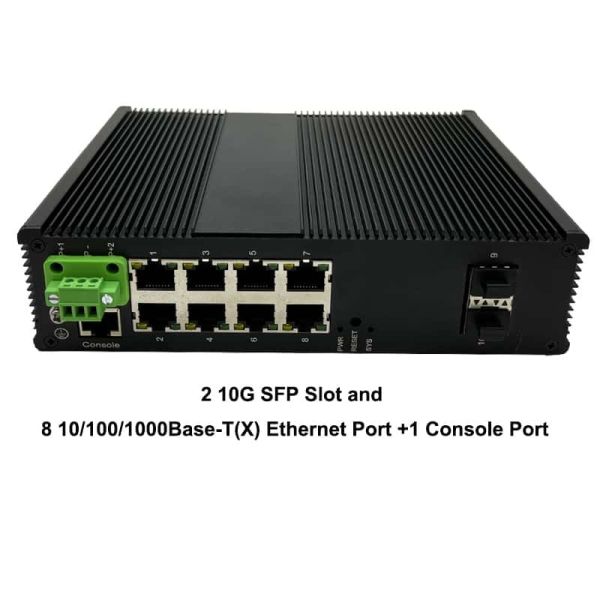

L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail
Specifications
Model Number :
ATD-IDS2WSF8G-L2
Certification :
CE ROHS FCC ISO
Payment Terms :
T/T
Port :
Support 8 10/100/1000Base-T(X) port and 2 10G SFP+ Slot and 1 Console Port.
lightning protection :
Through the design of a four level lightning protection chip, it can effectively resist lightning strikes below 8kV and prevent static electricity up to 8-15kV
Delivery Time :
5-7days
Power :
DC10-58V redundancy power, reverse polarity protection.
POE :
Support PoE extension, IEEE802.3af: maximum power of 15.4W, IEEE802.3at: maximum power of 30W
Environmental parameters :
Industrial grade 4 design, -40-85°C operating temperature.
Supply Ability :
20000pcs/Month
Mechanical structure :
IP40 rated aluminum alloy housing, DIN-Rail mounted
Packaging Details :
1pcs/box
Device management :
Support CLI, SNMP, WEB VLAN management, Console/Telnet command-line management and syslog, using self-developed ring network technology, recovery time <20ms
Place of Origin :
CHINA
Brand Name :
OEM
Network protocol :
IEEE802.3i，IEEE802.3u，IEEE802.3ab，IEEE802.3z，IEEE 802.3af/at
Description

L2 Managed Industrial Ring Network Switch 2 Port 10G SFP 8 Gigabit Ethernet RJ45 Switch DIN Rail

Product Description

The ATD-IDS2WSF8G-L2 series is a high-performance, cost-effective, high-end intelligent gigabit managed ring network industrial-grade optical fiber switch. Support 2 10G optical ports (SFP slots) + 8 10/100/1000Base-T(X) port. It adopts the self-developed ATD-RING ring network technology (network failure self-healing time <20ms), users can easily set a redundant ring network to increase network reliability, and also supports CLI, SNMP, WEB, VLAN management, support Console/Telnet command line management. Rich QoS features for data flow control and management, support ring protocol, RSTP and STP Ethernet redundancy, support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol. The product also uses fanless, low power consumption, industrial-grade design, can adapt to harsh industrial environments, and has an operating temperature range of -40 to 85°C, which can meet the requirements of various industrial sites


Product Features

  • 2×10G SFP+ high-speed fiber ports + 8×gigabit RJ45 ports, flexible fiber-copper hybrid network deployment
  • Built-in industrial ring network redundancy function, support fast link switching, effectively avoid network interruption
  • Full-featured Layer 2 management, support VLAN division, QoS traffic control, IGMP Snooping, port aggregation and mirroring
  • Millisecond-level ring network self-healing recovery, greatly improve overall network operation reliability
  • Standard DIN rail and wall-mounted dual installation methods, easy wiring and space-saving layout
  • Industrial reinforced hardware design, shockproof, dustproof and anti-electromagnetic interference performance outstanding
  • Ultra-wide temperature working range, adapt to various extreme field working environments
  • Multi-management modes including Web, Telnet and SNMP, convenient for unified network operation and maintenance
  • Independent lightning surge protection design for all ports, effectively reduce equipment failure rate
  • Fanless silent heat dissipation design, low power consumption, longer service life and stable operation


Product Specification

Interface

Fiber Port

2*10G SFP+

Ethernet Port

8*10/100/1000 Base－T

Manage Port

1*RJ45 Console port

Power connector

3P Phoenix terminal, dual power supply redundancy

LED Indicator

PWR (green);

System indicator:SYS(green);

Network port indicator:yellow(1000 or POE) Green (Link)

Cable type and distance

Twisted pair cable

0-100m (CAT5e, CAT6)

Single-mode fiber

20/40/60/80/100KM

Multimode fiber

550m/2KM

Optical fiber interface

LC/SC

Network topology & scale

Ring topology

Support

Star topology

Support

Bus topology

Support

Tree topology

Support

Hybrid topology

Support

Electrical characteristics

Input voltage

DC10-58V/DC48-58V

Power consumption

Non-POE full load (Total power) <10W

POE full load <132W

PoE Support(Optional)

PoE ports

1-8

PoE protocol

802.3af, 802.3at

PoE pin assignment

1,2,3,6

PoE management mode

Support

L2 Features

Exchange capacity

64G

Packet forwarding rate

47.6Mpps

MAC address table

16K

VLAN support and quantity

Support 4K

Report buffer

12M

Forwarding delay

<10us

Port characteristics

Cross-connect and direct-adaptive

Flow control

Support
