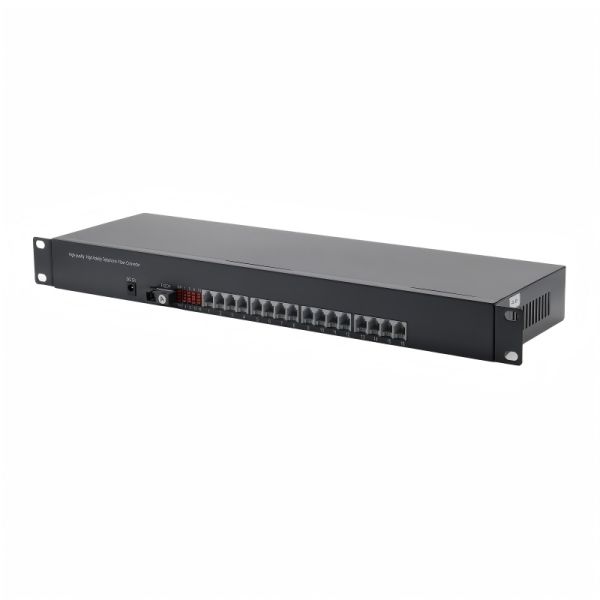

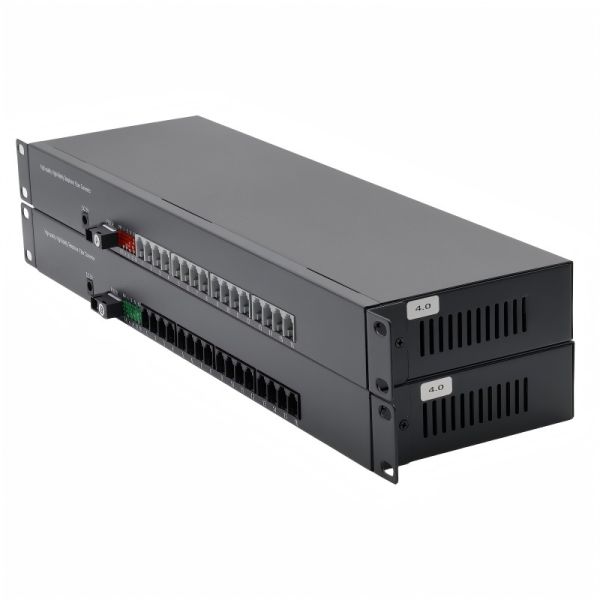

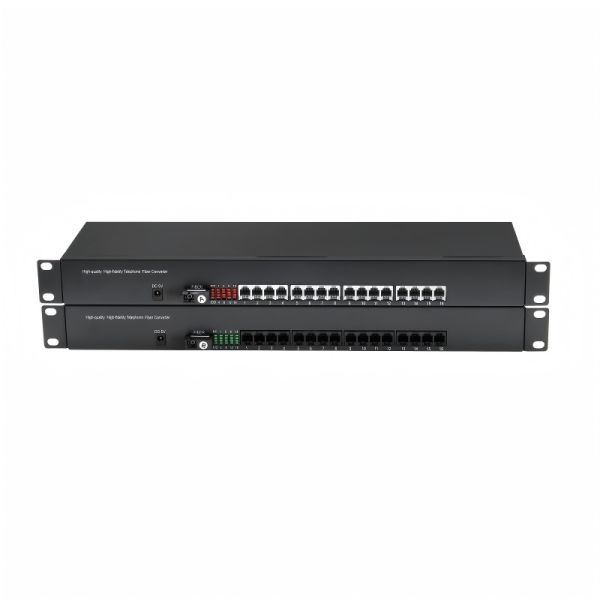

16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux
Specifications
Delivery Time :
5-7 days
Latency :
Less than 5 ms
Model Number :
ATD-T1016-T/R
Place of Origin :
CHINA
Certification :
CE ROSH FCC ISO
Supply Ability :
10000pcs/Month
Function :
Combines multiple telephone signals into one transmission line
Number of Channels :
Typically 2 to 128 channels
Packaging Details :
2pcs/box
Warranty :
1 year manufacturer warranty
Signal type :
Analog and digital signal support
Powersupply :
AC 110-240V, 50/60Hz
Installation type :
Rack-mounted or desktop
Total data rate :
Up to 1.5 Mbps depending on model
Interface type :
RJ11 or RJ45 connectors
Isolation :
Electrical isolation between channels
Payment Terms :
T/T
Brand Name :
OEM/atongda
Dimensions :
19-inch rack mount, 1U height
MOQ :
2
Transmission type :
Analog or Digital
Description

The 16-Channel Rack-Mount Telephone Fiber Optic Multiplexer is a professional voice transmission solution designed for high-density applications requiring reliable long-distance analog voice communication. Supporting sixteen independent telephone channels, the system converts traditional telephone lines into optical signals for secure, high-fidelity, long-distance transmission.

Built with advanced fiber optic technology, the multiplexer eliminates EMI, RFI, lightning surges, and signal degradation associated with copper lines. It is ideal for corporate PBX systems, campus intercoms, industrial telecommunication networks, control centers, transportation hubs, and security monitoring facilities.

The rack-mount design allows easy integration into server rooms and communication cabinets. Plug-and-play operation, industrial-grade metal housing, and fanless design ensure reliable performance in demanding environments, making it suitable for mission-critical voice communication applications.

Product Overview

The 16-channel rack-mount telephone fiber optic multiplexer transmits sixteen independent analog telephone lines over optical fiber, ensuring high-quality, low-latency, and interference-free voice communication for PBX systems, intercom networks, industrial facilities, and telecom applications.

Product Features

  • 16 Independent Telephone Channels – Supports 16 analog telephone lines simultaneously.
  • Rack-Mount Design – Standard 19-inch 1U rack size for easy integration.
  • Long-Distance Fiber Transmission – Up to 20 km over single-mode fiber; multi-mode fiber options available.
  • Superior Voice Quality – High clarity, low distortion, and minimal latency.
  • EMI/RFI Immunity – Fully optical isolation ensures interference-free operation.
  • Industrial Reliability – Rugged metal housing, fanless design, continuous 24/7 operation.
  • Plug-and-Play – No software configuration required; fast installation.
  • Wide Compatibility – Works with FXS/FXO lines, PBX systems, analog telephones, and intercom networks.

Technical Specifications

Parameter Specification
Product Type 16-Channel Rack-Mount Telephone Fiber Optic Multiplexer
Telephone Channels 16 Channels
Interface Type RJ11, FXS / FXO Optional
Voice Signal Type Analog Telephone
Voice Coding PCM Digital Transmission
Frequency Response 300Hz – 3400Hz
Signal-to-Noise Ratio ≥65 dB
Harmonic Distortion ≤1%
Crosstalk Isolation ≥65 dB
Transmission Delay ≤5 ms
Fiber Connector SC Standard (FC/ST Optional)
Fiber Type Single-Mode / Multi-Mode
Wavelength 1310 nm / 1550 nm
Transmission Distance Up to 20 km (single-mode), up to 2 km (multi-mode)
Optical Loss Budget 10–28 dB
Power Supply DC 5V / 2A
Power Consumption ≤15 W
Status Indicators Power, Fiber Link, Telephone Channel Status
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Humidity 0–95% Non-Condensing
Housing Material Aluminum Alloy, Rack-Mount 1U
Cooling Method Fanless
MTBF >100,000 Hours
Installation 19-inch Rack Mount
Certifications CE, FCC, RoHS
Storage Temperature -40°C to +85°C
Relative Humidity 0–95% Non-Condensing
Housing Material Aluminum Alloy
Cooling Method Fanless
MTBF >100,000 Hours
Installation Desktop / Wall Mount
Protection Level Industrial Grade
Certifications CE, FCC, RoHS

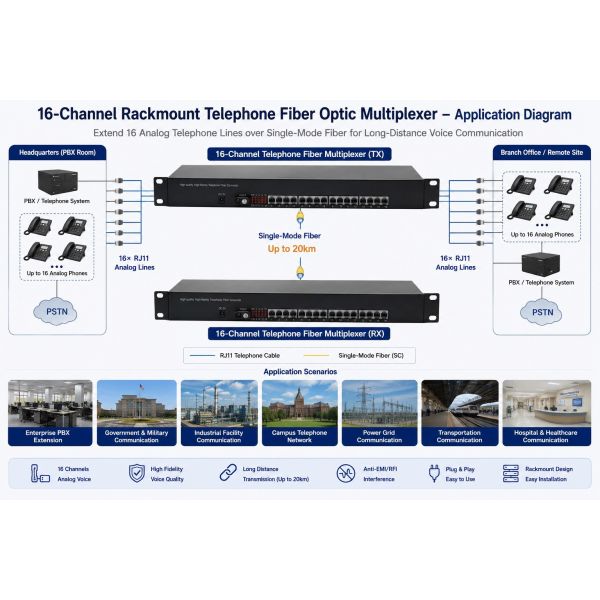

Application

16 Channel Analog Telephone Multiplexer Rack Mount Fiber Optic Mux

Package Contents

  • 1 × 16-Channel Telephone Fiber Optic Multiplexer (Rack-Mount)
  • 1 × Power Adapter (DC 5V / 2A)
  • 1 × User Manual
  • 1 × Quick Installation Guide
  • 1 × Warranty Card
  • 1 × Protective Packaging Box
