Specifications
Place of Origin :
CHINA
Forwarding Rate :
Up to 5.95 Mpps (million packets per second)
Power Supply :
DC 12V
Port Type :
Gigabit Ethernet and Fiber
Mtbf (Mean Time Between Failures) :
Over 100,000 hours
Data Transfer Rate :
1 Gbps per port
Number Of Ports :
2*SFP+2*RJ45
Delivery Time :
5-7 days
Model Number :
ATD-MC2F2G-SFP
Payment Terms :
T/T
Network Standard :
IEEE 802.3, 802.3u, 802.3ab, 802.3z
Brand Name :
OEM
Packaging Details :
1pcs/box
Switching Capacity :
Up to 8 Gbps
Supply Ability :
20000pcs/Month
Operating Temperature :
0°C to 50°C
Certification :
CE ROSH FCC ISO
Mounting :
desktop
Description

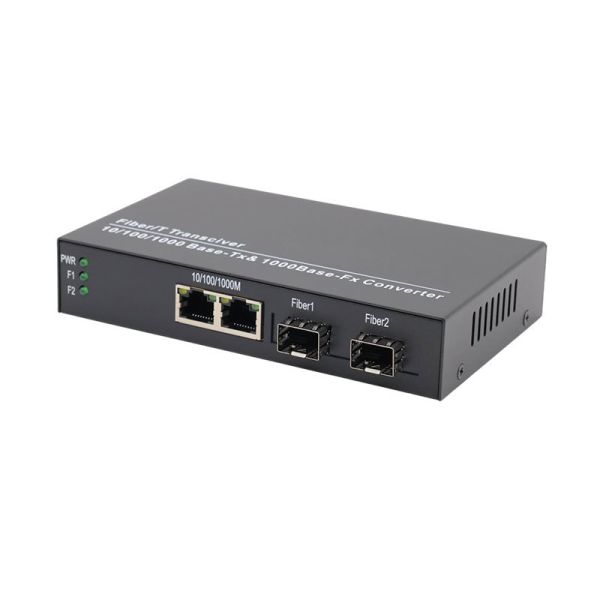

Unmanaged Gigabit Fiber Switch with 2 SFP Fiber Ports and 2 RJ45 Ethernet Ports

Product Overview

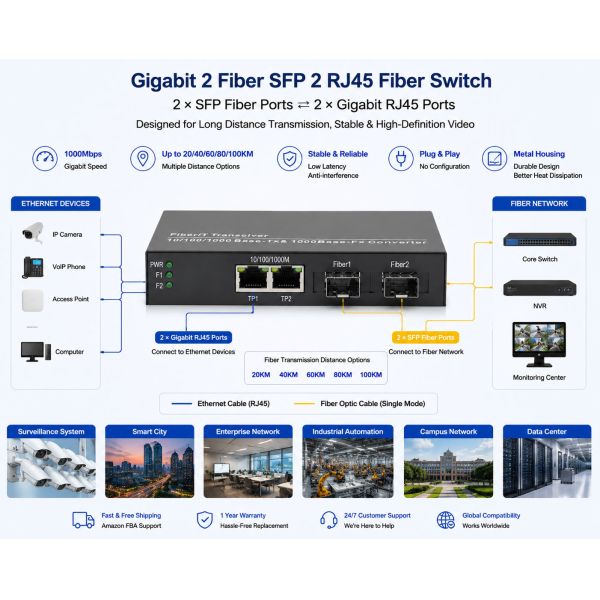

This unmanaged Gigabit fiber switch features 2 SFP fiber ports and 2 Gigabit RJ45 ports, providing reliable network expansion and long-distance fiber connectivity. Ideal for surveillance systems, enterprise networks, and fiber-to-Ethernet applications requiring stable performance and simple deployment.

Product Description

The Unmanaged Gigabit Fiber Switch is designed to provide fast and reliable connectivity between fiber optic networks and Ethernet devices. Equipped with two Gigabit SFP fiber ports and two 10/100/1000Mbps RJ45 ports, it enables seamless data transmission while extending network coverage over long distances.

Featuring a plug-and-play design, this switch requires no software installation or configuration, making deployment quick and effortless. The high-performance switching engine ensures smooth traffic forwarding, while the fanless metal enclosure delivers efficient heat dissipation and long-term reliability.

Suitable for surveillance systems, business networks, campus deployments, and fiber access projects, this switch offers a cost-effective solution for expanding network infrastructure.

Product Features

  • 2 Gigabit SFP Fiber Ports for high-speed optical connectivity
  • 2 Gigabit RJ45 Ethernet Ports with auto-negotiation support
  • Unmanaged Plug-and-Play Design for simple installation
  • Non-Blocking Switching Performance for smooth data transmission
  • Store-and-Forward Architecture enhances network stability
  • Supports Long-Distance Fiber Communication
  • Fanless Metal Housing for silent operation and efficient cooling
  • Auto MDI/MDIX Function on all RJ45 ports
  • LED Indicators for power and network status monitoring
  • Reliable 24/7 Continuous Operation

Technical Specifications

Parameter Specification
Product Type Unmanaged Gigabit Fiber Switch
Fiber Ports 2 × Gigabit SFP Slots
Ethernet Ports 2 × 10/100/1000Mbps RJ45
Switching Capacity 8 Gbps
Packet Forwarding Rate 5.95 Mpps
MAC Address Table 4K Entries
Switching Mode Store-and-Forward
Jumbo Frame 9KB
Network Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Flow Control IEEE 802.3x
Fiber Type Single-Mode / Multi-Mode SFP Modules
Fiber Distance Up to 120km (depending on SFP module)
Ethernet Distance Up to 100m
Power Supply DC 5V–12V
Power Consumption ≤ 5W
Housing Material Metal Enclosure
Cooling Design Fanless
LED Indicators Power, Fiber Link/Act, Ethernet Link/Act
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5%–95% RH Non-Condensing
Installation Desktop / Wall Mount

Applications

IP Surveillance Systems
Fiber-to-the-Desk (FTTD) Networks
Enterprise LAN Expansion
Campus Network Infrastructure
ISP Access Networks
Security Monitoring Projects
Factory & Warehouse Connectivity
Small and Medium Business Networks
