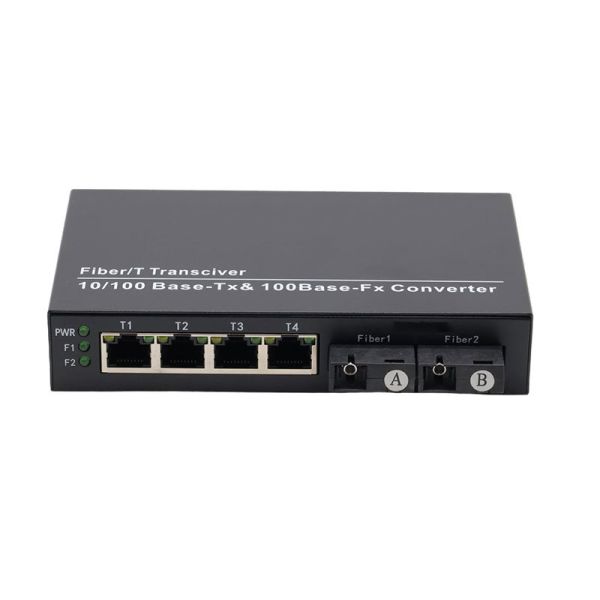

High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
High Speed Desktop 100 Mbps Fiber Switch 2-SC Fiber 4 Port Ethernet Switch
Specifications
Number Of Ports :
Varies (commonly 4, 8, or 16 ports)
Switch Type :
Fiber Switch
Data Transfer Rate :
100Mbps
Packaging Details :
1pcs/box
Certification :
CE ROSH FCC ISO
Place of Origin :
CHINA
Supported Fiber Cable :
Single-mode or Multi-mode
Forwarding Rate :
148,800 packets per second (example value)
Model Number :
ATD-MC2F4E
Power Supply :
External or Internal Power Adapter
Delivery Time :
5-7 days
Payment Terms :
T/T
Duplex Mode :
Full and Half Duplex
Brand Name :
OEM
Mac Address Table Size :
8K to 16K entries
Supply Ability :
50000Pcs/Month
Description

100Mbps 2-SC Fiber + 4-Port Ethernet Switch – High-Speed Desktop Network Converter

Product Overview

This 100Mbps fiber-to-Ethernet switch features 2 SC fiber ports and 4 RJ45 ports for seamless network integration. Ideal for extending network distances up to 20km, it ensures stable, high-speed data transmission for office and industrial applications.

Product Description

The 100Mbps 2-SC Fiber + 4-Port Ethernet Switch provides reliable connectivity between fiber optic and copper networks. Designed for small businesses, security systems, or office networks, this compact switch supports fast data transfer, long-distance fiber communication, and easy plug-and-play installation. Its LED indicators provide clear status for power, fiber link, and Ethernet connectivity, simplifying network monitoring and troubleshooting.

Key Features

  • High-Speed Connectivity: Supports 10/100Mbps Ethernet and fiber links.
  • Dual Fiber Ports: Two SC fiber ports allow distances up to 20km.
  • Plug-and-Play: No configuration required; quick and easy setup.
  • LED Indicators: Clear visual status for power, fiber, and Ethernet ports.
  • Versatile Application: Perfect for office networks, surveillance systems, and data transfer.
  • Compact Design: Space-saving and durable desktop installation.

Technical Specifications

Parameter Specification
Ethernet Ports 4 × RJ45 10/100Mbps
Fiber Ports 2 × SC 100Mbps (single-mode/multi-mode, optional)
Transmission Distance Up to 20km (depending on fiber type)
LED Indicators Power (PWR), Fiber (F1, F2), Ethernet (T1–T4)
Power Supply 5V/12V DC (depending on model)
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Dimensions 125 × 85 × 30 mm (approx.)
Mounting Desktop

Applications

  • Extending network distances between buildings
  • Security camera systems (CCTV)
  • Small office/home office (SOHO) networks
  • Industrial monitoring and data transfer
