Specifications
Certification :
CE ROSH FCC
communication mode :
Full-Duplex & Half-Duplex
transmission rate :
10/100Mbps
MOQ :
10
Installation :
DIN Rail
Operating Temperature :
-30 ~ 80℃
Brand Name :
OEM
Power Supply :
DC9-57V
Delivery Time :
5-7 days
Packaging Details :
1pcs/box
Payment Terms :
T/T
Place of Origin :
China
Shell Material :
Metal
Price :
4$-5.5$/pcs
Model Number :
ATD-MIDS05E
Size :
90*56*26mm
Supply Ability :
20000pcs/Month
Description

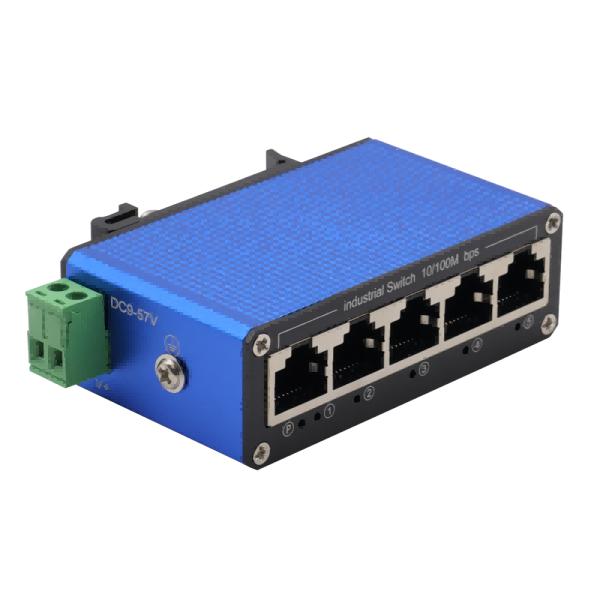

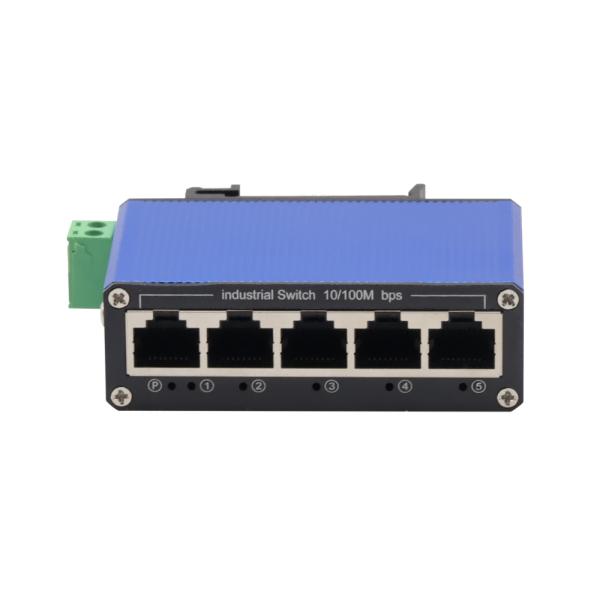

Mini Ethernet Industrial Switch Compact 5 Port 10/100 Fast DIN Rail Mount Metal Housing Weatherproof

Product Description

This industrial fast Ethernet switch supports stable 10/100Mbps network transmission, perfectly suited for small and medium-scale network deployment scenarios.

Equipped with 5/8 auto-sensing 10/100Mbps Ethernet ports, all ports feature built-in Auto MDI/MDIX function for automatic straight/crossover cable recognition. Each port delivers up to 200Mbps full-duplex bidirectional data transfer speed.

Featuring simple installation and hassle-free daily maintenance, this reliable network switch serves as an optimal solution for SME enterprise network construction and daily network expansion

Product features

10/100Mbps Fast Ethernet speed, support 200Mbps full-duplex transmission

Auto MDI/MDIX function, plug and play without cable distinction

Sturdy metal enclosure, anti-drop and anti-interference

Standard DIN rail mount, space-saving & easy installation

Wide application for industrial, outdoor, office and SME network system

Specification

Transmission Distance
0-100 meter
Transmission Rate
10/100Mbps
Ports
5*10/100Mbps RJ45 ports
Network Cable
Cat5, Cat5e,Cat6,Cat7
Communication Mode
Full-Duplex & Half-Duplex
Power
DC9-57V
Installation Method
DIN-rail mounting
Lightning Protection Level
Second Level Lightning Protection
Applicable Environment
Industrial
Fan
No Fan, Natural Heat Dissipation
Dimensions (WxDxH)
90*56*26mm
Weight
0.2Kg
Relative Humidity
5%-95%
Operating Temperature:
-30°C to 80°C (-22°F to 176°F)
Shell Material
Aluminium Alloy
Networking Protocol
IEEE803.3 10Base-T,IEEE203.3i 10Base-T,IEEE802.3u,100Base-TX/FX,IEEE802.3ab 100Base-T,IEEE802.3z 100Base-X,IEEE802.3x

Industrial Mini Ethernet Switch 5 Port 10/100Mbps DIN Rail Mount Weatherproof

Our Services & Strength
Support OEM&ODM, For Small Quantity Also can support just need accept reasonable cost.Support 3 Years Warranty
Delivery time will be in 7 days for normal model
FAQ
1. What's products your company manufacture

We Focus on Developing and producing Industrial Switch,HDMI Converter, Media Converter,Video Converter,POE Switch,Industrial POE Switch etc.

2. Can I get sample for free?

Yes, of course, we can free for under 30 USD. but need you pay shipping fee, or you provide your company DHL Fedex Account.

3. Can print Logo for me?
Yes, sure, we can support print LOGO for you, if quantity more, can print logo on the Box and carton

4.what delivery time?
Usually in 7 days, if you accept no Logo, can ship in one day.
