5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS
Specifications
Brand Name :
ATNJ
Model Number :
AT-MS-850/1800/2100
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+1150--1180+kit
Payment Terms :
T/T,Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability :
1000+unit+per day.
Delivery Time :
30 work days
Packaging Details :
Standard neutral packing
900MHz Frequency Range :
880-915MHz / 925-960MHz
1800MHz Frequency Range :
1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range :
1920-1980MHz / 2110-2170MHz
2600MHz Frequency Range :
2496-2690MHz / 2496-2690MHz
Material :
Zinc Alloy ,Plastic
Booster Bandwidth :
Wide Range
Support network :
2G, 3G, 4G, 5G Voice
Booster Warranty :
36 Months
Products Type :
Cellular Signal Booster, amplificadores de seal de celular de 5w
Description

Customized 5-Watt Quad-Band 900/1800/2100/2600MHz Repeater System


Product Detail:


Model No : AT-35-L8GDWL26

With ALC AGC Function

Can control gain automatically. Avoid base station interference

(Band 8) 900MHz -- Uplink frequency : 880-915MHz/Downlink frequency : 925-960MHz
(Band 3) 1800MHz -- Uplink frequency : 1710-1785MHz/Downlink frequency : 1805-1880MHz

(Band 1) 2100MHz -- Uplink frequency : 1920-1980MHz/Downlink frequency : 2110-2170MHz

(Band 41) 2600MHz -- Uplink frequency : 2469-2690MHz/Downlink frequency : 2469-2690MHz


Network support : 2G 3G 4G 5G Voice


Gain : 90dB


Output power : 5watt


Power Supply : AC110V～220V;DC+24V 5A


Connector Type : N-F


Wide Range .


P/N: AT-35-L8GDWL26

B8 (900MHz)

B3 (1800MHz)

B1(2100MHz)

B41 (2600MHz)

Frequency Range

Uplink

880-915MHz

1710-1785MHz

1920-1980MHz

2469-2690MHz

Downlink

925-960MHz

1805-1880MHz

2110-2170MHz

2469-2690MHz

Bandwidth

35MHz

75MHz

60MHz

221MHz

Max. Gain

Uplink

80±3 dB

80±3 dB

80±3 dB

80±3 dB

Downlink

90±3 dB

90±3 dB

90±3 dB

90±3 dB

Manual Gain Control

31 dB in step of 1 dB

Automatic Gain Control

≧ 20 dB

Gain Flatness (per sub-band)

≦ ±4 dB (peak-to-peak)

Max. Input Power Without Damage

0 dBm

Output Power

Uplink

25±2 dBm

25±2 dBm

25±2 dBm

25±2 dBm

Downlink

35±2 dBm

35±2 dBm

35±2 dBm

35±2 dBm

Spurious Emission

9KHz-1GHz

≦ -36dBm

1GHz-12.75GHz

≦ -30dBm

ACRR

±20/100MHz

≦-36dBc/30KHz

±40/200MHz

≦-40dBc/30KHz

EVM

≦ 8%

Frequency Stability

≦ ±0.01 ppm

Noise Figure

10dB

VSWR

≦ 2

System Delay

≦ 6 µs

RF Connector

N-Female

Impedance

50 Ω

Power Supply

Input:AC100~240V,50/60 Hz;Output:24V8A

Power Consumption

≦ 85W

Dimensions

416*268*88mm

Weight

≦ 15kg

IP Rating

IP40

Operating Temperature

-25 °C to 55 °C

Control & Monitoring

Local/Remote

Optional


Selling Point


Signal booster could be used for both phone calls and the latest LTE network at the same time. There is no limit to the number of mobile devices that can benefit from the improved internet.


Not only improves mobile signals, but also reduces excessive radiation from mobile devices in areas with weak GSM/4G signal.


♦ Outdoor Antenna:

Receive outside phone signal from Base Station


♦ Signal Booster:
Strengthen outside phone signal to inside use


♦ Indoor Antenna:

Transmiss the phone signal strengthened inside home


♦ Jump Cable:

For connecting the antennas to the signal booster

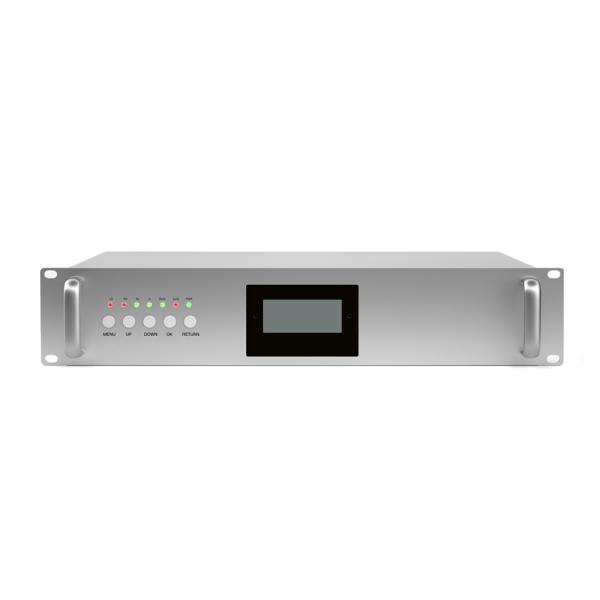

Product Pictures


5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS

5Watt Quad-Band 900/1800/2100/2600MHz Repeater system high power DAS



FAQ:


Q1: Do you have CE or any other certification?

A: Yes,we CE, , ROHS certification,etc.


Q2: Can you give me a discount?

A: Please discuss with our sales.


Q3: How about gain and output power of your device?

A: Different models, gain and output power are different,for more details, please contact us.


Q4: How many square meters can be covered?

A: For different models, the covered square meters are different.


Q5: Can I use your device in suburbs or remote areas?

A: Yes, as long as you can find a good signal source, our signal booster can help you solve signal problems in remote areas.
