10 Watt Band Selective Repeater
10 Watt Band Selective Repeater
10 Watt Band Selective Repeater
10 Watt Band Selective Repeater
10 Watt Band Selective Repeater
10 Watt Band Selective Repeater
Specifications
2100MHz Frequency Range :
1920–1945/2110–2135MHz; 1945-1960/2135-2150MHz
Bandwidth 2100MHz :
25MHz & 15MHz
2600MHz Frequency Range :
2520-2535MHz/2640-2655MHz
Network Protocols :
TETRA/P25/DMR/GSM/WCDMA/LTE/NR/WiFi
Cellular Networks :
2G 3G 4G, Voice
RF Connector(Customers to Choose) :
N -Type (Female)
Bandwidth 2600MHz :
15MHz
Brand Name :
ATNJ
Model Number :
AT-40-1800/2100/2600
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5pcs
Price :
USD+2300--2550+pcs
Supply Ability :
1000+unit+per day.
Delivery Time :
25 work days
Packaging Details :
Standard neutral packing
Bands Support :
VHF, UHF, N71, N28, N5, N20, N8, N66, N3, N1, N40, N7, N78, N77, N79
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Bandwidth 1800MHz :
25MHz
1800MHz Frequency Range :
1710-1735MHz/ 1805-1830MHz
Description
10 Watt Band Selective Repeater
High power Digital band selective 10Watt engineering cellular signal amplifier 40dBm repeater
Product Introduction
A digital channel-selective cell phone signal amplifier is a specialized device designed to enhance specific frequency bands in cellular signal transmission for mobile communication. It leverages digital signal processing techniques to selectively amplify desired frequency ranges while minimizing interference and noise from unwanted frequency components.
The working principle involves several key steps. First, the device captures incoming cellular signals using an outdoor antenna strategically positioned to receive the best available signal from nearby cell towers. Digital signal processing then isolates and amplifies specific frequency bands while filtering out interference.
In summary, this digital channel-selective cell phone signal amplifier utilizes advanced digital signal processing to isolate, amplify, and optimize specific frequency bands, ultimately enhancing cellular signals and improving mobile communication experience.
Key Features
  • Bandwidth and Center Frequency Selective: Each subband can be individually turned on/off with separate gain control
  • LCD Display: User-friendly interface showing input/output signal strength, installation details, power status, AGC, and other important information
  • Sleep Mode: Automatically enters sleep mode during inactivity to conserve energy
  • Automatic Operation Adjustment: Self-adjusting system gain and signal level to prevent self-excitation; automatic shutdown if problems occur
Technical Specifications
Specifications Parameters
Frequency Range 1800MHz: 1710-1735MHz, 1805-1830MHz
2100MHz: 1920-1945MHz, 2110-2135MHz
2100MHz: 1945-1960MHz, 2135-2150MHz
2600MHz: 2520-2535MHz, 2640-2655MHz
Bandwidth 1800MHz: 20MHz
2100MHz: 25MHz & 15MHz
2600MHz: 15MHz
RF Carriers ARFCN Filtering Digital
Gain UL: 85±3 dB, DL: 90±3dB
Output Power UL: 25±2dBm, DL: 40±2dBm
Automatic Gain Control 30dB/1dB
Minimum Input Power ≥ -90dBm
Gain Flatness / PB Ripple ＜ 4dB
Automatic Level Control ≥ 25dB
EVM ≤8
VSWR ≤1.8
Noise Figure ≤8dB
Group Delay ≤10μs
RF Connector N-Type (Female)
Storage Temperature -40°C to +85°C
Operating Temperature -25°C to +55°C
Power Supply 195-265 VAC
Power Consumption ≤100W
Barometric Pressure 55 kPa - 106 kPa
Environment Conditions IP65
Relative Humidity 5% - 95%
Weight ≤20kg
Size 596 x 400 x 203.5 mm

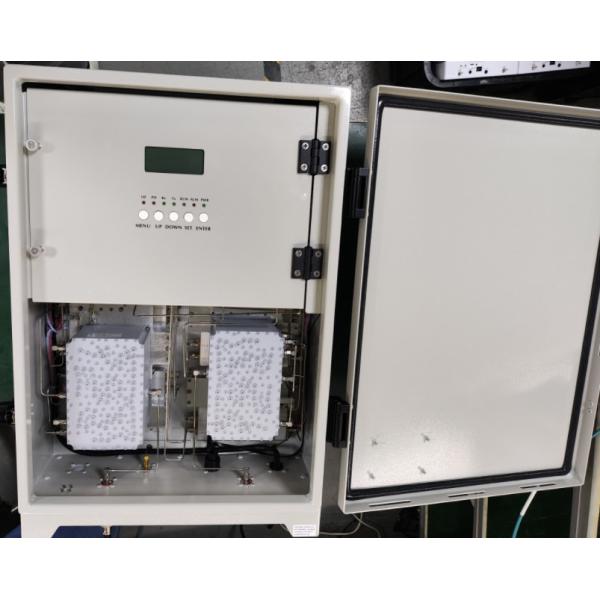

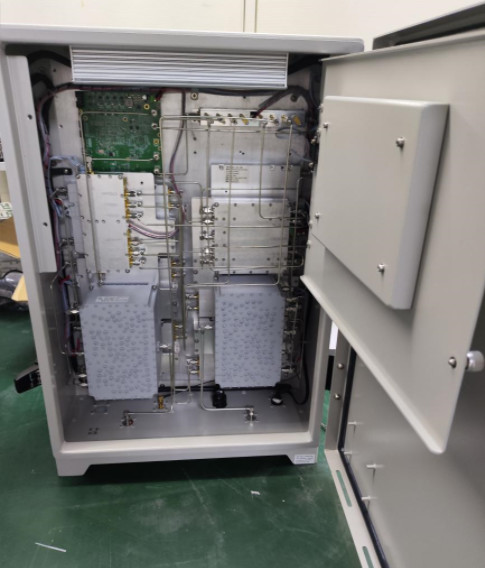

Product Images
10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater 10 Watt Band Selective Repeater
Shipping Information
  • Parcels shipped within 48 hours after payment confirmation
  • Please provide correct address, full name, and zip code
  • Lower value declaration to minimize customs taxes
  • Import taxes are buyer's responsibility
  • Fast shipping options available (FedEx, UPS, DHL)
  • Contact us for delivery issues beyond promised time
Frequently Asked Questions
Why choose us for cooperation?
We have professional engineers to develop products suitable for worldwide use. We provide 24/7 support and handle all technical problems promptly.
Are you a trading company or manufacturer? Can I use my own logo?
We are a factory with comprehensive trading services. We provide OEM/ODM services for custom branding.
What is your warranty time?
We offer a 3-year warranty for all products. Man-made damage and natural factors are not covered under warranty.
Can this mobile signal repeater create a signal where there is no cell signal before?
The mobile signal repeater cannot produce a signal; it only amplifies existing weak signals.
Is it easy to set up your items?
Yes. We provide comprehensive user manuals and 24/7 technical support for installation and setup.
