GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
Specifications
900MHz Range :
Band8: 880-915MHz/925-960MHz
800MHz Range :
Band20: 832-862MHz/791-821MHz
Repeater Gain :
70dB
Connector :
N-Female Connector
Brand Name :
ATNJ
Model Number :
JS-DB800/E900
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+120---145+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
Products Type :
signal booster, 2G 3G 4G signal booster
Coverage :
100~300sqm
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Output power :
17-20dBm

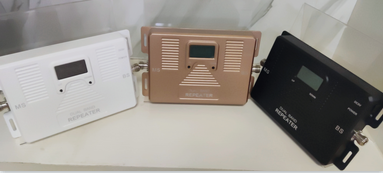

Color for Choice :
White ,Gold ,Black Customized
Description
GSM LTE 2G 4G Signal Repeater for Vodafone, Orange, O2 & T-Mobile Networks
Product Overview
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal

ATNJ RF repeater features an industrial design that combines multiple mobile network signals to enhance voice and data communication. This cost-effective solution provides reliable signal improvement with easy installation and maintenance.

Key Features

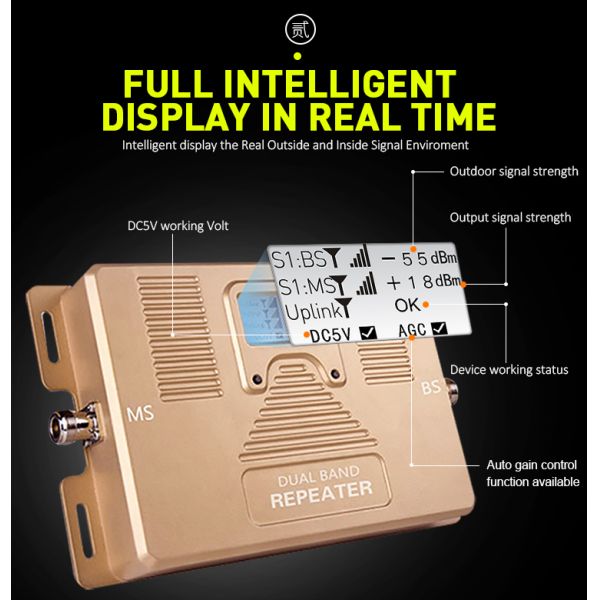

Intelligent installation guidance with LCD display
Real-time signal strength monitoring

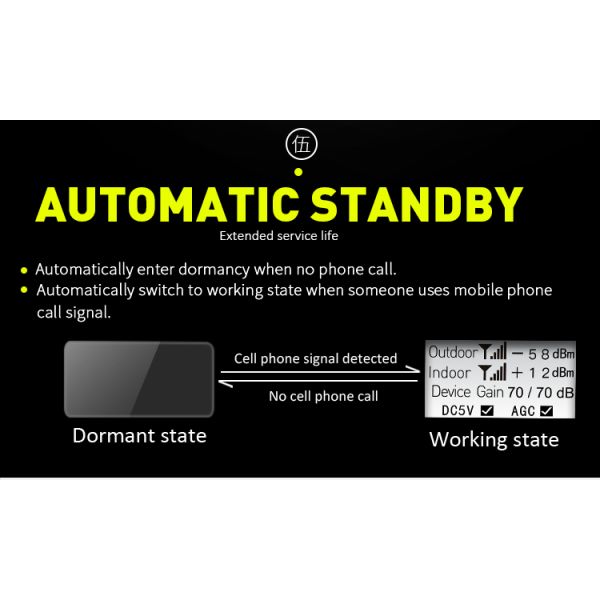

Automatic dormancy when no calls are active
Automatic alarm system for installation errors
Automatic gain adjustment to prevent self-excitation
Proactive damage notification system
Adjustable bandwidth from 0.2 to 20MHz (Customizable)
5G bandwidth support: 40-100MHz (Customizable)
WiFi monitoring and control with NMS (Optional)
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
Technical Specifications
Specification Parameters
Frequency Range LTE 800MHz: 832-862MHz/791-821MHz
EGSM 900MHz: 880-915MHz/925-960MHz
Band Width LTE 800MHz: 30MHz
EGSM 900MHz: 35MHz
Gain 68±3dB
Automatic Gain Control 31dB
MGC (Step Attenuation) 20dB @ 1dB/Step
Output Power 20dBm
Spurious Emission 9 kHz -150 kHz/1kHz: ≤-36dBm @1kHz
150 kHz - 30 MHz/10kHz: ≤-36dBm@10kHz
30 MHz - 1 GHz/100kHz: ≤-36dBm@100kHz
1 GHz- 12.75 GHz/1MHz: ≤-30dBm@1kHz
ACPR Uplink & Downlink fully comply with 3GPP 36.106
Unwanted emissions Fully comply with 3GPP 36.106
VSWR ≤2
Ripple LTE 800MHz: ≤5dB
GSM 900MHz: ≤5dB
Noise Figure ≤9dB
Delay ≤3μs
I/O Impedance 50Ω
RF Connector N-Type (Female) - Customizable
Operating Temperature -25°C to +55°C
Power Supply DC 5V2A
Power Consumption ≤15W
Environment Conditions IP43
Humidity ≤90%
Weight 0.35kg

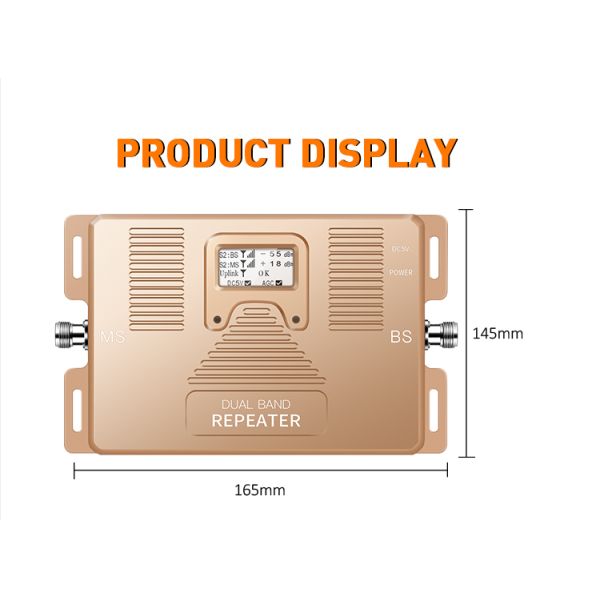

Size 145×165×38mm

For detailed specifications, download the product datasheet: 800+E900MHz A032 Mobile Signal Repeater.pdf

Product Images
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
How It Works
GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal

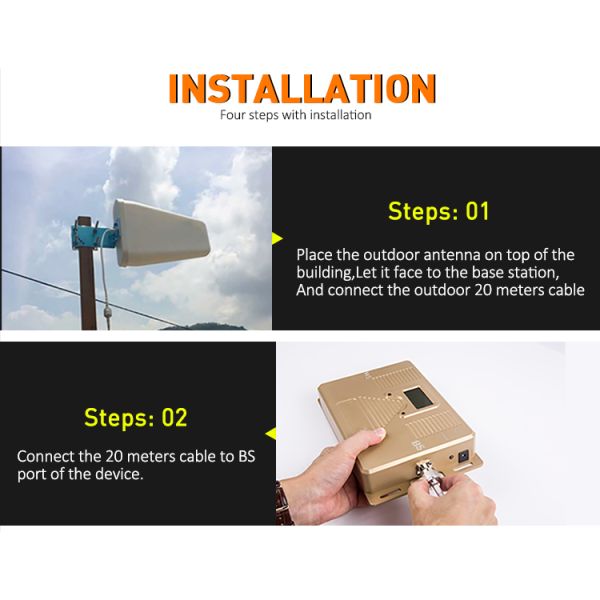

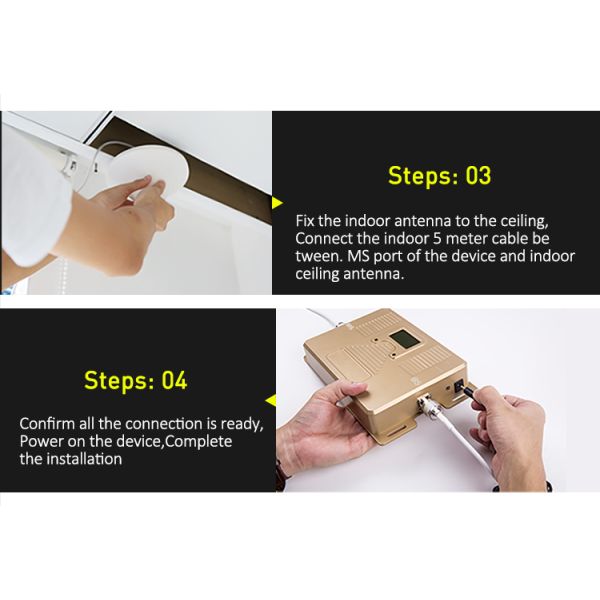

Wireless network signals travel through the air as radio waves. The outdoor antenna receives weak signals and transmits them to the indoor booster. The amplifier enhances the signal based on frequency and broadcasts the amplified signal through the indoor antenna, making it available for mobile devices.

Packaging & Shipping

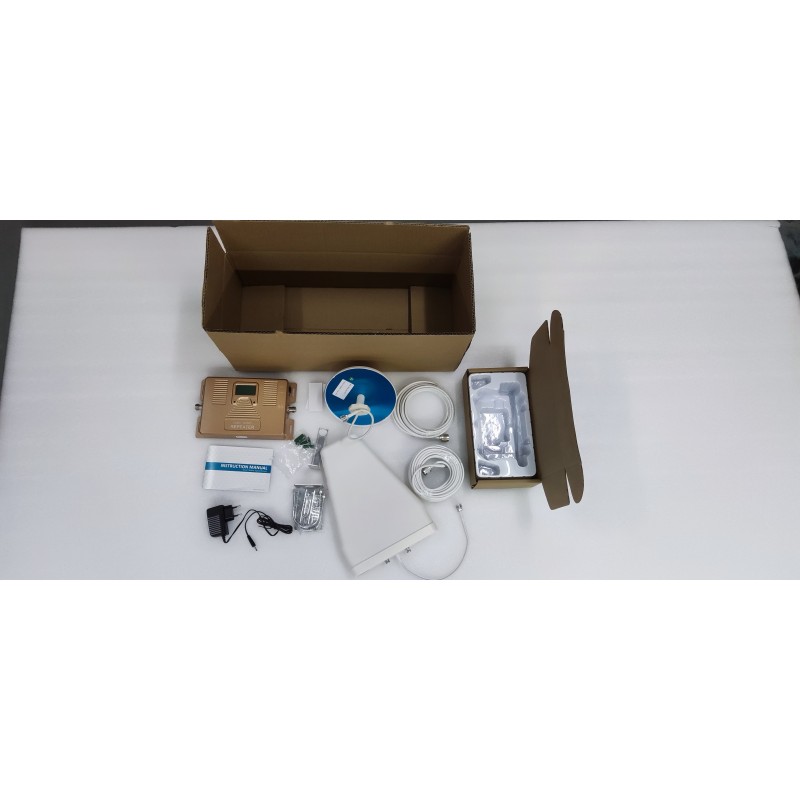

Packaging

We provide neutral packaging for international shipments to ensure product protection during transit.

GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
Shipping Information
  • Orders are processed and shipped within 48 hours after payment confirmation
  • Please provide correct address, full name, and zip code for delivery
  • Customs declaration values are adjusted to minimize import taxes
  • Import taxes and customs clearance are the buyer's responsibility
  • Expedited shipping options available (FedEx, UPS, DHL)
  • Contact us for any delivery issues beyond promised timelines
Company Profile

Shenzhen ATNJ Communication Technology Company was founded in 2010 in Nanshan District, Shenzhen, with over 900sqm factory space. Specializing in micro power signal boosters, wireless repeaters, and antenna systems, ATNJ has grown to a 2800sqm facility in Guangming District with over 50 employees.

The company participates in international trade exhibitions including Mobile World Congress in Spain and partners with major platforms like Global Sources. ATNJ continues to innovate with digital module signal repeaters featuring WiFi monitoring and 5G technology.

GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal GSM LTE 2G 4G Signal Repeater with 70dB Gain, 800MHz Range, and Automatic Gain Control for Enhanced Mobile Signal
Technical Expertise & Service

ATNJ employs highly qualified communication engineers with over ten years of industry experience. Our team specializes in R&D, design, testing, and compliance with international standards.

Warranty & Support:

  • 3-year warranty for main signal repeaters
  • 3-month warranty for accessories
  • Free repair services during warranty period (customer pays freight)
  • Full responsibility for non-human damage faults within first month

Contact us today to improve your signal quality and enhance your communication experience.

Customer Feedback

If you're satisfied with our products and service, we appreciate your positive reviews and recommendations. Your feedback helps us improve and assists others in finding reliable signal solutions.
