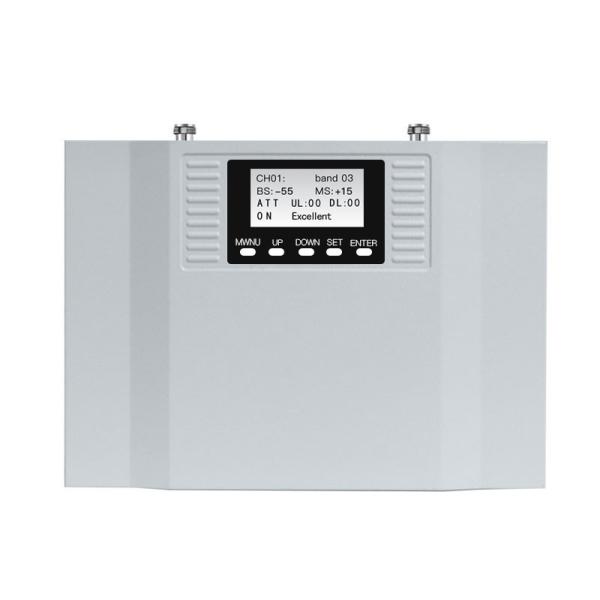

GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
Specifications
900MHz Frequency Range :
880-915MHz /925-960MHz
1800MHz Frequency Range :
1710-1785MHz / 1805-1880MHz
2100MHz Frequency Range :
1920-1980MHz / 2110-2170MHz
Bandwidth :
Wide Band,Supports from 0.2 to 20MHz adjusted
Power Supply :
100---220V
WIFI Control&Monitor :
Done
Packing Weight :
5kg
Products Type :
Digital Band Selective Repeater
Brand Name :
ATNJ
Model Number :
AT-D-GDW
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+360---480+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,48x46x18cm(1 kit),
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Description
Product Description

  • Digital Band Selective Tri Bands 900/1800/2100MHz mobile signal repeater

ATNJ Digital RF repeater with industrial design, Special for mobile provider need, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ Digital RF repeater is easy to install and maintain,which could help signal providers get fast solution.

Selling Point
①Intelligent to guide the installation with LCD
②Real time display the signal strength.
Automatic dormancy when no user make the calling .
③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) ,Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦WIFIMonitor+Control(Customized),NMS(network management system),Function Optional .
SPECIFICATIONS
PARAMETERS
Frequency Range
GSM 900MHz
890-915MHz/925-960MHz
DCS 1800MHz
1710-1785MHz /1805-1880MHz
UMTS 2100MHz
1920-1980MHz, 2110-2170MHz
Band Width
GSM 900MHz
25MHz, Supports from 0.2 to 20MHz adjusted by WIFI
DCS 1800MHz
75MHz, Supports from 0.2 to 20MHz adjusted by WIFI
UMTS 2100MHz
60MHz, Supports from 0.2 to 20MHz adjusted by WIFI
Gain
70dB
Automatic Gain Control
31dB
MGC (Step Attenuation)
31dB@ 1dB/Step
Output Power
17±3dBm
Spurious Emission
9 kHz -150 kHz/1kHz
≤-36dBm
150 kHz - 30 MHz/10kHz
≤-36dBm
30 MHz - 1 GHz/100kHz
≤-36dBm
1 GHz- 12.75 GHz/1MHz
≤-30dBm
ACPR
Uplink Fully comply with 3GPP 36.106
Downlink Fully comply with 3GPP 36.106
Unwanted emissions
Fully comply with 3GPP 36.106
VSWR
≤2
Ripple
GSM 900MHz
≤3dB
DCS 1800MHz
≤3dB
UMTS 2100MHz
≤3dB
Noise Figure
≤8dB
Delay
≤5μs
I/O Impedance
50Q
RF Connector(Customers to Choose)
N-Type (Female)
Operating Temperature
-25°~+55°
Power Supply
DC 5V
Power consumption
≤75W
Environment Conditions
IP43
Humidity
≤90%
Weight
1.5kg
Remote NMS and WIFI Function
Support(Customzied)
Size
268×170×71mm
GSM UMTS 900 1800MHz Digital Tri Band Repeater , 2G 3G 4G Cellular Signal Booster
Product Usage

How It Works
Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the weak signal
from the air and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the
amplified signal through the indoor antenna making it available for use.

FAQ

Q1 Could you send us antenna sample for qulification?
A : Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.


Q2 What's the minimum order of your company?
A : Our company didn't define the min order, we will offer any quantity demands.

Q3 May I visit your company?
A : We will be always right here waiting for you.

Q4 Are you a manufacture or a trading company?
A : We've manufactured mobile signal booster with Professional Technology for ten more years.

Q5 Do you accept customizable antenna?
A : Yes, we accept OEM & ODM.

Q6 What't your sample lead time?
A : We will ship within 15days after been paid.

Q7 What is your payment terms?

A : We accept Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
