ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
Specifications
Support network :
2G 3G, Voice
Booster Power :
17--20dBm
Material :
Zinc Alloy ,Plastic
Trademark :
ATNJ
Brand Name :
ATNJ
Model Number :
AS-G3
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+40---49+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Application :
indoor
Booster Bandwidth :
35MHz
Warranty :
3 Years
Coverage :
Up to 300 sqm
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Band8 900MHz Frequency Range :
880-915MHz，925-960MHz
Booster Gain :
70dB
Connector Type :
SMA/F Connector
Description
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
Product Overview

2G 3G Voice 900MHz GSM Signal Repeater Amplifier IP40 Protection

Signal Booster Repeater 900MHz GSM Cell Phone Amplifier

Key Features

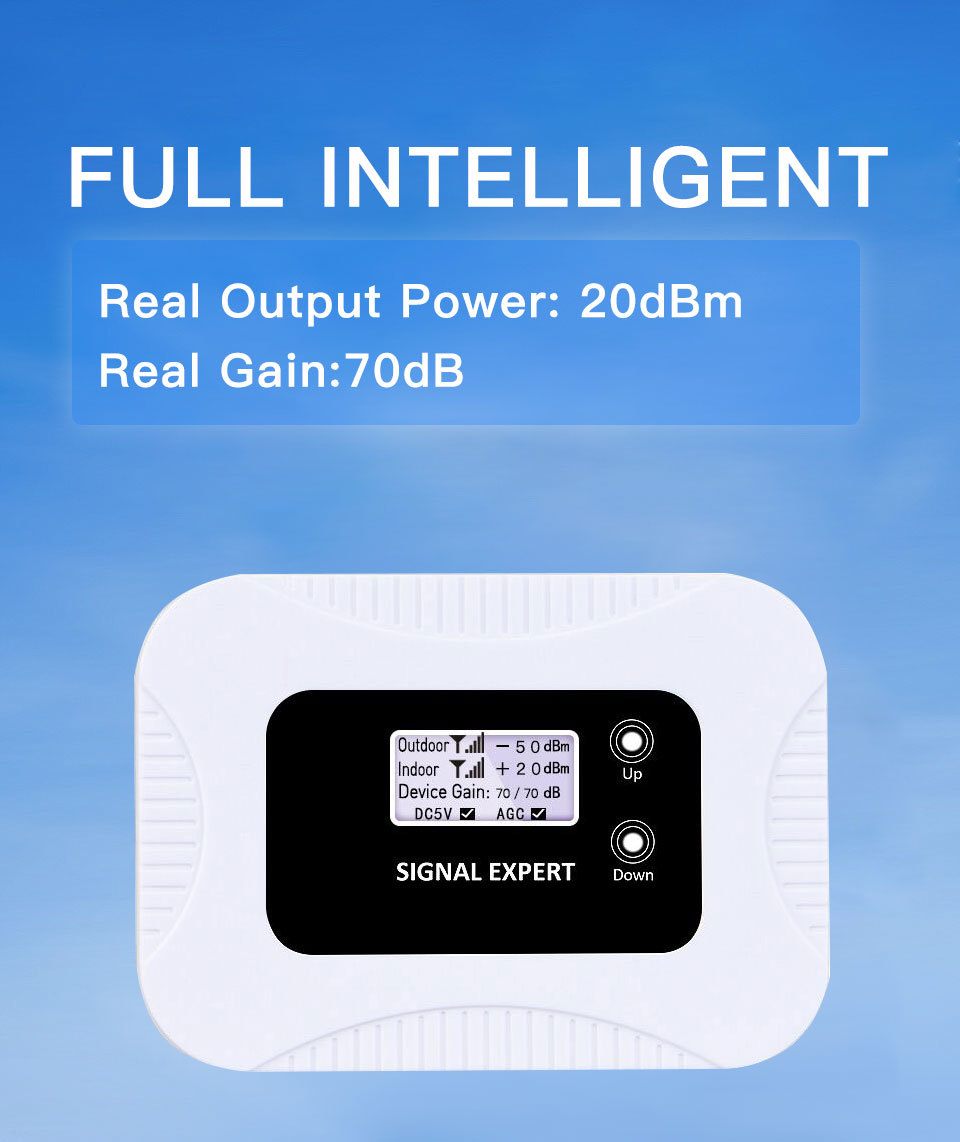

  • Intelligent installation guidance with LCD display
  • Real-time signal strength monitoring
  • Automatic dormancy when no calls are active
  • Automatic alarm system for installation errors with solutions
  • Automatic gain adjustment to prevent repeater self-excitation
  • Proactive damage detection and alerts
Technical Specifications
Model AS-G3
Frequency Range Uplink: 890~915MHz, Downlink: 935~960MHz
Working System GSM 900MHz
Gain 70dB
Device Output Power 17-20dBm
Bandwidth Wide Band
Ripple in Band ≤4dB
Noise Figure @ Max.Gain ≤6dB
V.S.W.R ≤2dB
MTBF >50,000 Hours
Power Supply AC: 90~265V; 50/60Hz DC: 9V 3A
Power Consumption <20W
Impedance Matching 50ohm
RF Connector SMA Female
Cooling Heatsink Convection Cooling
Dimension 170*130*26(mm)
Net Weight 0.35KG
Installation Type Wall Installation or Desk
Environment Conditions IP40
LCD Intelligent Guide Yes
Operating Temperature -10°C~55°C
Documentation
Download Product Specification (PDF)
Product Images
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
About ATNJ Communication Technology
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC
Frequently Asked Questions
I am in France and which band/frequency should i choose?
ATNJ Intelligence Automatic Gain Adjustment 900MHz GSM Signal Booster Repeater with AGC and ALC

Usually the typicial frequencies work in France mobile operators should be 900/1800MHz---2G,900/2100MHz---3G and 700/800/1800/2100/2600MHz work for 4G and part of 5G. Feel free to contact us for confirming a suitable model at your local pls.

What is your advantage?

• Your inquiry will be replied within 24 hours

• Well-trained and experienced staff fluent in English

• OEM & ODM services for customized product design

• All products include 12-month guarantee

What are your payment methods?
We accept T/T, Western Union, PayPal, and L/C for established customers.
What are your shipping & trade terms?

• Shipping: By sea, air, or courier (UPS, FEDEX, EMS, DHL, etc.)

• Delivery time: 1-3 business days for samples, 10-25 days for mass orders

• Trade terms: EXW, FOB, CIF, etc.

What is your warranty and certificates?

• 12-month warranty

• Certifications: CE, ROHS, CCC

What is your MOQ?
1 piece sample test is welcomed.
How to install a mobile signal booster?

Though configurations may vary by model, installation principles remain consistent. Place one antenna outdoors (preferably on the roof), with the second antenna and booster box installed indoors. Ensure adequate vertical separation between antennas and connect all components with coaxial cables. Detailed instructions are provided in the user manual included with your booster kit. We supply complete kits, so no additional purchases are necessary.
