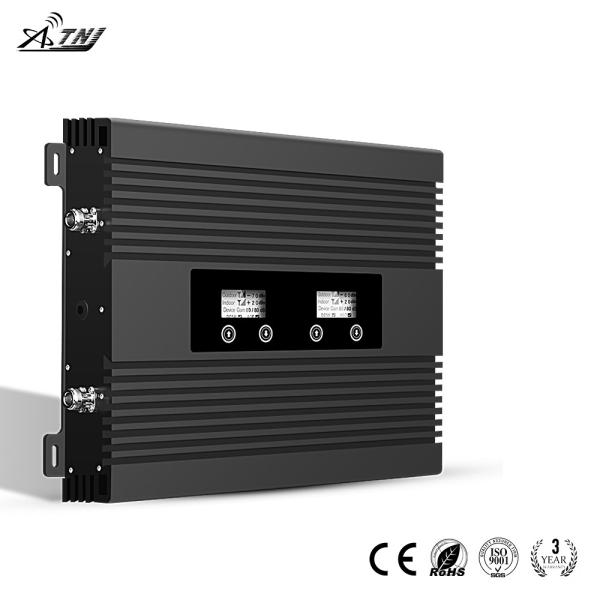

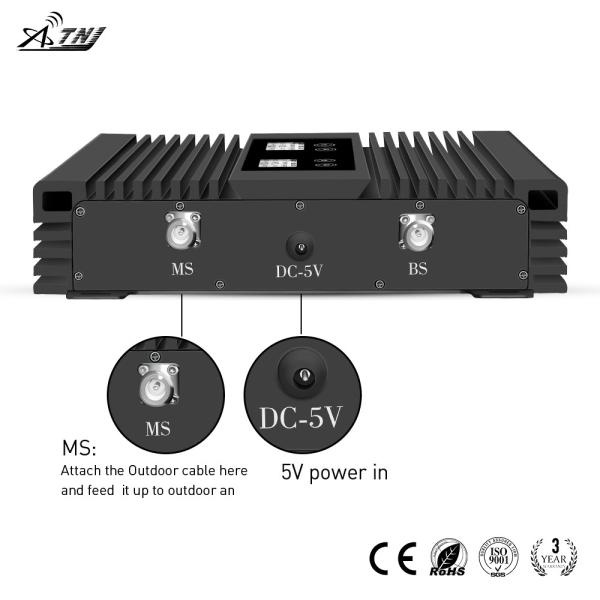

Tri Band Repeater 900MHz 1800MHz 2100MHz Cellular Signal Booster
Tri Band Repeater 900MHz 1800MHz 2100MHz Cellular Signal Booster
Tri Band Repeater 900MHz 1800MHz 2100MHz Cellular Signal Booster
Tri Band Repeater 900MHz 1800MHz 2100MHz Cellular Signal Booster
Specifications
Frequency Range :
Band1 2100MHz+Band8 900MHz+Band 3 1800MHz
Device Gain :
65±2dB
Output power :
17dBm
Color :
Black
AGC Intelligent Function :
Done,31dB @ 1dB/ Step
ALC Intelligent Function :
Done
MGC Function :
Done
In-band Ripple :
≤ 3dB
VSWR :
<=2
Noise Figure :
≤ 5dB
System Delay :
≤ 5μs
RF Connect Type :
N/F
Power Supply :
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Inter-Modulation Attenuation ACPR :
≤ -40dBc / 30kHz (measured under rated output power)
Packing Weight :
10kg
Packing size :
48x46x18cm
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Brand Name :
ATNJ
Model Number :
JS-GDW
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+315---330+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,48x46x18cm(1 kit),
Description
900MHz 1800MHz 2100MHz Tri Band Repeater Cellular Signal Amplifier Booster
Product Specifications
Attribute Value
Frequency Range Band1 2100MHz + Band8 900MHz + Band3 1800MHz
Device Gain 65±2dB
Output Power 17dBm
Color Black
AGC Intelligent Function Done, 31dB @ 1dB/Step
ALC Intelligent Function Done
MGC Function Done
In-band Ripple ≤ 3dB
VSWR ≤ 2
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connect Type N/F
Power Supply AC 110~220V±20%, 50/60Hz (AC 220V/DC5V/2A power adapter)
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
Packing Weight 10kg
Packing Size 48×46×18cm
Detailed Technical Specifications
Frequency Uplink Downlink
GSM 900MHz 890-915MHz 935-960MHz
4G 1800MHz 1710-1785MHz 1805-1880MHz
3G 2100MHz 1920-1980MHz 2110-2170MHz
Key Features
  • Max. Gain: 65dB±2dB
  • Max. Output Power: 17dB±2dB
  • Wide Bandwidth
  • Ripple in Band: ≤ 8dB
  • Noise Figure: ≤ 6dB
  • VSWR: ≤ 2.0
  • Time Delay: ≤ 1.5 μs
  • MTBF: > 50000 hours
  • Impedance: 50 ohm
  • Power Supply: AC 90-240V, DC 5V/3A
  • Power and Alarm LCD indicators
  • RF Connector: N-Female
  • Heatsink convection cooling
  • Operating Temperature: -10°C to +55°C
  • IP40 protection rating
  • Wall installation
  • Compact size: 323×269×58mm
  • Gross weight: 2.5kg
Download complete product specification document
Product Images
Frequently Asked Questions
Q1: Do you have CE or any other certification?
A: Yes, we have CE, ISO, ROHS and CCC certification, etc.
Q2: How about gain and output power of your device?
A: Different models have different gain and output power specifications. For more details, please contact us.
Q3: How long is warranty period?
A: The warranty is 12 months. And we offer 7×24 technical support.
Q4: What's your device lifespan?
A: Normally our device can be used 5-10 years.
Q5: How many square meters can be covered?
A: Coverage area varies by model. Please contact us for specific coverage details.
Q6: Can I use your device in suburbs or remote areas?
A: Yes, as long as you can find a good signal source, our signal booster can help solve signal problems in remote areas.
