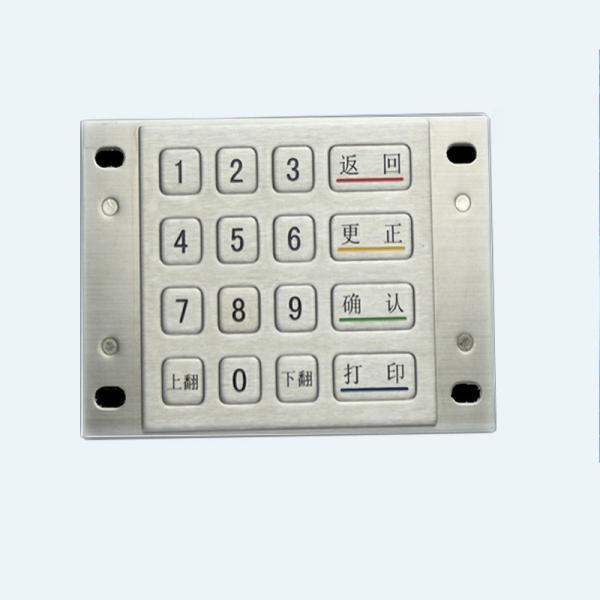

Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel
Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel
Specifications
Brand Name :
KMY
Model Number :
KMY3501A
Certification :
CE, RoHS, FCC
Place of Origin :
Guangdong China
MOQ :
1
Price :
$40.00 - $146.00 / Unit
Payment Terms :
T/T
Supply Ability :
5000pcs per month
Delivery Time :
5-15days
Packaging Details :
carton
Material :
Metal
Cable :
USB
Warranty :
1 Year
Size :
100 x 91.5 mm
Application :
Payment Kiosk, ATM
Keystroke life time :
> 2,000,000
Description

Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel

IP65 Waterproof Encrypted EPP Pin Pad with 16 Keys Payment Kiosk Metal PIN Pad

Model No.: KMY3501A

Faceplate dimensions: 100 x 91.5 mm

Interface: RS232 or USB

Supported Algorithms

Ø DES user data ECB/CBC encryption/decryption

Ø 3DES user data ECB/CBC encryption/decryption

Ø DES MAC calculation

Ø 3DES MAC calculation

Ø DES PIN encryption

Ø 3DESPIN encryption

Structure

The KMY EPP is mainly constructing with the components as bellow:

1. 16 pieces of stainless steel keycaps

2. Stainless steel frame

3. Tamper resistant secure box

4. Main board, all electronic components are layout on the board

5. It can be applied to different ATMs / Kiosks.

Appearance

1. Keypad made of high quality stainless steel

2. Customizable layout, dimension and installation design

3. Braille key design for visually handicapped people

Mechanical Performance
Panel Features Imported stamping stainless steel material, oil-free, does not absorb sweat
Keys Stainless steel material
Key lifespan >3 Million times long life use
Key Pressure 2~3N strong bearing
Key Travel 0.45mm
Key Fonts etched and durable ink, solid
Activation Dynamics 50g
Protection Capacity Sensitive data securely be kept over 5 years when power-off
Electrical Performance
Interfaces Type RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port
Power Supply DC5V+10%
Power consumption <0.5W (dynamic), <0.2W(static)
Reliability MTBF: >30,000H; MTTR: <30 min

Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel

Payment Kiosk IP65 Waterproof Encrypted Keypad Stainless Steel
