Self Service Kiosk Waterproof SS304 Backlit Number Pad With 16 Keys
Self Service Kiosk Waterproof SS304 Backlit Number Pad With 16 Keys
Specifications
Brand Name :
KMY
Model Number :
KMY3501A
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1
Price :
$40.00 - $146.00 / Unit
Payment Terms :
T/T
Supply Ability :
5000pcs per month
Delivery Time :
5-15days
Packaging Details :
carton
Material :
304 Stainless Steel
Cable :
USB
Warranty :
1 Year
Size :
100 x 91.5 mm
Keystroke life time :
> 2,000,000
Description

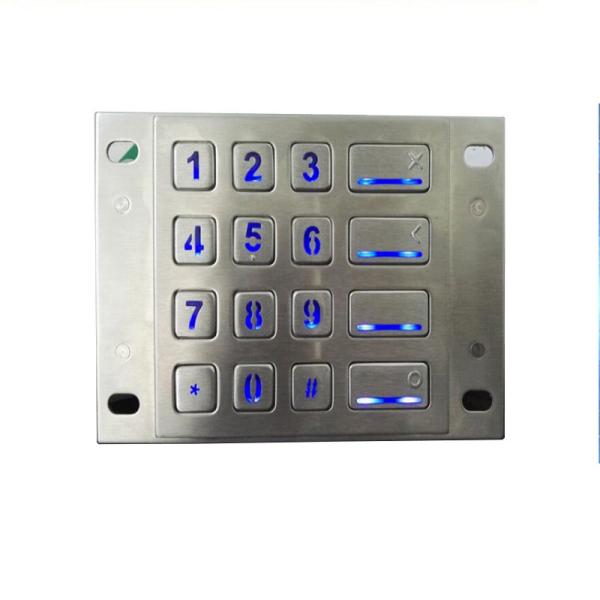

Self Service Kiosk Waterproof SS304 Backlit Number Pad With 16 Keys

Backlit Waterproof Stainless Steel Metal Keypad with 16 Keys Self-service Kiosk Numeric Keypad with Backlight

Model No.: KMY3501A

Faceplate dimensions: 100 x 91.5 mm

Interface: PS/2 or USB

Structure

The KMY Metal Keypad is mainly constructing with the components as bellow:

1. 16 pieces of stainless steel keycaps

2. Stainless steel frame

3. Tamper resistant secure box

4. Main board, all electronic components are layout on the board

5. It can be applied to different ATMs / Kiosks.

Appearance

1. Keypad made of high quality stainless steel

2. Customizable layout, dimension and installation design

3. Braille key design for visually handicapped people

Environment Requirements

Ø Operating temperature range: 0℃~ 60℃

Ø Storage temperature range: -25℃ ~ 80℃

Ø Relative humidity: 30%～90%

Ø Atmospheric pressure: 60～106 KPa

Ø For security reasons, the user PIN is deleted when the environment temperature is beyond the storage temperature range. The target level for this function is set to –30℃.

Approvals:

Ø Pass the certification of China Central Bank card testing center;

Ø CE, RoHS, FCC

Mechanical Performance
Panel Features Imported stamping stainless steel material, oil-free, does not absorb sweat
Keys Stainless steel material
Key lifespan >3 Million times long life use
Key Pressure 2~3N strong bearing
Key Travel 0.45mm
Key Fonts etched and durable ink, solid
Activation Dynamics 50g
Protection Capacity Sensitive data securely be kept over 5 years when power-off
Electrical Performance
Interfaces Type RS232 port, baud rate: 9600, no odd-even; standard USB2.0 port
Power Supply DC5V+10%
Power consumption <0.5W (dynamic), <0.2W(static)
Reliability MTBF: >30,000H; MTTR: <30 min
