SS304 Healthcare Medical Grade Keyboards 100x196mm Metal Mechanical Keyboard
SS304 Healthcare Medical Grade Keyboards 100x196mm Metal Mechanical Keyboard
Specifications
Model Number :
KMY3505A
Place of Origin :
China
Brand Name :
KMY
Certification :
CE,ROHS,FCC
MOQ :
50
Price :
It depends on quantity
Packaging Details :
High quality carton with customized foam inside
Delivery Time :
Within 3 working days for sample(US layout)
Payment Terms :
T/T.west union
Supply Ability :
3000pcs per month
Material :
Stainless Steel
Number Of Keys :
16
IP Protection Class :
IEC/DIN/EN/ 60529:IP65
IK Protection Class :
DIN EN 50102:IK07
Feature :
Bombproof|Drill-proof
Description

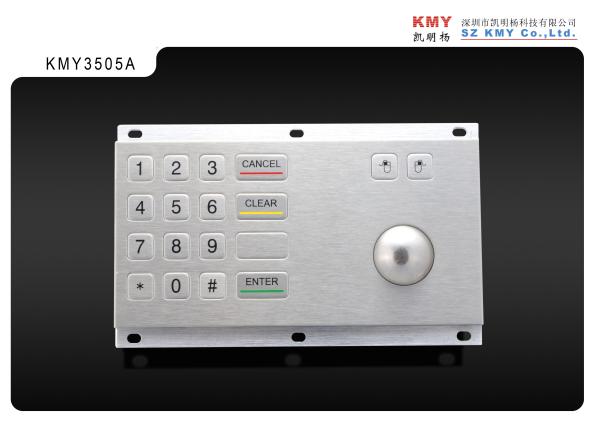

Healthcare Kiosk Dustproof Stainless Steel Metal Keypad With Pointing Device 100 x 196mm

Faceplate Dimensions(W×H):100×196

KMY3505As a stainless steel keypad with both numeric and function keys .

The layout could be any language and function keys could be customized .

rear mounting installation .

Application

Ø Check-in Kiosk

Ø Boarding Kiosk

Ø Info-Kiosk

Ø Internet Kiosk

Ø Medical Kiosk

Ø Industrial control platform

Ø Gaming machine

Ø Access control platform

Features

Ø High quality stainless steel keypad with trackball

Ø Customizable layout, dimension and installation design

Ø 16 keys: 10 numeric keys and 6 function keys

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Reliability and Performance Data

Ø Key lifetime > 2,000,000 cycles per key

Ø Force on keys: 2.5~3.5 N

Ø Key travel: >0.45mm

Ø Wide voltage input: 5V DC +/- 10%

Ø Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃‑ 60℃

Ø Storage temperature range: –25℃ - 80℃

Ø Relative humidity: 30%～90%

Ø Atmospheric pressure: 60～106 KPa
