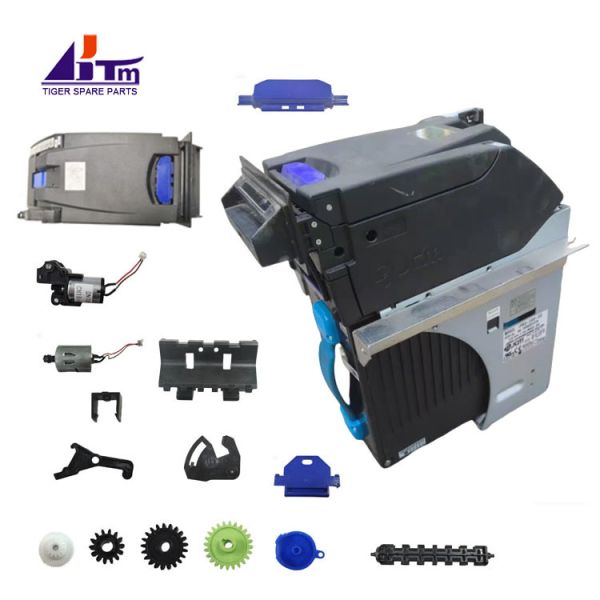

JCM IPRO-200-SS Bill Acceptor Spare Parts Repair Components
JCM IPRO-200-SS Bill Acceptor Spare Parts Repair Components
JCM IPRO-200-SS Bill Acceptor Spare Parts Repair Components
JCM IPRO-200-SS Bill Acceptor Spare Parts Repair Components
Specifications
Brand Name :
JCM
Model Number :
IPRO-200-SS
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10,000 Units Per Year
Delivery Time :
It depends on the quantity of your order
Packaging Details :
Carton / Pallet
Brand :
JCM
Model :
IPRO-200-SS
Type :
IPRO-200-SS Bill Acceptor with Money Box Spare Parts
Application :
Payment Terminals, ATMs, Kiosks, Vending, Gaming
Warranty :
90 Days
Condition :
New original / Refurbished / Compatible
Description
JCM IPRO-200-SS Bill Acceptor Spare Parts Repair Components
JCM IPRO-200-SS is a high-performance, self-centering single-note bill validator designed for payment terminals, ATMs, self-service kiosks, vending machines, and gaming equipment. It delivers reliable banknote validation, fast acceptance, and robust durability—making it ideal for high-traffic self-service payment environments. We supply genuine OEM, refurbished, and compatible repair spare parts for full maintenance and refurbishment of this unit.
Product Specifications
Parameter Details
Model IPRO-200-SS
Brand JCM
Application Payment Terminals, ATMs, Kiosks, Vending, Gaming
Note Acceptance Single note, self-centering
Compatibility CCTalk protocol, standard 12VDC input
Cash Box Capacity 1000 notes (standard)
Warranty 90 days
Condition New OEM / Refurbished / Compatible
Core Repair Spare Parts
Transport & Feeding Components
  • Feed Roller Assembly (JCM P/N: 900-100856R) - Main rubber roller for note entry, prone to wear/slippage
  • Pressure Roller & Spring Kit (900-100971R + 900-100973R) - Ensures consistent note traction
  • Transport Belt Set (900-200452R, 900-200453R) - Flat drive belts for note movement
  • Gear Set (M1-Z12/Z16) (900-100251R, 900-100254R) - Drive gears for transport mechanism
  • Pusher Plate Assembly (900-101027RA) - Note positioning component
  • Bushing & Linkage Kit (900-101026RA, 900-100972R) - Reduces friction in moving parts
Sensor & Validation Modules
  • Optical Sensor Array (Note Detection) (900-300125R) - Detects note presence, length, and alignment
  • Magnetic Head Assembly (900-300210R) - Validates magnetic security features on banknotes
  • LED/Photodiode Replacement Set (900-300305R) - For optical validation system
  • ICB PCB (Interface Control Board) (900-400150R) - Communication & cashbox control board
  • CPU Main Board (900-400200R) - Core logic board for validation & operation
Cash Box & Housing Parts
  • Cash Box Door Latch & Lock (900-500100R) - Secure cashbox closure
  • Cash Box Transport Gear (900-200353R) - Drives note into cashbox
  • Top/Bottom Cover Housing (900-600100R, 900-600101R) - Protective outer casing
  • Mounting Bracket & Frame (900-600200R) - For terminal/kiosk installation
Electrical & Connection Parts
  • Power Harness & Connector Set (900-700100R) - 12VDC power & CCTalk interface cable
  • Fuse & Holder Kit (900-700200R) - Protects against power surges
  • CCTalk Communication Cable (900-700300R) - For host terminal integration
Applications
  • Self-service payment terminals
  • ATM & cash recycler machines
  • Vending & amusement machines
  • Lottery & gaming equipment
  • Retail self-checkout kiosks
  • Ticket & bill payment kiosks
