KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board
KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board
KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board
KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board
Specifications
Model Number :
KD20050-B61X
Model :
KD20050-B61X
MOQ :
1 Uint
Delivery Time :
It depends on the quantity of your order
Applicable Equipment :
ATM Kiosks, Self-Service Banking Terminals
Brand Name :
Fujitsu
Description :
F510 Dispenser Control Board Main PCB Controller Board
Packaging Details :
Carton / Pallet
Payment Terms :
T/T
Price :
Negotiable
Used for :
Fujitsu F510 Cash Dispenser
Supply Ability :
1,000 Units Per Year
Certification :
ISO9001
Warranty :
90 Days
Place of Origin :
PH
Brand :
Fujitsu
Description
KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board

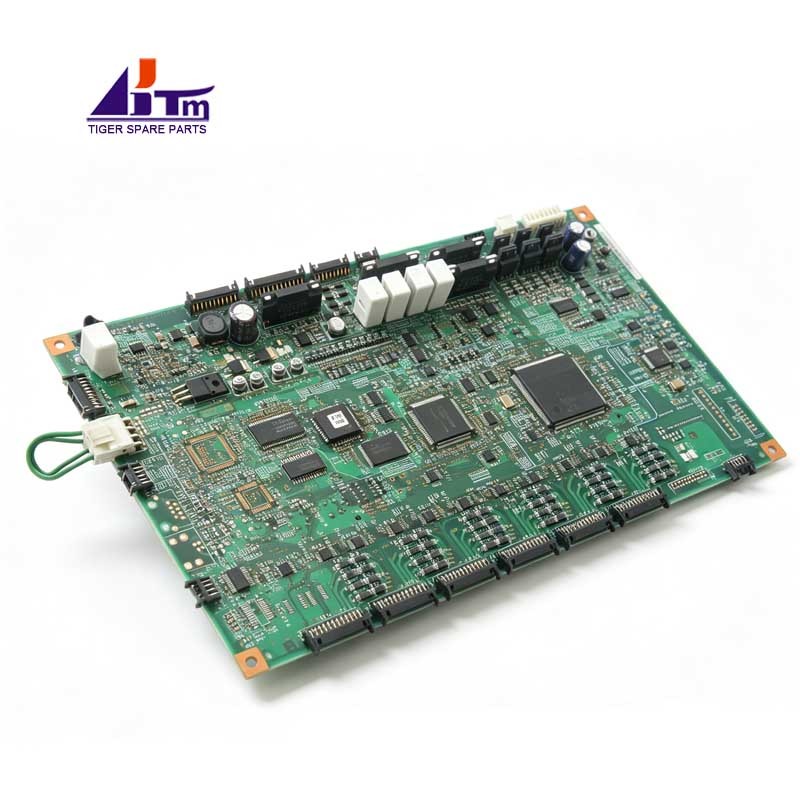

The KD20050-B61X Fujitsu F510 Dispenser Main Control PCB is the main controller board used in the Fujitsu F510 Cash Dispenser. It serves as a central electronic control component for the dispenser, coordinating communication between the dispenser's mechanical assemblies, sensors and other electronic components.

The part is specifically listed as the F510 Main Control PCB / Main Control Board and is used for the Fujitsu F510 cash dispenser. For ATM operators, service companies and spare-parts distributors, replacing the control PCB can be an efficient solution when the original board develops electronic faults or communication problems.

Product Specifications
Product Attribute Details
Product Name Fujitsu F510 Dispenser Main Control PCB
Part Number KD20050-B61X
Alternative Description F510 Dispenser Controller Board / Main Control Board
Brand Fujitsu
Compatible Model Fujitsu F510
Application F510 Cash Dispenser
Component Type Main Control PCB
Function Dispenser control and signal processing
Product Type ATM Spare Part / Electronic Component
Condition New Original
MOQ 1 Unit
Warranty 3 Months
Testing Tested by professional engineers before shipment
KD20050-B61X Fujitsu F510 Dispenser Control Board Main PCB Controller Board
Main Functions

The Main Control PCB is responsible for coordinating the operation of the cash dispenser's electronic and mechanical subsystems. Depending on the specific F510 configuration, its functions can include:

  • Controlling dispenser operating sequences
  • Processing signals from sensors
  • Coordinating feeder and transport mechanisms
  • Controlling dispenser motors and actuators
  • Managing communication between dispenser components
  • Supporting banknote dispensing and error detection
  • Monitoring dispenser operating status

A properly functioning controller board is essential for stable communication and coordinated operation of the F510 dispensing mechanism.

Related Fujitsu F510 Dispenser Parts

We can supply not only the KD20050-B61X Main Control PCB, but also a wide range of complete modules and replacement parts for the Fujitsu F510 dispenser.

Part Number Description
KD20050-B61X F510 Main Control PCB
KD11116-B103 F510 BDU with 1st Dispenser & PCB
KD03300-B252 F510 Dispenser Top Unit
KD03300-C501 F510 Dispense Unit - 1st Position
KD03300-C600 F510 Feeder Assembly - 1st Position
KD11070-C603 F510 Feeder Assembly - Bottom Position
KD03300-C601 F510 Feeder Assembly - Position 2-5
KD03300-C300 F510 Pool Unit
KD03300-C502 F510 Dispense Unit Frame - Position 2-5
KD03300-C400 F510 Presenter Unit
CA05805-D173 F510 Thickness Sensor Assembly
KD03300-C700 F510 Cash Cassette
KD49006-0055 F510 Shutter

These F510 components are listed together with the KD20050-B61X Main Control PCB in available Fujitsu F510 parts references.
