| JGB37-520 Micro Dc Gear Motor Description: |

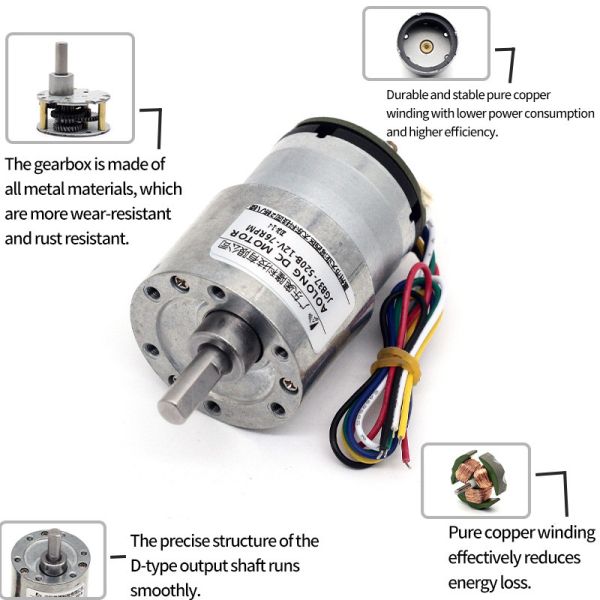

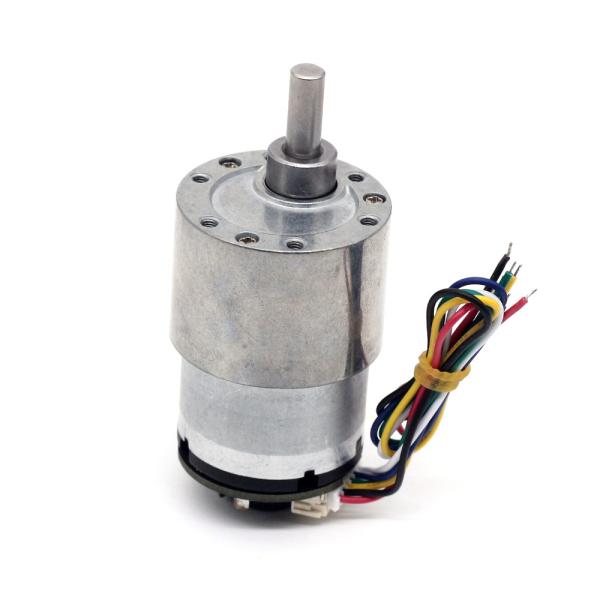

Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:
 |  |  |  |
| JGB37-520B | JGB37-3530 | JGB37-3157 | JGB37-3625 |
 |  |  |  |
| JGB37-3650 | JGB37-545 | JGB37-550 | ZGA37-3530 |
Specification:
Voltage: DC6V
No-Load Speed: 1000rpm, 600rpm, 300rpm, 200rpm, 100rpm, 70rpm, 45rpm, 35rpm,20rpm,12rpm,7rpm
Voltage: DC12V
No-Load Speed: 1590rpm, 1000rpm, 530rpm, 333rpm, 178rpm, 110rpm, 76rpm, 60rpm,37rpm,20rpm,12rpm
Error: ±5%
Output Shaft Diameter: 6mm D-type
Wirings:
Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)
White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))
Yellow Wire - signal feedback (motor one turn has 11 signals)
Green Wire - signal feedback (motor one turn has 11 signals)
Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong
Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong
Output Shaft Length: 14mm

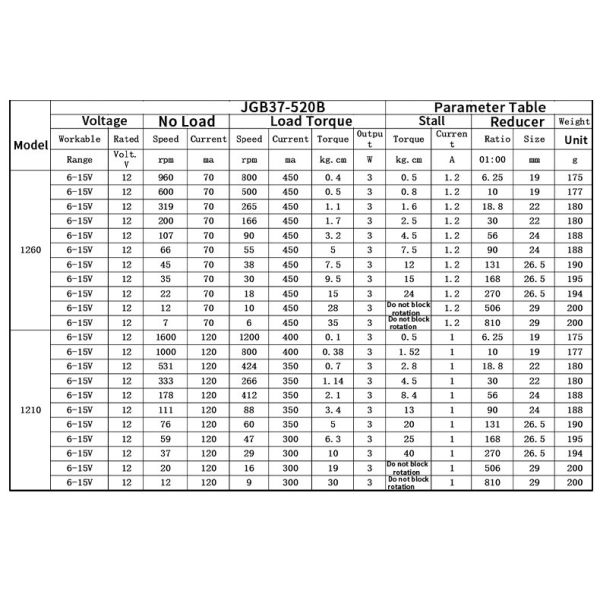

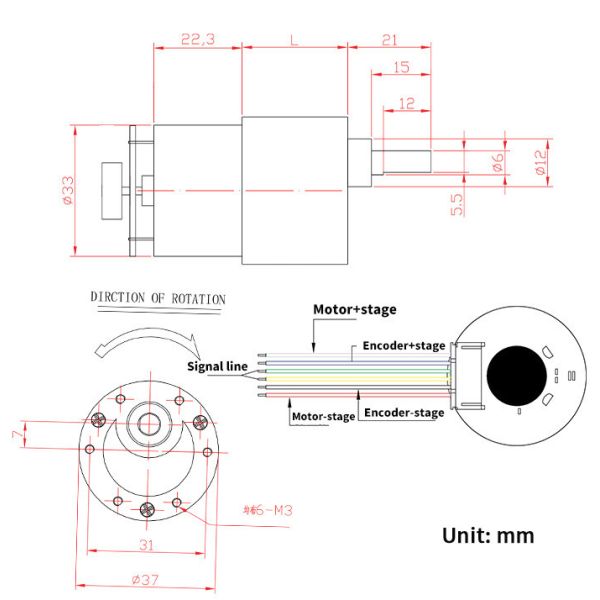

Gearbox Size Detal, please see the table
Wiring method:
