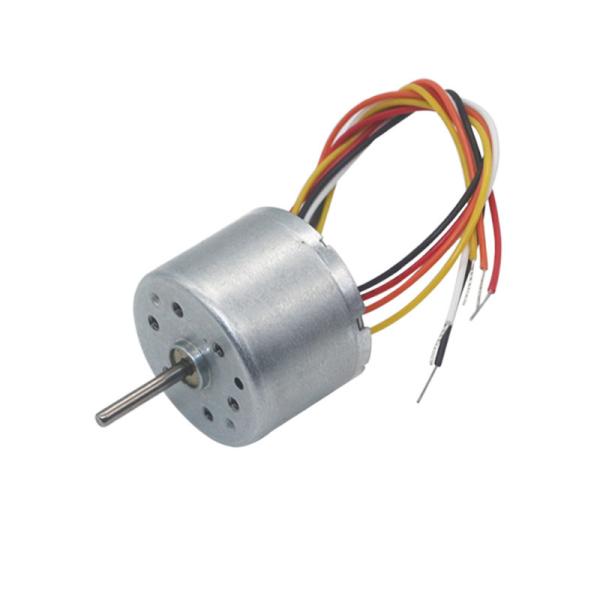

BLDC 2418 12v Small Brushless DC Motors 24v 8700rpm Permanent Magnet
BLDC2418 12v Brushless Motor 24v 8700rpm High Speed Small Size Long Life
Features:
Red line:motor +
Black line:motor -
Yellow line:signal motor 9 pulses per revolution
Blue line:0-5V voltage speed regulation
White:Forward and reverse lines(white and black wire connect motor negative is reverse)
Wiring method introduction
Black line : Connect DC power supply negative - (Prohibit errors)
Red line: Connect DC power supply positive + (Prohibit errors)
Yellow line: Signal line, the motor rotates one turn and output 18 pulse signals
White line: Duty cycle, pulse width speed regulation 15-25khz
Orange line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the orange line to the black line and the motor will change the direction of rotation immediately. ( Overcurrent protection 0.8A; once the current is exceeded, the motor will stop working immediately, and the motor can be re-run after the power is connected again.)
Introduction of the motor
1. The diameter of the shaft : 2mm
2. The length of the shaft : 21mm
3. Input voltage : DC 24V
4. No load speed : 8700 RPM/MIN
5. Load speed : 6610 RPM/MIN
6. Out power at maximum efficiency : 2.28W
7. Torque at maximum efficiency : 0.034 KG.CM
8. Direction of rotation of the motor : CW Or CCW ; Support Reversed
9. The type of bearing : Sleeve
10. The life of the motor : 10000 hours (Normal use)
11. The speed of the motor can be adjusted using the speed controller.
| Product title | Factory supply permanent magnet electronics driver board built in 12V 24V 24mm start voltage 5V DC brushless motor |
| Motor application | power tools electric drill electric hammer Cordless Electric Screwdriver power drill set |
| Motor Feature | High speed(3000rpm to 9000rpm) high efficient,low current consume,low noise,good quality |
| Product Keywords | Widely used for power tools electric drill electric hammer Cordless Electric Screwdriver power drill set,12v to 24v |
| Motor Alias name | dc engine,5v dc motor,brushless 6000rpm dc motor,0.02kgcm brushless dc motor 24v 1 phases bldc motor with hall and driver, EC brushless high speed motor for beauty massage |
DC motor table
| Model name | Rated voltage (VDC) | No load speed (RPM) | No load Current (N.m) | Rated Current (A) | Rated speed (with load) (RPM) | Suitable Gearbox (for each model) | Available Ratio of gearbox | Driver type |
| BEC2418-12 | 12 | 6500 | 0.002 | 0.04 | 5000 (no gear) | P22 Planetary gear G25 worm gear | 3-1000 | Built-in |
| BEC2418-24 | 24 | 8600 | 0.002 | 0.04 | 6000 (no gear) | W22 worm gear, P24 Planetary gear, | 3-1000 | inner Driver |
The following is a description of the quality materials and structures of this motor.

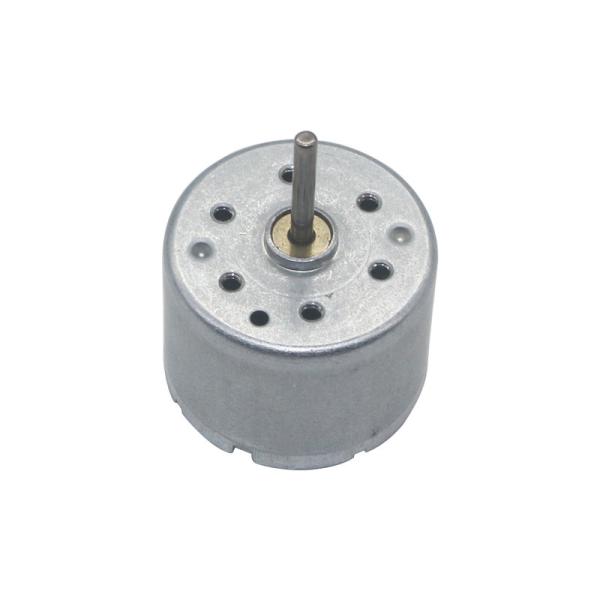

1. Motor center output shaft

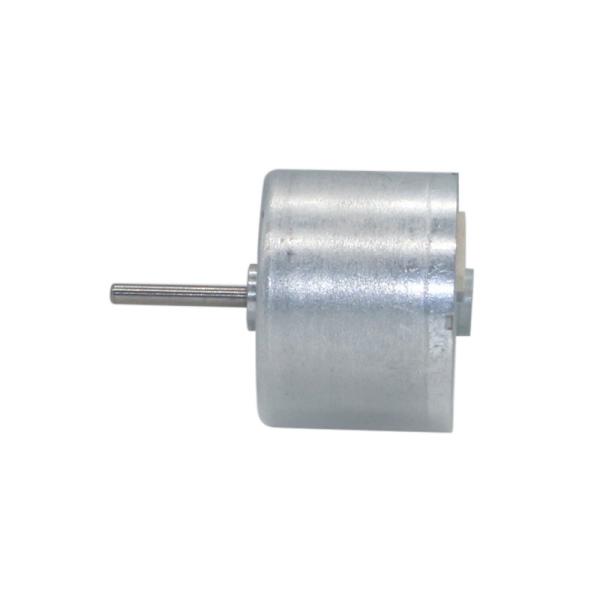

2. The internal structure of the motor
3. Bottom cover design

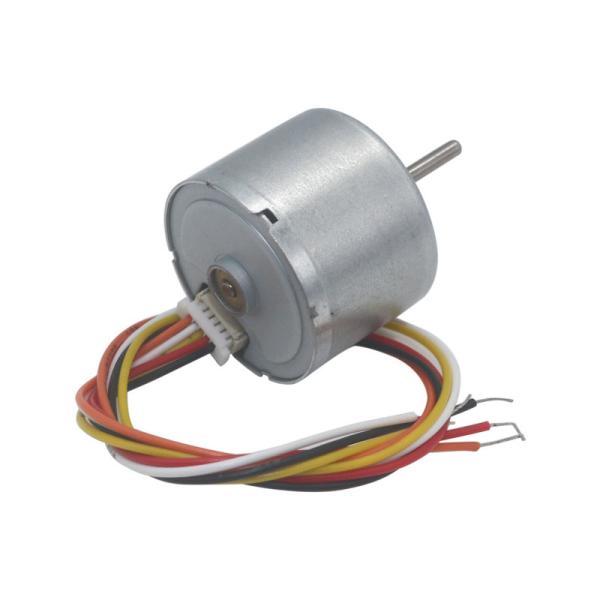

4. Line port
Typical Applications:
Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer.
Hair Care: Hair dryer, Electric hair clipper, massage instrument.
Office Equipment: Printer, Projector, Counting Machine,Shredder.
Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
