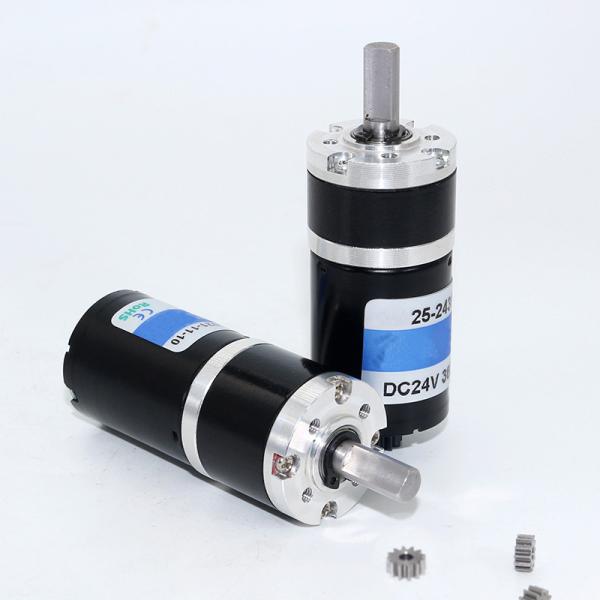

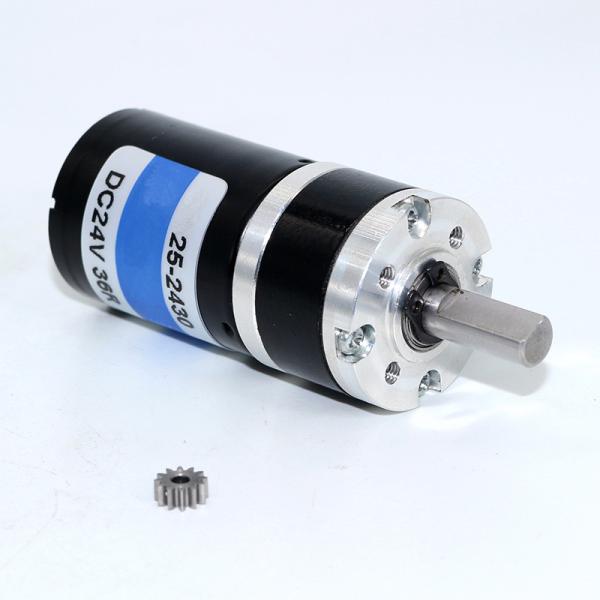

25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
Specifications
Brand Name :
Aslong
Model Number :
CM25-2430
Certification :
Rosh,CE
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
10000pcs/week
Delivery Time :
5-8Working days
Packaging Details :
bubble + carton
Usage :
Home Appliance,Electric Bicycle,Robot
Speed(rpm) :
18-1410rpm
Type :
Micro BLDC Planetary Motor
Protect feature :
Totally Enclosed
Torque :
0.43-21kg.cm
Voltage(v) :
12/24VDC
Product name :
12VDC Micro DC Planetary Gear Motor
Diameter :
25mm
Typical applications :
Electric Toy Model,Curtain
Shaft diameter :
4MM
Description

25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor

Brushless Dc Planetary Gear Motor, 25mm Micro High Torque Motor With Planetary Gear Head

25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor

Planetary gearbox Micro Dc Gear Motor Description:

Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:

25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor

PG36-3650

PG36-3625

 PG36-555

PG32-31ZY
25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor 25mm Brushless BLDC Planetary Gear Motor High Torque 24v DC Motor
PG28-385 PG28-2838 PG42-4260 PG45-4575

Specification:
Performance Range: Key Features: Typical Applications:
-Voltage: 12-24VDC -Metal/Carbon Brush -Electric Curtain
-Speed: 18-1400rpm -Low noise -Electric Valve
-Torque :0.43-21Kg.cm -CW/CCW Running -Safe and Locking
-Shaft: D shape (Motor shaft shape and length can be customized) -Long life -Robot
-Construction:Permanent Magnet -Small Size -Home Appliance,
-Commutation:Brushless DC motor -High Torque -Precise equipment

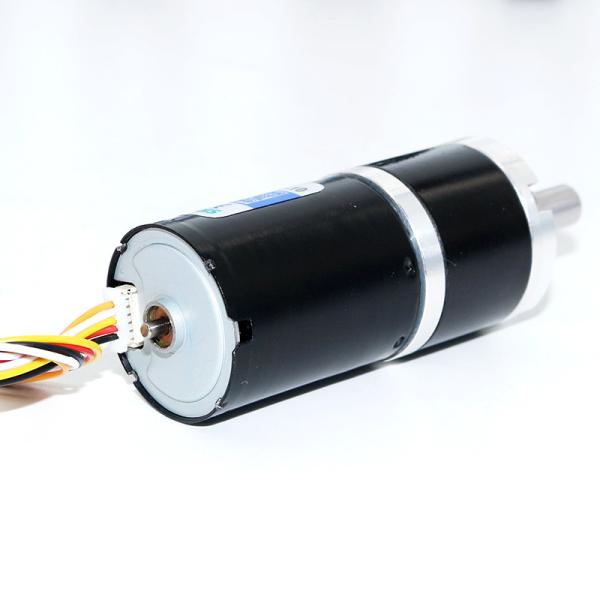

Wiring method:

Black:motor -

Red:motor +

Yellow:signal line(12 pulses per turn)

White:duty ratio. Pulse width speed regulation 15-25KHZ

Orange:reverse line(The default overcurrent protection is 0.8A)

Datasheet:
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A Kg.cm
CM25-2430 12-24V 12VDC 1411 0.36 888 0.85 0.43
12-24V 12VDC 333 0.18 227 0.76 1.26
12-24V 12VDC 79 0.18 55 0.8 5.5
12-24V 12VDC 18 0.16 14 0.83 21
Remarks: 　　　　　　　
1. Shaft dimension can be customized.　　　　　　
2. The Voltage can be 12V,24V; The DC Motor's speed is adjustable.　　　
3. This gearbox can matched with other DC Motor.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
