Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
Specifications
Brand Name :
PERWIN
Model Number :
PW-HGX210
Certification :
CE SGS ISO9001 TUV
Place of Origin :
Jiangsu China
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
5sets/month
Delivery Time :
60~90 working days
Packaging Details :
Export wooden cases
production name :
Test tube aseptic filling machine with vertical positioning labeling line
Filling Range :
10ml
Filling Method :
Peristaltic pump
Filling Accuracy :
±0.5~1%
Capacity :
20~30 bottles per minute
Condition :
New
Certificate :
CE, SGS, TUV, ISO9001
Warranty :
1 year
Price :
negotiable
Description

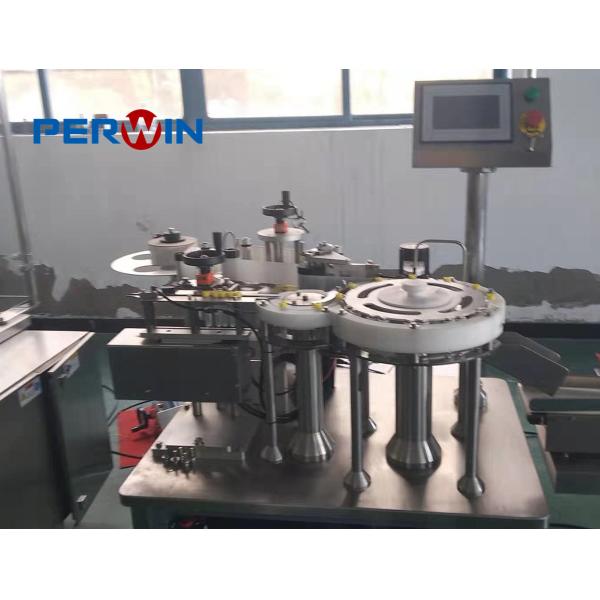

Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line

The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.

It is specially designed for 0.5~10ml tube bottles.

The features of production line

● Customers can choose peristaltic pump, plunger pump or other metering method according to their requirement.


● To avoid liquid bubbling and splashing, our filling nozzles can move up and down while working.


● The modular design makes it easier and more convenient to replace for other specifications of products.(like different shape,
volume of bottles etc.)


● The equipment mainly adopts the SUS304, Aluminum Alloy, non-toxic polymer material. Pharmaceutical grade polymer materials or 316L stainless steel are used for the filling needles. The whole production line meets GMP requirements.

The main parameters

Metering method Optional: plunger pump, peristaltic pump etc.
Package shape Tubular bottle
Filling volume According to customer’s product specification
Production speed 20~50(bottles/min)
Compressed air 0.4~0.8Mpa
Power supply 220V, 50HZ(Can be customized)

Test Tube Aseptic Filling Machine With Vertical Positioning Labeling Line
