SUS304 Material 0.55KW 3T/H Aseptic Filler For Mango Pulp Juice

Product Descripyion

Aseptic Bag In Box China Liquid Filling Machine For Mango Sauce
The filling machine is mainly divided into Aseptic filling machine and Ordinary filling machine .

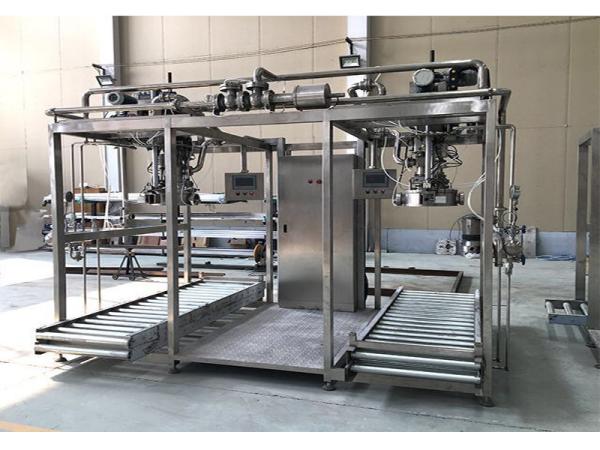

Aseptic filling machine is specially designed for large volume aseptic bag filling with the feature of small floor space covering, high stability and easy operation. Aseptic filler is widely used in aseptic packaging of liquid such as fruit juice, fruit pulp and jam. At room temperature, the product can be stored for more than one year, saving the cost and risk of cold storage transportation. The aseptic filling machine can be directly connected with the sterilizing machine, and the products after UHT sterilization can be directly filled in the aseptic bag. Aseptic bag is multi-layer aluminum plastic bag, which can effectively isolate sunlight and oxygen and ensure product quality to the maximum extent.

Feature and Advantage

Feature and Advantage for sing head aseptic filling machine.

• Main structure made of SUS 304 stainless steel.

• Italian technology and Euro-standard.

• Using Mirror welding tech to ensure tidy and smooth welding line.

• Separate control panel. PLC control and human machine interface.

• Mainly composed of aseptic filling head (single), operation system,

Computer controlling system, weight measurer and operation Platform and etc.

• Measurement tolerance: ±2% by flowmeter

• Valves and filler head protected by steam.

• Filling under aseptic circumstance.

• CIP and auto SIP available together with tube in tube sterilizer.

• Hydrogen peroxide protection in the filling process

• Filling record traceable by bar code

Specifications

Production Process

Production process for single head aseptic filling machine.

clamp bag→ clamp lid→ pullout lid→ screw lid→ filling chamber lifting→ filling valve lifting→ air cylinder lifting, etc.

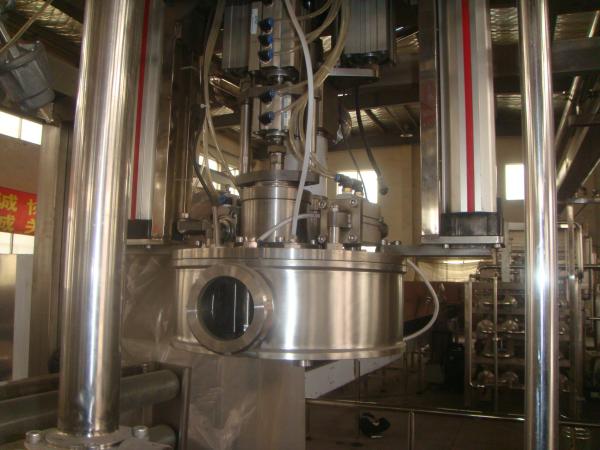

Different from ordinary filling machines , when the aseptic filling machine is filling the aseptic bag filler should fill material in the aseptic condition. So the aseptic circumstance is a very important rule. All the processes in aseptic bag filler, including clamp bag, clamp lid, pullout lid, screw lid, filling chamber lifting, filling valve lifting etc, all are in aseptic circumstance, to make sure the packing material and product material are in aseptic condition.
