Specifications
Brand Name :
QJ
Place of Origin :
Shanghai
MOQ :
>=
Payment Terms :
L/C, T/T
Packaging Details :
International standard package of your request
Item :
BIB filling machine
Filling head :
1
Voltage :
220V 50HZ Power≤0.38kw
Accuracy :
±0.5%
Brand :
QJ
Country of origin :
Shanghai
Description
Product Description

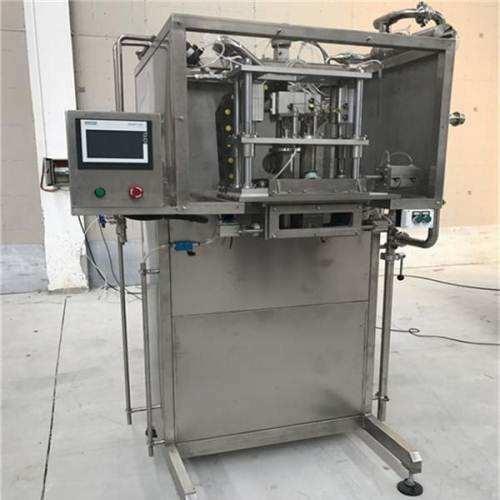

Bag In Box BIB Aseptic Filling Packaging Machine

* Various safety measures(position control, measuring control and temperature control) are provided so as to avoid mechanical damage and ensure product quality.
* Electromagnetic flow meter is adopted to control the filling volume.
* Mirror welding technology is adopted to ensure smoothand neat welding seam and reduce product residues.
* Equipped with small and large working platforms, suitable for packing products of different volumes.
* The moving parts of valve and filling head adopt steam screening protection. The filling chamber adopts steam sterilization.
* Programmable logic controller is adopted to realize automatic operation of the equipment.

Item
BIB filling machine
Aseptic bag filling machine
Filling head
1
1 or 2
Voltage
220V 50HZ Power≤0.38kw
Accuracy
±0.5%
Capacity
180-220bag/h(3-5L)
15-30bag/h(220L)
Air consumption
0.7Mpa 0.1m³/min
0.7Mpa 0.4m³/min
Steam consumption
/
0.3Mpa 50kg/h

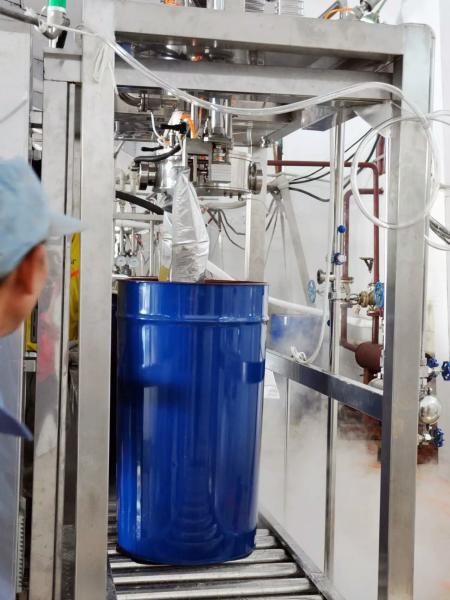

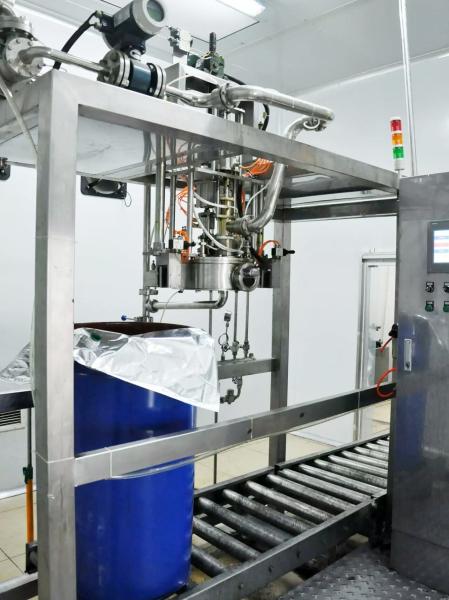

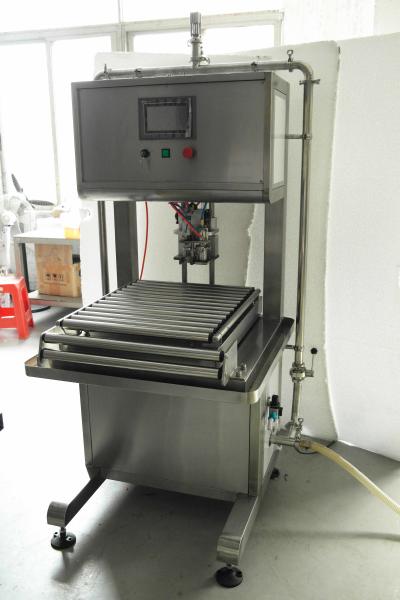

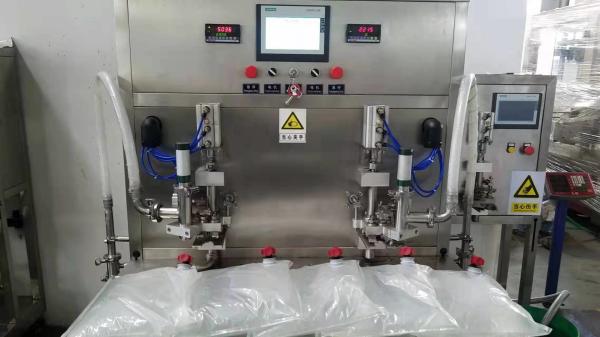

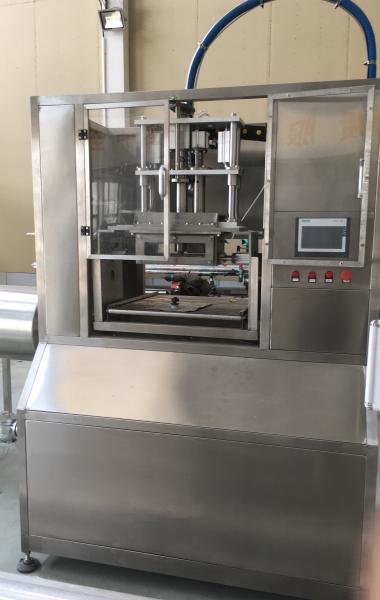

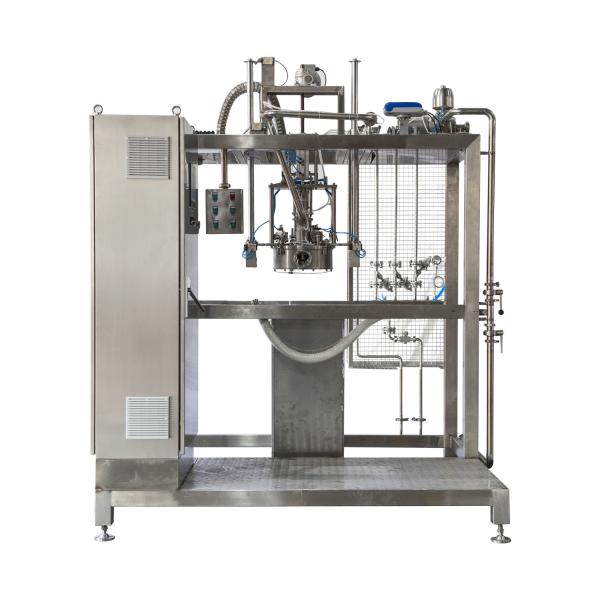

Detailed Images
